Home >> Kia >> 2023 >> Soul EX >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery System >> Battery Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF.

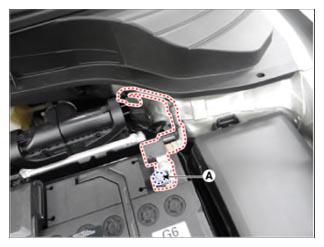

  2. Disconnect the battery negative (-) terminal (A).

    Tightening torque

    8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb.ft)

    G15715943Courtesy of KIA MOTORS AMERICA, INC.

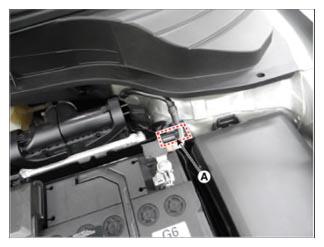

  3. Disconnect the battery sensor connector (A).
    G15715944Courtesy of KIA MOTORS AMERICA, INC.

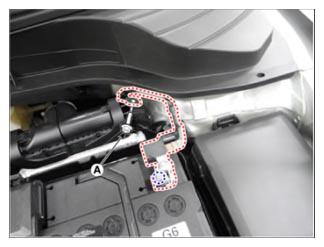

  4. Remove the battery sensor by loosening the mounting bolt (A).

    Tightening torque

    27.0 - 33.0 N.m (2.8 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

G15715945Courtesy of KIA MOTORS AMERICA, INC.
