Repair Procedures: Inspection

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the fuse box cover.

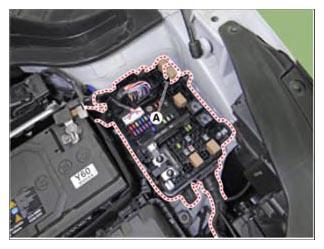

  3. Remove the starter relay (A).
    G15694423Courtesy of KIA MOTORS AMERICA, INC.
  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30-87 1 MΩ or more If there is continuity between the terminals, replace the relay.
    G15694424Courtesy of KIA MOTORS AMERICA, INC.
  5. Apply 12V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30-87 1Ω or less If there is no continuity between the terminals, replace the relay.
    G15694425Courtesy of KIA MOTORS AMERICA, INC.
  6. Install the starter relay.
  7. Install the fuse box cover.
