Components & Components Location: Components

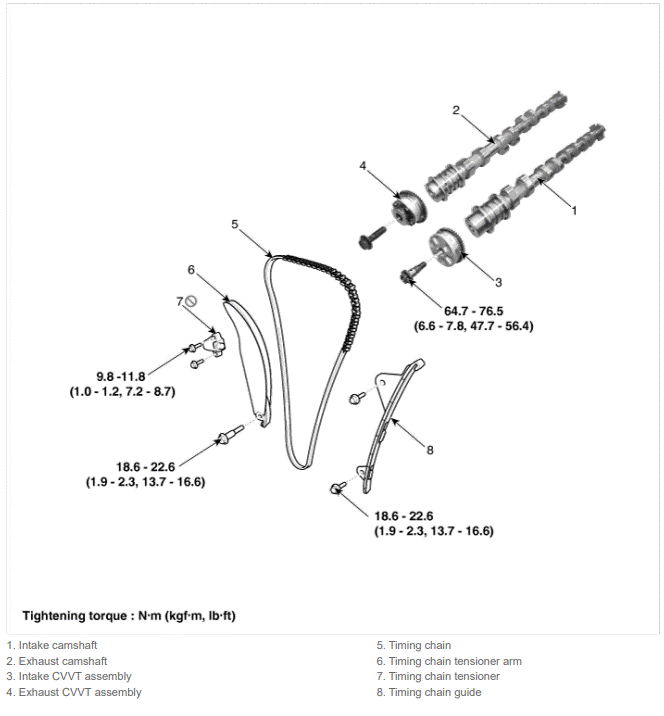

Fig 1: Timing Chain Components Location With Torque Specifications

G15694303

Courtesy of KIA MOTORS AMERICA, INC.
