Repair Procedures: Cleaning

  1. Remove the ETC module.

    (Refer to ETC (Electronic Throttle Control) System - "REMOVAL ")

    NOTE: Cleaning the ETC module after removing it.
  2. Clean the pollutant in the throttle body using a soft cloth moistened with cleaning fluid.

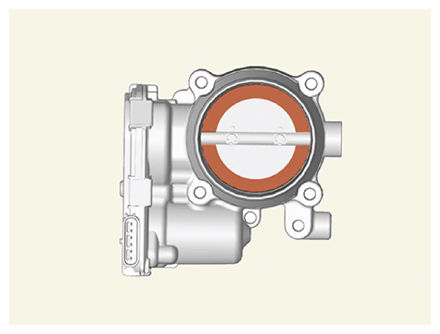

    G14990763Courtesy of KIA MOTORS AMERICA, INC.

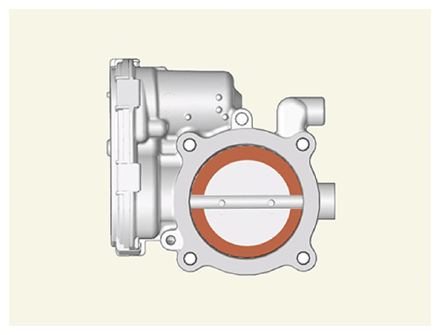

    G14990764Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Do not spray cleaning fluid to ETC module directly and use a lint free cloth moistened by cleaning fluid.
    • Be careful not to wipe the coating fluid around the shaft for preventing faulty controlling idle by flow contaminant into shaft internal bearing and excessive leakage air.
  3. Install the ETC module.

    (Refer to ETC (Electronic Throttle Control) System - "INSTALLATION ")

  4. Reset the ECM adaptive values after replacing the ETC module.

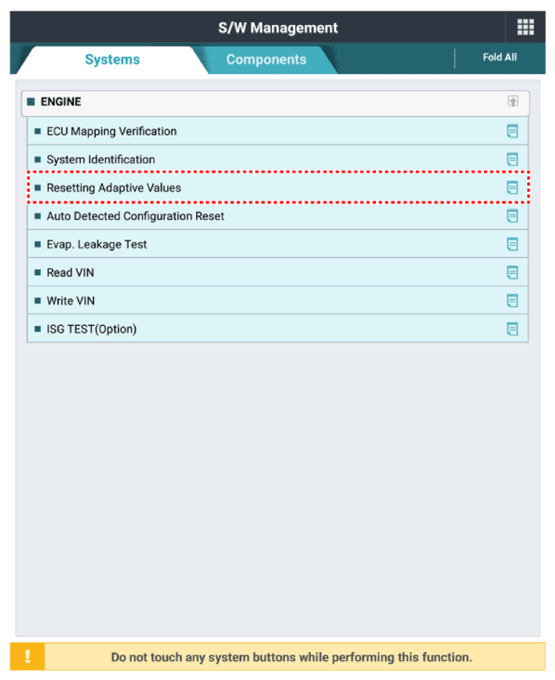

    G14990765Courtesy of KIA MOTORS AMERICA, INC.
  5. Perform the ETC learning procedure.

    (Refer to ETC (Electronic Throttle Control) System - "ADJUSTMENT ")
