Tailgate Outside Handle Switch
- Remove the tailgate lid lower trim.
(Refer to Body - "TAILGATE LID TRIM ")
- Check for continuity between the terminals.

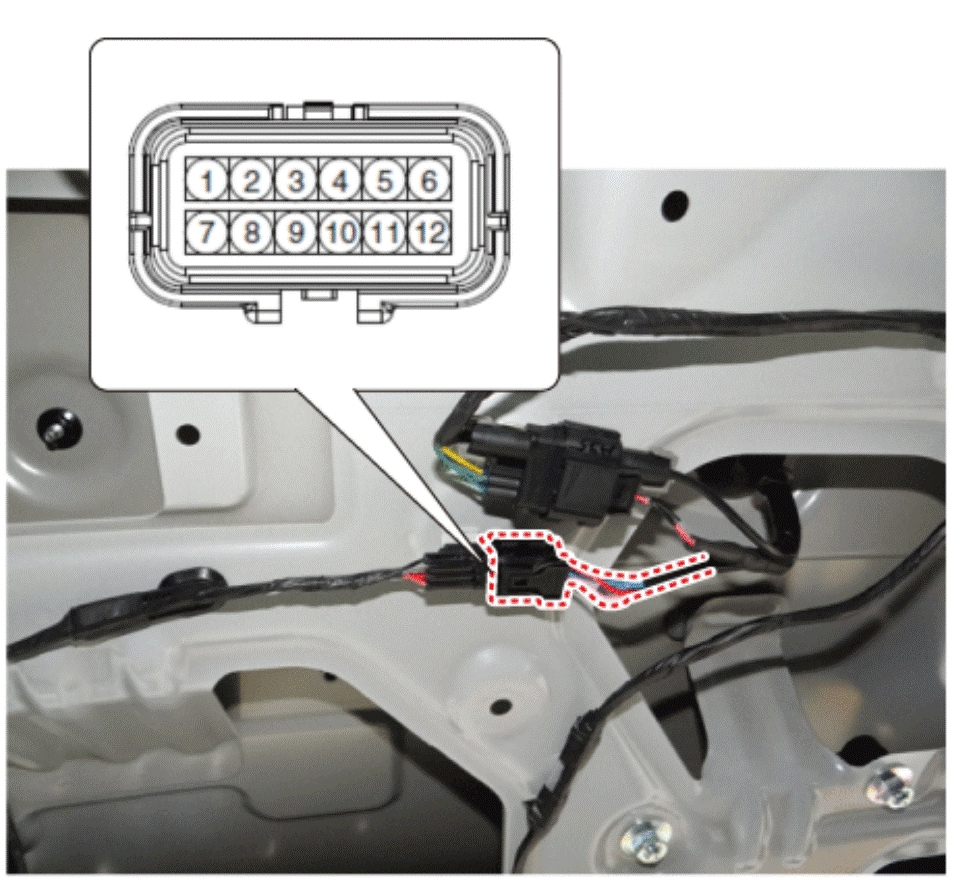

[Without SVM]
| Terminal | Function | |
|---|---|---|
| Switch OFF | Switch ON | |
| 7 - 9 | No continuity | Continuity |

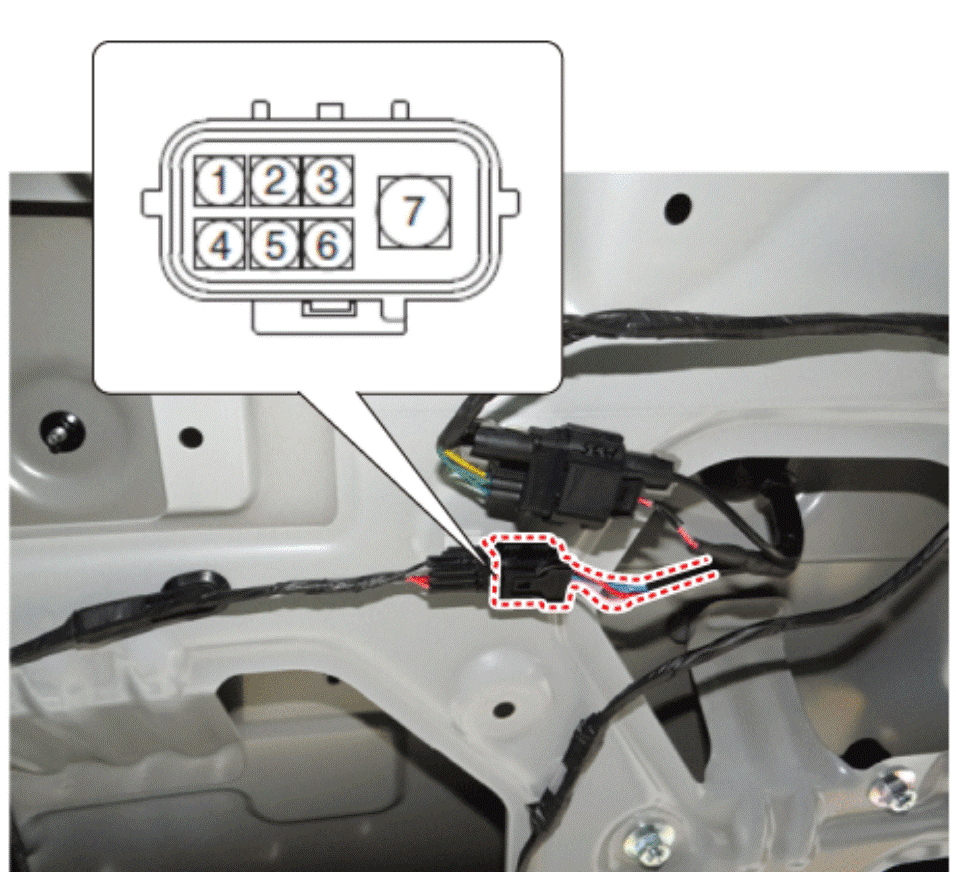

[With SVM]
| Terminal | Function | |
|---|---|---|
| Switch OFF | Switch ON | |
| 1 - 4 | No continuity | Continuity |
