Connector And Terminal Function
>>

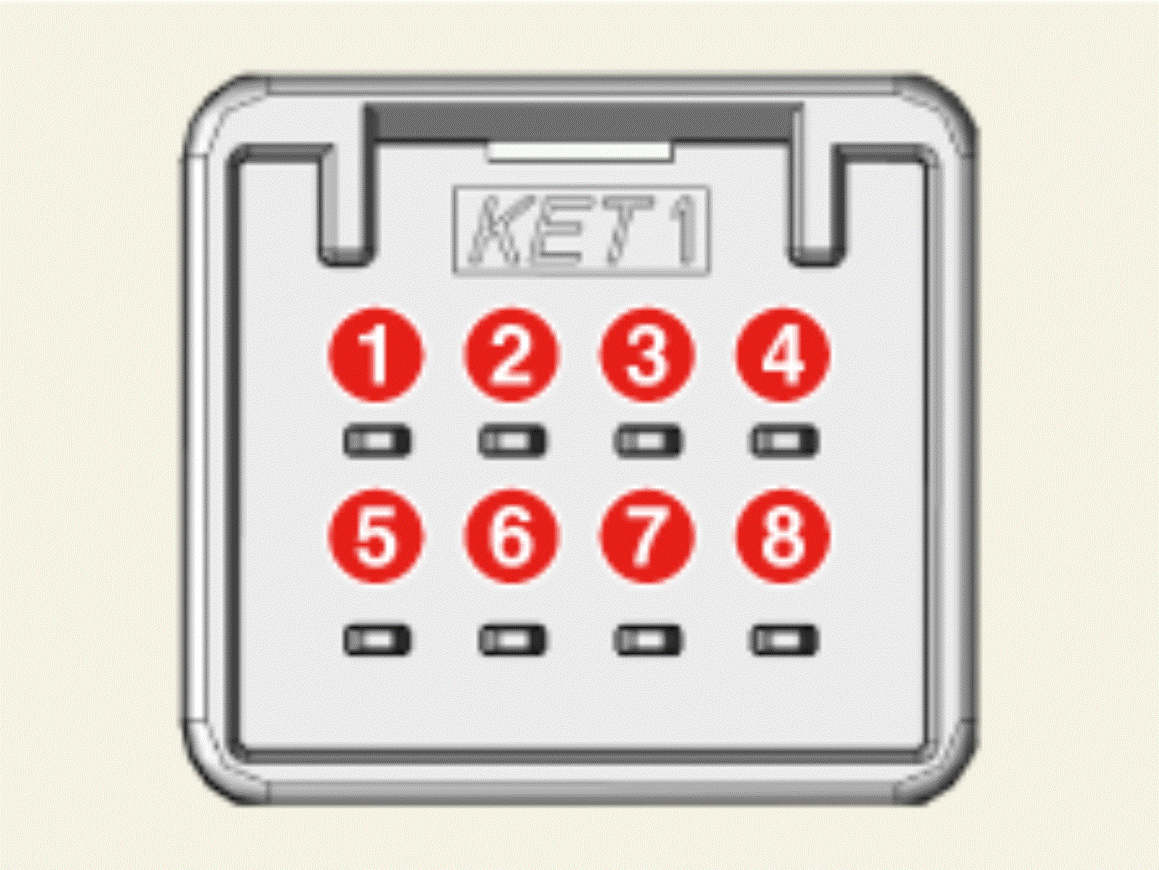

Passenger Power Window Switch
Passenger Power Window Switch
Courtesy of KIA MOTORS AMERICA, INC.
Pin
Function
1
Illumination (-)
2
Door lock switch
3
Door unlock switch
4
Illumination (+)
5
Ground
6
-
7
Safety power window switch
8
-
