Starter Relay: Inspection

  1. Disconnect the battery negative (-) terminal.

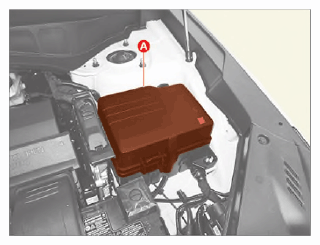

  2. Remove the engine room junction block cover (A).
    G15693207Courtesy of KIA MOTORS AMERICA, INC.

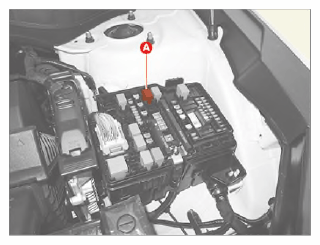

  3. Remove the starter relay (A).
    G15693208Courtesy of KIA MOTORS AMERICA, INC.

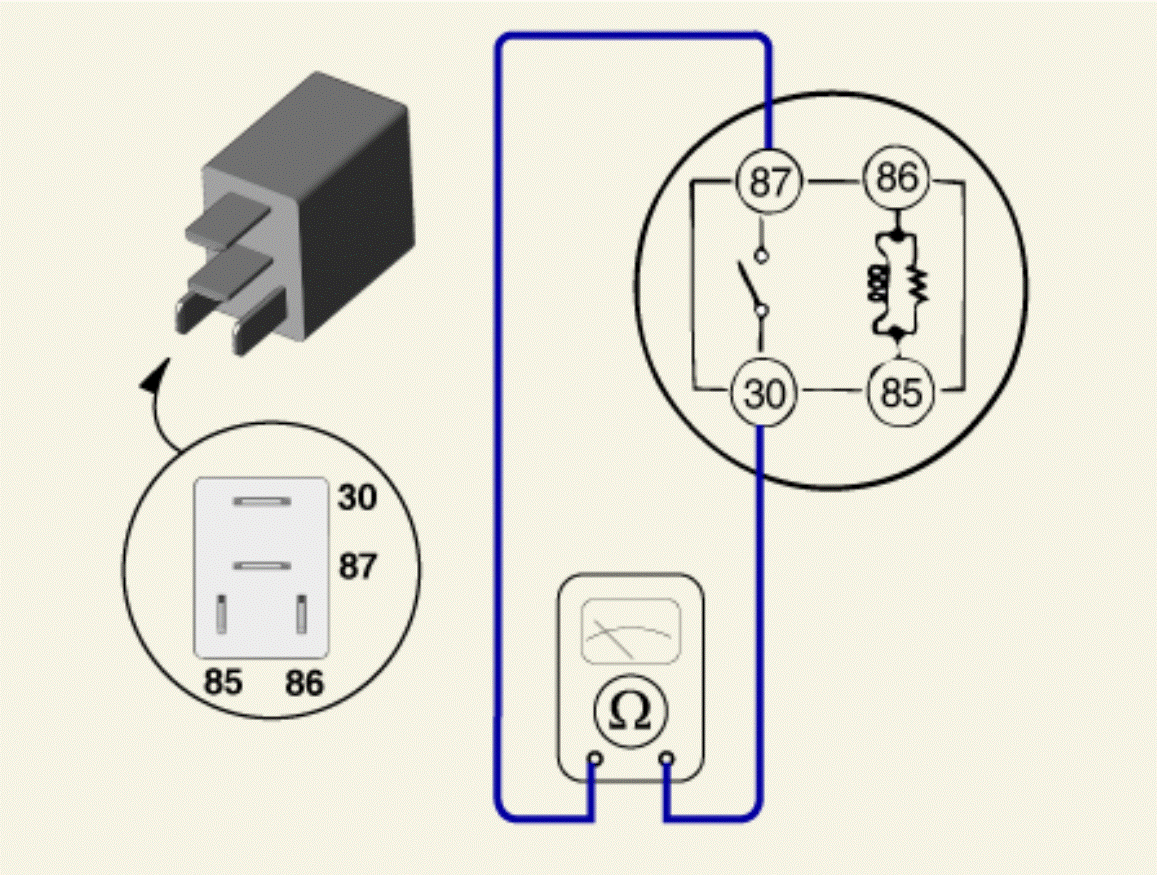

  4. Check for continuity between the terminals (30 and 87) using an ohmmeter.
    Terminal Resistance Measure
    30 - 87 1 MΩ or higher If there is continuity between the terminals, replace the relay.
    G15693209Courtesy of KIA MOTORS AMERICA, INC.

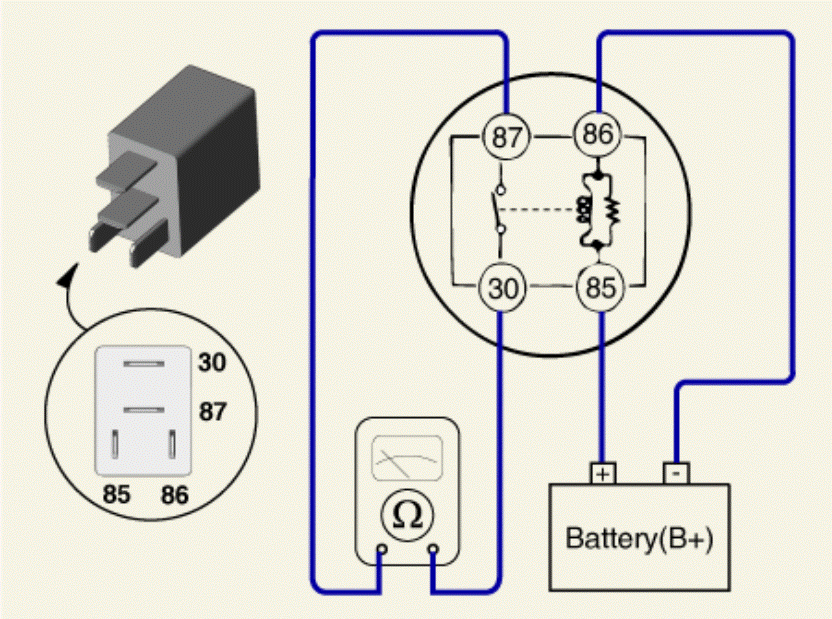

  5. Apply 12 V to the terminal 85 and ground to the terminal 86 and then check for continuity between the terminals (30 and 87).
    Terminal Resistance Measure
    30 - 87 1 Ω or less (About 0 Ω) If there is no continuity between the terminals, replace the relay.
    G15693210Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in reverse order of removal.
