Removal & Installation: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

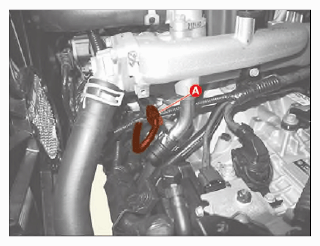

  3. Disconnect the Crankshaft Position Sensor (CKPS) connector (A).
    G15693282Courtesy of KIA MOTORS AMERICA, INC.
  4. Separate the CKPS (A) from the bracket by pushing it in the direction of the arrow.
    G15693283Courtesy of KIA MOTORS AMERICA, INC.

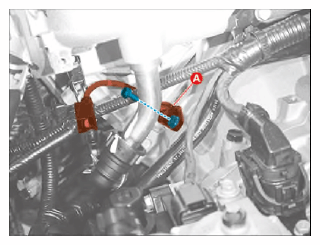

  5. Remove the CKPS (A) after removing the bolt.

    Tightening torque:

    6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

G15693284Courtesy of KIA MOTORS AMERICA, INC.
