Removal & Installation: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

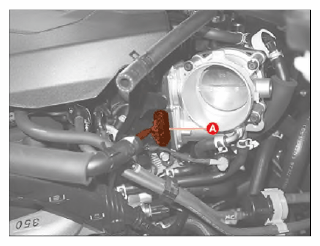

  3. Disconnect the Electronic Throttle Control (ETC) module connector (A).
    G15693303Courtesy of KIA MOTORS AMERICA, INC.

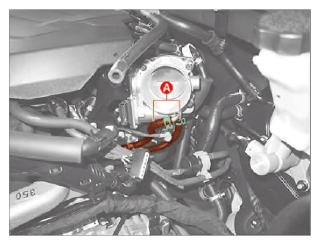

  4. Separate the hoses (A) by releasing the clamp.
    G15693304Courtesy of KIA MOTORS AMERICA, INC.

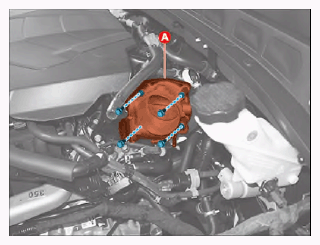

  5. Remove the ETC module (A) after removing the bolts.

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

G15693305Courtesy of KIA MOTORS AMERICA, INC.
