Repair Procedures: Adjustment

TCM adaptive values learning

• TCM adaptive values learning: When shift shock occurs or parts related with the automatic transaxle are replaced, TCM learning should be performed.
• In the following case, TCM learning is required.

• Automatic transaxle assembly replacement
• TCM upgrade or replacement

TCM adaptive values learning procedure:  Repeat the above procedure at least three times as shown in the pattern of illustration below.

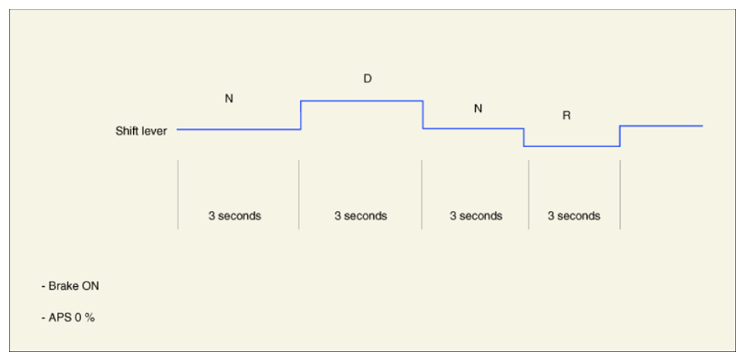

• Static relearn (condition: ATF temperature 35 - 95°C (95 - 203°F)

  Courtesy of KIA MOTORS AMERICA, INC.

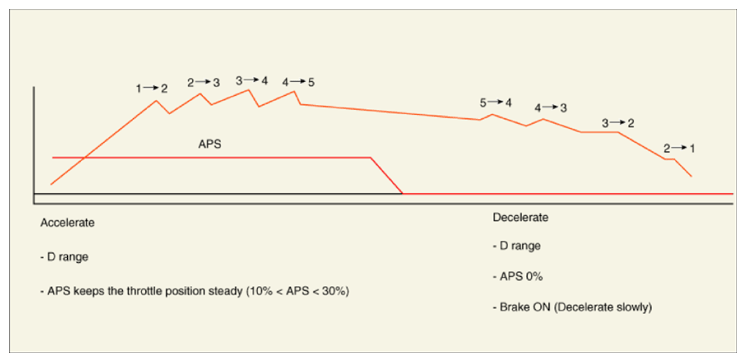

• Driving relearn

Courtesy of KIA MOTORS AMERICA, INC.
