Repair and Diagnosis: Electrical: Horns: Inspection

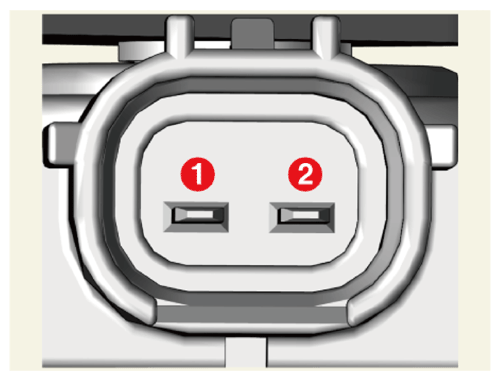

- Apply battery voltage to terminal 1 (ground) and terminal 2 (battery+) and verify that it operates.
- Check fuse and relay.
Information
- The semi-conductor type relay inserted in the PCB is impossible to replace. If the relay needs to be replaced, replace the metal core box and conduct a test on it.
(Refer to Fuses And Relays - " ENGINE ROOM JUNCTION BLOCK ")
- The semi-conductor type relay inserted in the PCB is impossible to replace. If the relay needs to be replaced, replace the metal core box and conduct a test on it.
