Wheel Alignment: Alignment: Adjustment: Front: Kingpin
The king pin angle cannot be adjusted. If the measured caster exceeds the standard limit, repair or replace the relevant parts and inspect the wheel alignment again.
King ping angle:
2WD: 13.8° ± 0.5°
4WD: 13.6° ± 0.5°
 Courtesy of KIA MOTORS AMERICA, INC.
|

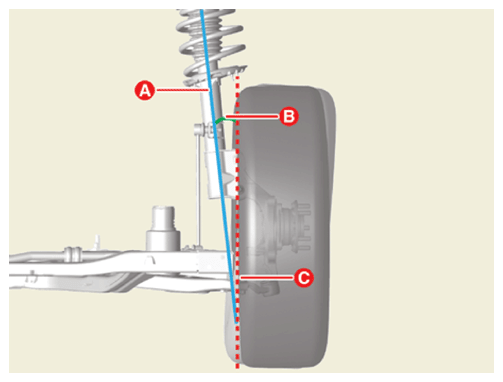

| Item |
Description |
| A |
Strut center line |
| B |
Kingpin |
| C |
Center line |
