Transfer Oil: Replacement

Remove the engine room under cover.
G 1.6 T-GDI GAMMA II (Refer to Engine Mechanical System - " 1.6L ENGINE ROOM UNDER COVER ")

G 2.0 MPI NU (Refer to Engine Mechanical System - " 2.0L ENGINE ROOM UNDER COVER ")

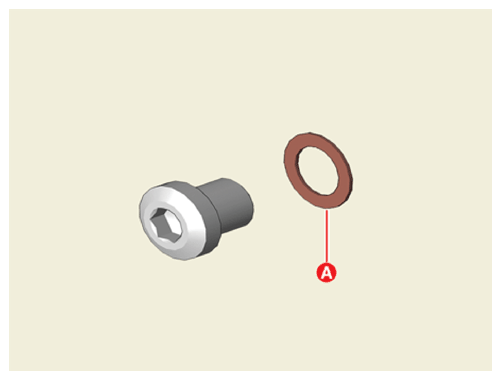

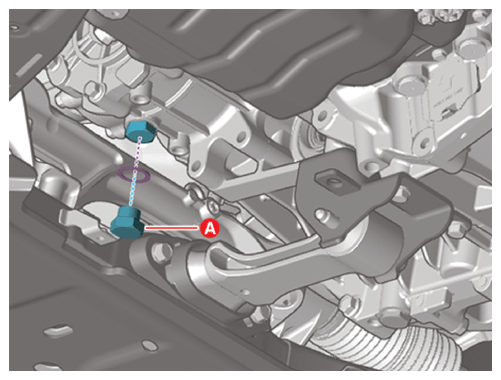

Remove the drain plug (A) and drain transfer oil, and then reinstall the drain plug (A).

Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Do not reuse the drain plug gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

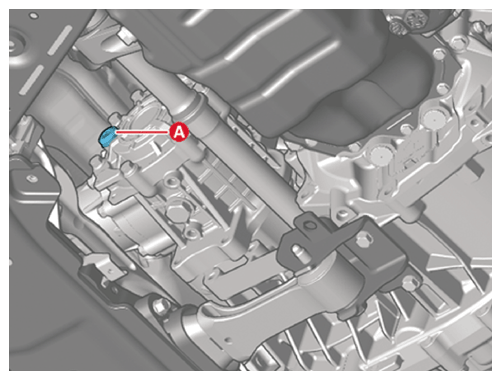

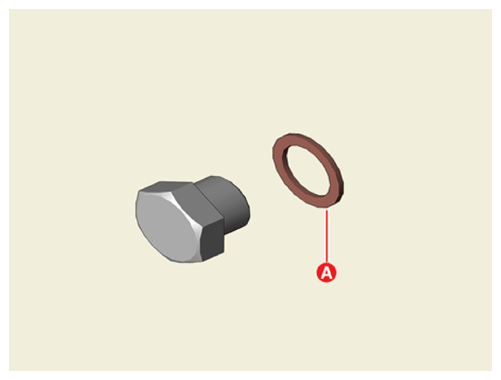

Remove the filler plug (A) and refill with oil.
Capacity:

Fill to the bottom of the oil filler hole

Recommended:

Hypoid gear oil API GL-5 SAE 75W/85 (SK HCT-5 gear oil 75W/85) or equivalent

Courtesy of KIA MOTORS AMERICA, INC.

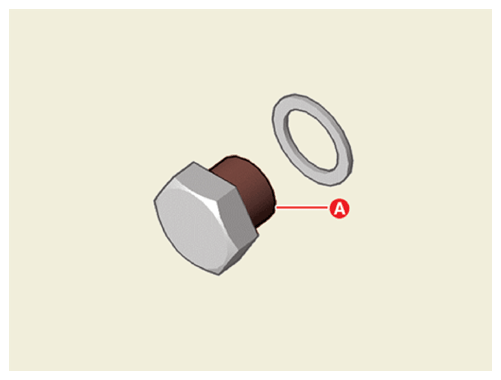

Install the filler plug (A).
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the filler plug gasket (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the engine room under cover.
G 1.6 T-GDI GAMMA II (Refer to Engine Mechanical System - " 1.6L ENGINE ROOM UNDER COVER ")

G 2.0 MPI NU (Refer to Engine Mechanical System - " 2.0L ENGINE ROOM UNDER COVER ")
