Fuel Delivery System: Injector: Replacement: Replacement

The injector combustion seal should be replaced with a new one to prevent leakage after removing the injector.

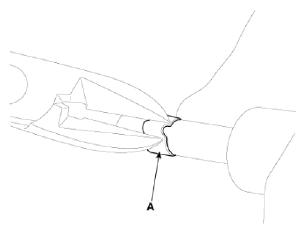

1. Remove the combustion seal (A) with a wire cutter.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • Lightly pinch the sealing ring into a small loop and then cut it.
   • Be careful not to damage the surface of the valve sleeve with the wire cutter.

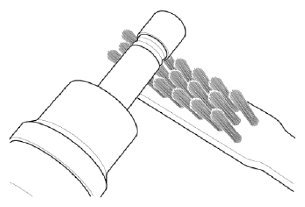

2. Before assembling the sealing ring, clean the groove with a clean cloth.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE:

   • The surfaces of the new sealing ring must be clean and free of grease.
   • Any coking of the injector sealing surface must be carefully removed with a brass-wire brush.
3. Place the seal installing guide (B) (09353 - 2B000) on the tip of the injector to prevent damaging the injector tip (A).

   Push the sealing ring (C) with thumb and index finger over the conical assembly tool until it snaps into the groove.

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: The complete assembly must not take longer than 2 to 3 seconds.
4. To measure the size of the sealing ring, insert the injector into the sizing tool (A) (09353-2B000). Then, rotate it 180° while pressing it into the sizing tool.

   Courtesy of KIA MOTORS AMERICA, INC.

5. Pull the injector out of the sizing tool by turning it in the reverse direction of the press-in process.
   NOTE:

   • Check that the seal ring has not been damaged during assembly by the injector and that no circumferential scratches are present.
   • Do not reuse the combustion seal.
   • The seal must be completely free of grease and oil.
6. Check the combustion seal (A) installation.

Courtesy of KIA MOTORS AMERICA, INC.
