Tailgate Outside Handle Switch

  1. Remove the tailgate lid lower trim.

    (Refer to Body - " TAILGATE LID TRIM  ")

  2. Check for continuity between the terminals.

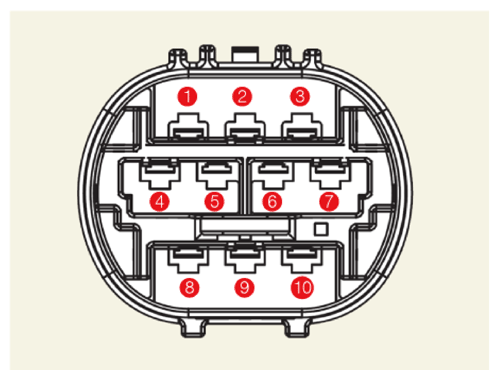

    [Type A]

    G16426191Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    Switch OFF Switch ON
    3 - 4 No continuity Continuity

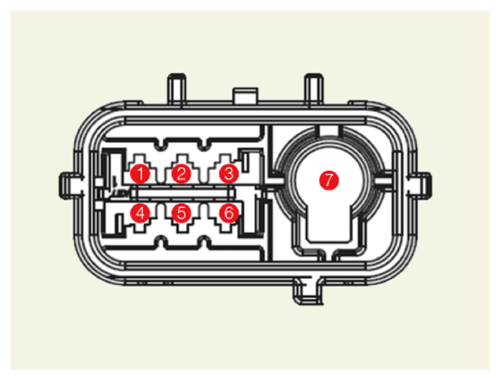

    [Type B]

    G16426192Courtesy of KIA MOTORS AMERICA, INC.
    Terminal Function
    Switch OFF Switch ON
    3 - 4 No continuity Continuity
