Connector And Terminal Function

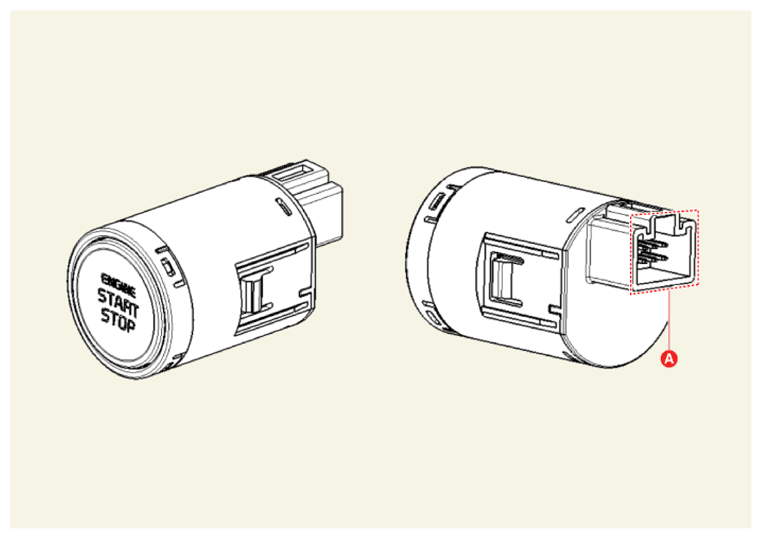

G16425838Courtesy of KIA MOTORS AMERICA, INC.
Connector A Terminal Function
G16425839Courtesy of KIA MOTORS AMERICA, INC.
 1 SSB Switch 1
2 -
3 SSB Illumination (+)
4 Immobilizer (Power)
5 -
6 Ground
7 SSB Switch 2
8 Illumination (-)
9 -
10 Immobilizer (Ground)
