Home >> Kia >> 2025 >> Seltos X-Line >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Engine Coolant Temperature Sensor (ECTS) >> Removal And Installation >> Installation

Removal And Installation: Installation

  1. Install in reverse order of removal.
    NOTE:
    • Install the Engine Coolant Temperature Sensor (ECTS) to the specified torque.
    • If the ECTS is dropped, it may cause internal damage. (Do not reuse)
    • Apply the engine coolant to the O-ring.

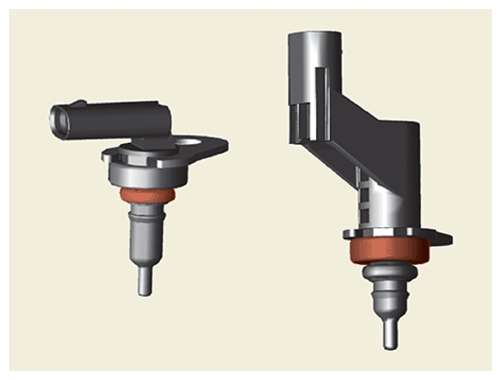

      G16423634Courtesy of KIA MOTORS AMERICA, INC.
    • Install the ECTS by pushing it into the mounting hole when installing it. At this time do not impact the sensor.
  2. Refill with coolant.

    (Refer to Engine Mechanical System - " COOLANT  ")
