Component Inspection
- Check the coolant temperature by using the KDS.

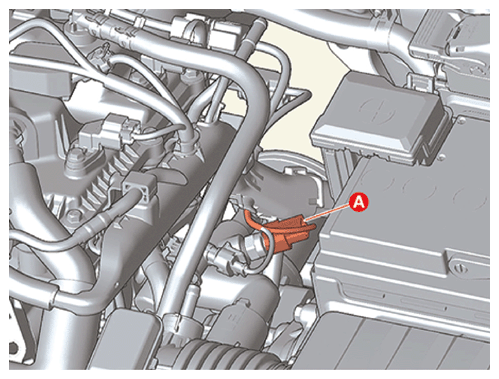

- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
- Measure resistance after disconnecting the ECTS connector.
| Temperature | Resistance (KΩ) | |
|---|---|---|
| °C | °F | |
| -40 | -40 | 48.14 |
| -20 | -4 | 14.13 - 16.83 |
| 0 | 32 | 5.79 |
| 20 | 68 | 2.31 - 2.59 |
| 40 | 104 | 1.148 |
| 60 | 140 | 0.5865 |
| 80 | 176 | 0.3222 |
| 100 | 212 | 0.1884 |
| 110 | 230 | 0.1451 - 0.1473 |
| 120 | 248 | 0.1163 |
