Removal And Installation: Removal

  1. Disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - " ENGINE COVER  ")

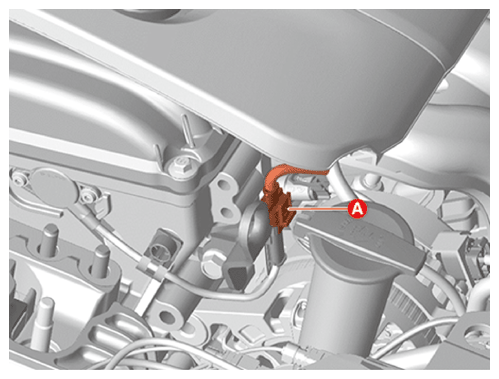

  3. Disconnect the intake middle lock control solenoid connector (A).
    G16427130Courtesy of KIA MOTORS AMERICA, INC.

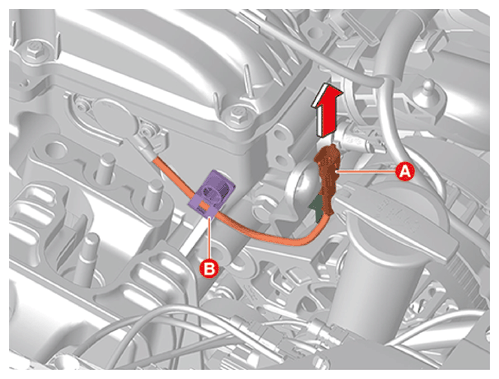

  4. Separate the connector (A) from the bracket and separate the fixing holder (B).
    G16427131Courtesy of KIA MOTORS AMERICA, INC.

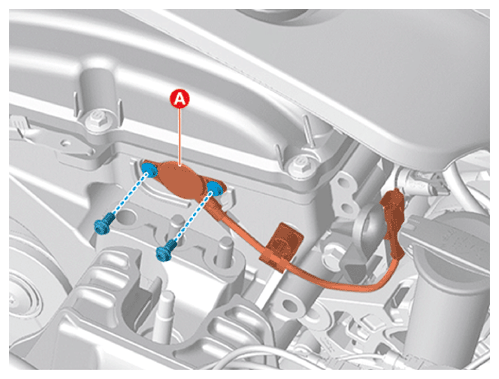

  5. Remove the intake middle lock control solenoid (A) after removing the screws.

    Tightening torque:

    8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)

    G16427132Courtesy of KIA MOTORS AMERICA, INC.
