Spark Plug: Troubleshooting

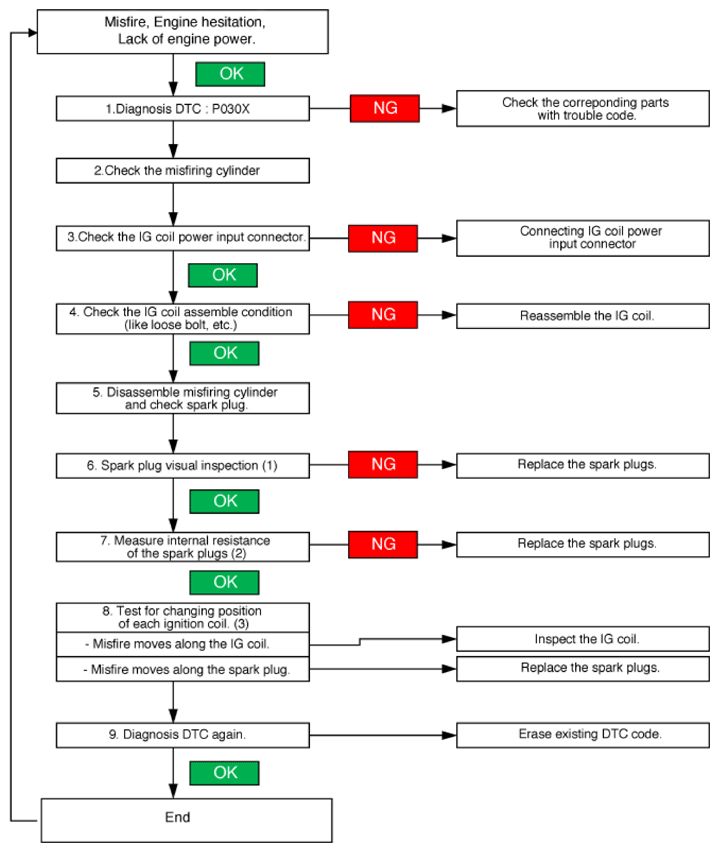

Check the DTC code by using the KDS (Refer to DTC INDEX ).

Courtesy of KIA MOTORS AMERICA, INC.

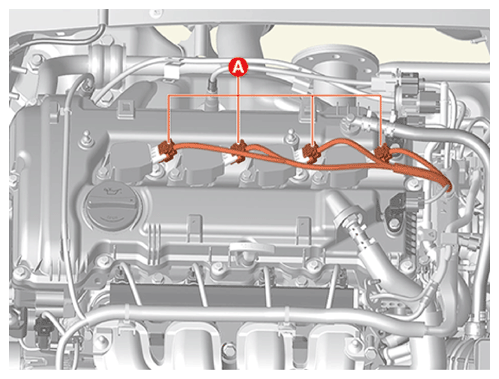

Check the ignition coil connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

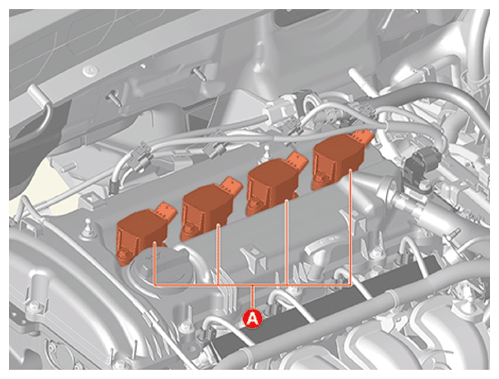

Check the installation condition of the ignition coils (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the spark plug.
(Refer to Spark Plug - "REMOVAL AND INSTALLATION ")

Visually inspect the external spark plugs.

Spark plug gap [mm (in.)]: 0.8 - 0.9 (0.0314 - 0.0354)

Symptom	Suspected Cause	Correction
Courtesy of KIA MOTORS AMERICA, INC. Melting Electrode	Abnormal Combustion, Overheat	Replace the Spark Plug
Courtesy of KIA MOTORS AMERICA, INC. Carbon and Foreign Matter	Abnormal Combustion, Overheat
Courtesy of KIA MOTORS AMERICA, INC. Ring Crack	Abnormal Combustion, External Shock
Courtesy of KIA MOTORS AMERICA, INC. Vertical Crack	External Shock
Courtesy of KIA MOTORS AMERICA, INC. Overheat	Abnormal Combustion

Symptom	Suspected Cause	Correction
Courtesy of KIA MOTORS AMERICA, INC. Poor Gap	Physical Damage	Replace the Spark Plug
Courtesy of KIA MOTORS AMERICA, INC. Flash Over	Excessive Electrode Wear	Replace the Spark Plug, Ignition Coil
Courtesy of KIA MOTORS AMERICA, INC. Corrosion/Rust	Remaining Oil Mist	Reassemble the Spark Plug

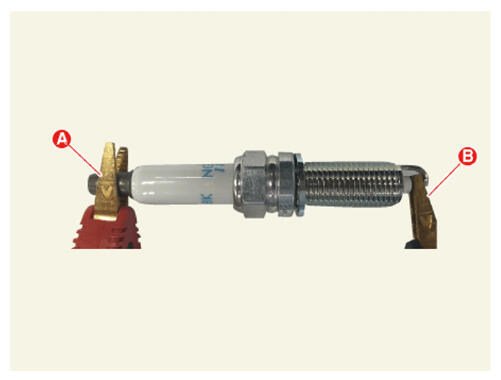

Check the resistance between the spark plugs terminal (A) and probe (B) by using a multi-tester or a resistance meter.

Specified value: 2 - 20 kΩ

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Avoid the contact resistance between probe and spark plugs (when it occurs, the measured value is not stabilized).

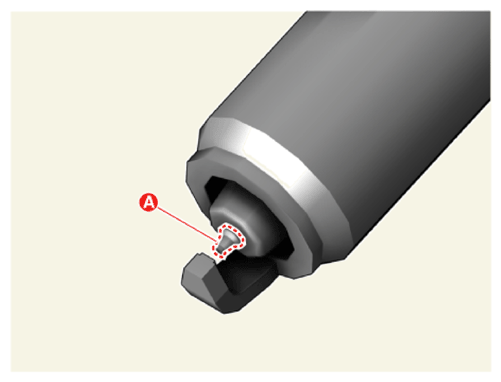

Be careful not to damage center electrode (A) while measuring resistance.

Courtesy of KIA MOTORS AMERICA, INC.

Test for changing position of each ignition coil and spark plug.

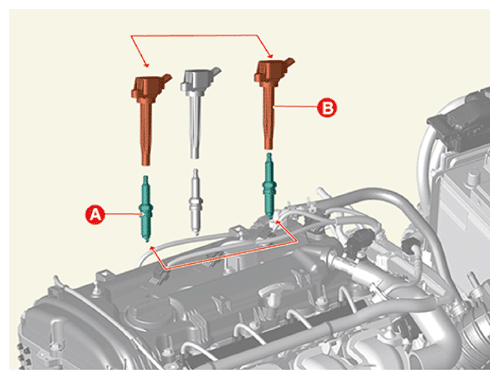

Remove the spark plug (A) and ignition coil (B) from the misfiring cylinder and exchange them with one of the other cylinders.

(Refer to Spark Plug - "REMOVAL AND INSTALLATION ")

Courtesy of KIA MOTORS AMERICA, INC.
