Shift Cable: Installation

Checking shift lever and the manual control lever are in the N range before installation.

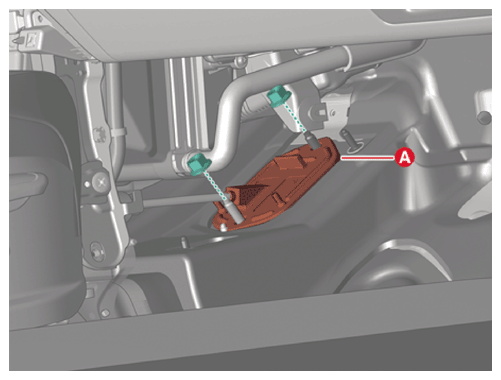

Install the shift cable retainer (A).
Tightening torque:

11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

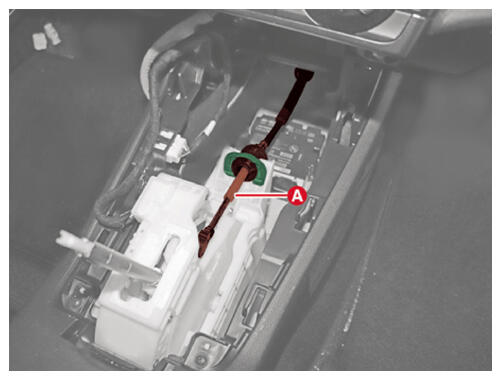

Install the shift cable (A) to the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

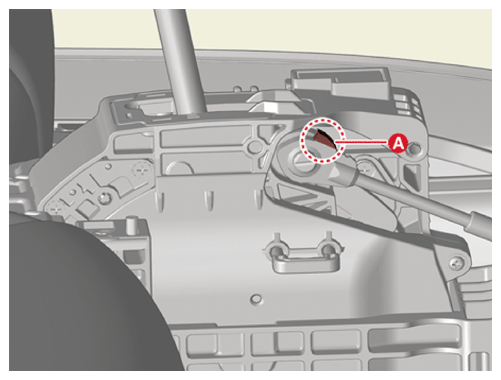

NOTE: Install the shift cable after checking the direction of tab (A) to prevent incorrect assembly.

Courtesy of KIA MOTORS AMERICA, INC.

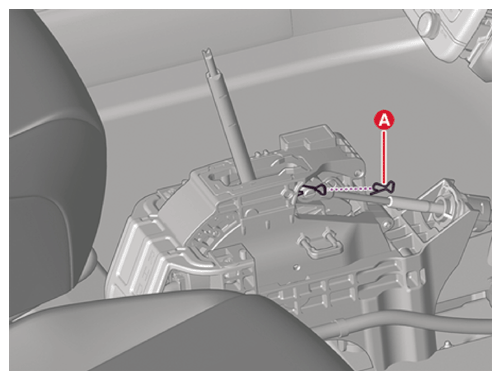

Insert the snap pin (A).

Courtesy of KIA MOTORS AMERICA, INC.

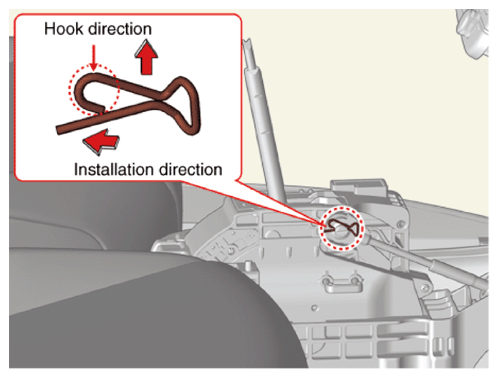

NOTE: Mind the installation direction of snap pin and install the snap pin with the hook facing upward.

Courtesy of KIA MOTORS AMERICA, INC.

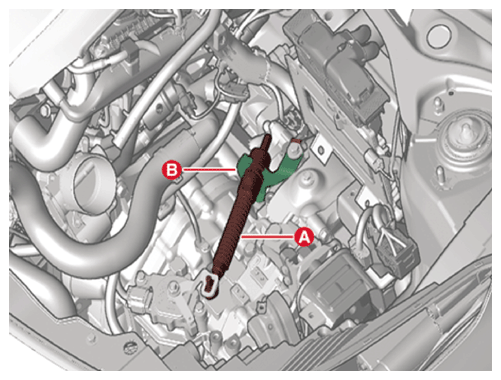

Install the shift cable (A) to the bracket (B).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing shift cable clip must be replaced with new one (do not reuse).

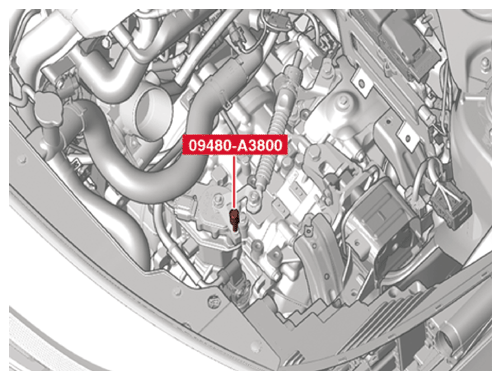

Align the hole in the manual control lever with the N position hole of the position switch and then insert the SST (09480 - A3800).

Courtesy of KIA MOTORS AMERICA, INC.

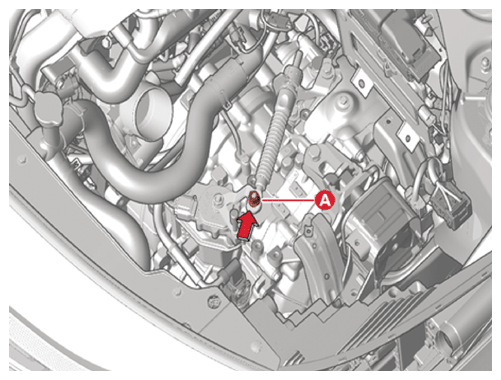

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

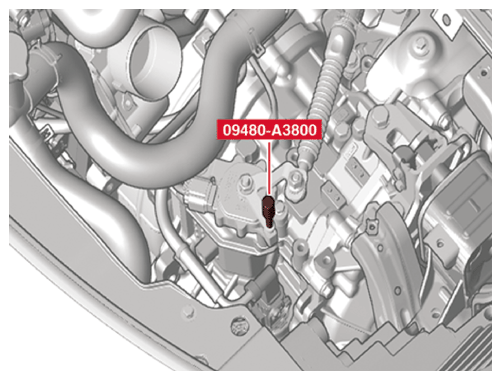

Remove the SST (09480 - A3800).

Courtesy of KIA MOTORS AMERICA, INC.
Install the console upper cover.
(Refer to CONSOLE UPPER COVER REMOVAL & INSTALLATION )
Install the battery and battery tray.
(Refer to Engine Electrical System - " BATTERY REMOVAL AND INSTALLATION ")
Install the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER REMOVAL AND INSTALLATION ")
Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
