Home >> Kia >> 2025 >> Sorento EX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.5T (Except Hybrid) >> Engine Control Module (ECM) >> Removal And Installation >> Removal

Removal And Installation: Removal

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

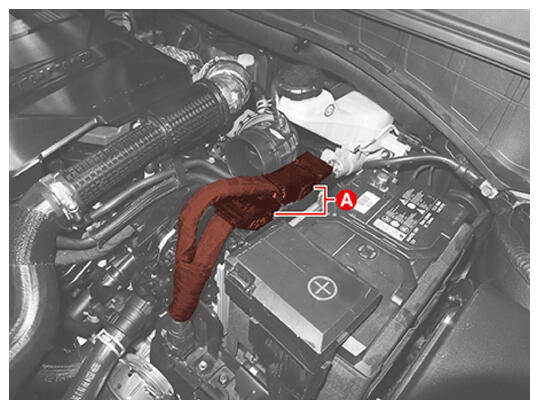

  2. Disconnect the Engine Control Module (ECM) connector (A).
    G16515945Courtesy of KIA MOTORS AMERICA, INC.

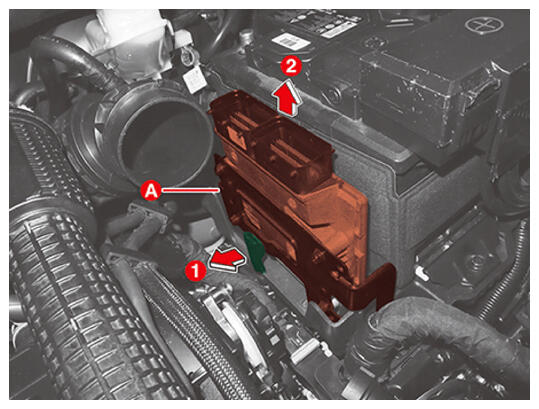

  3. Remove the ECM (A) by pulling it in the arrow direction after releasing the hooks.
    G16515946Courtesy of KIA MOTORS AMERICA, INC.

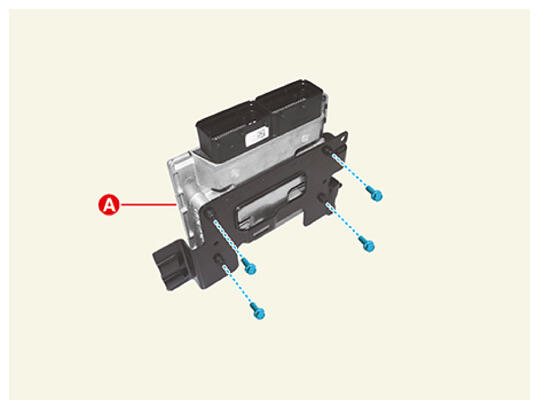

  4. Remove the bracket from the ECM (A) after removing the mounting bolts.

    Tightening torque:  9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16515947Courtesy of KIA MOTORS AMERICA, INC.
