Oil Level Sensor: Removal: Notes
- Disconnect the battery negative ( - ) terminal.
- Remove the engine room under cover.
(Refer to ("ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to ("Engine Oil ")

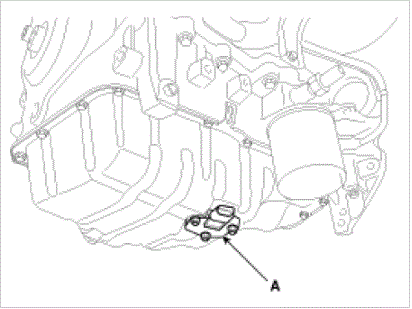

- Disconnect the oil level sensor connector.
- Disconnect the oil level sensor connector.
Tightening torque:
8.8 - 9.8 N.m (0.9 - 1.0 kgf.m, 6.5 - 7.2 lb.ft)
