Connector Identification
Connector Identification

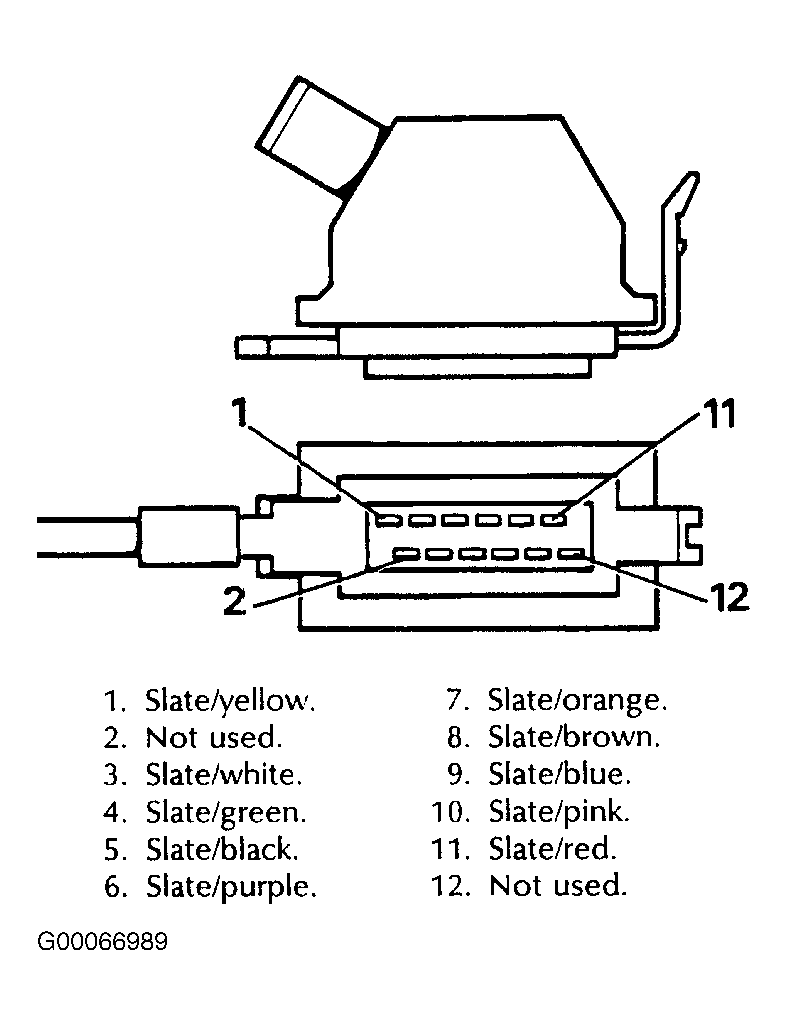

Fig 1: Identifying Anti-Lock Brake Booster Harness Plug
Courtesy of LAND ROVER NORTH AMERICA, INC.

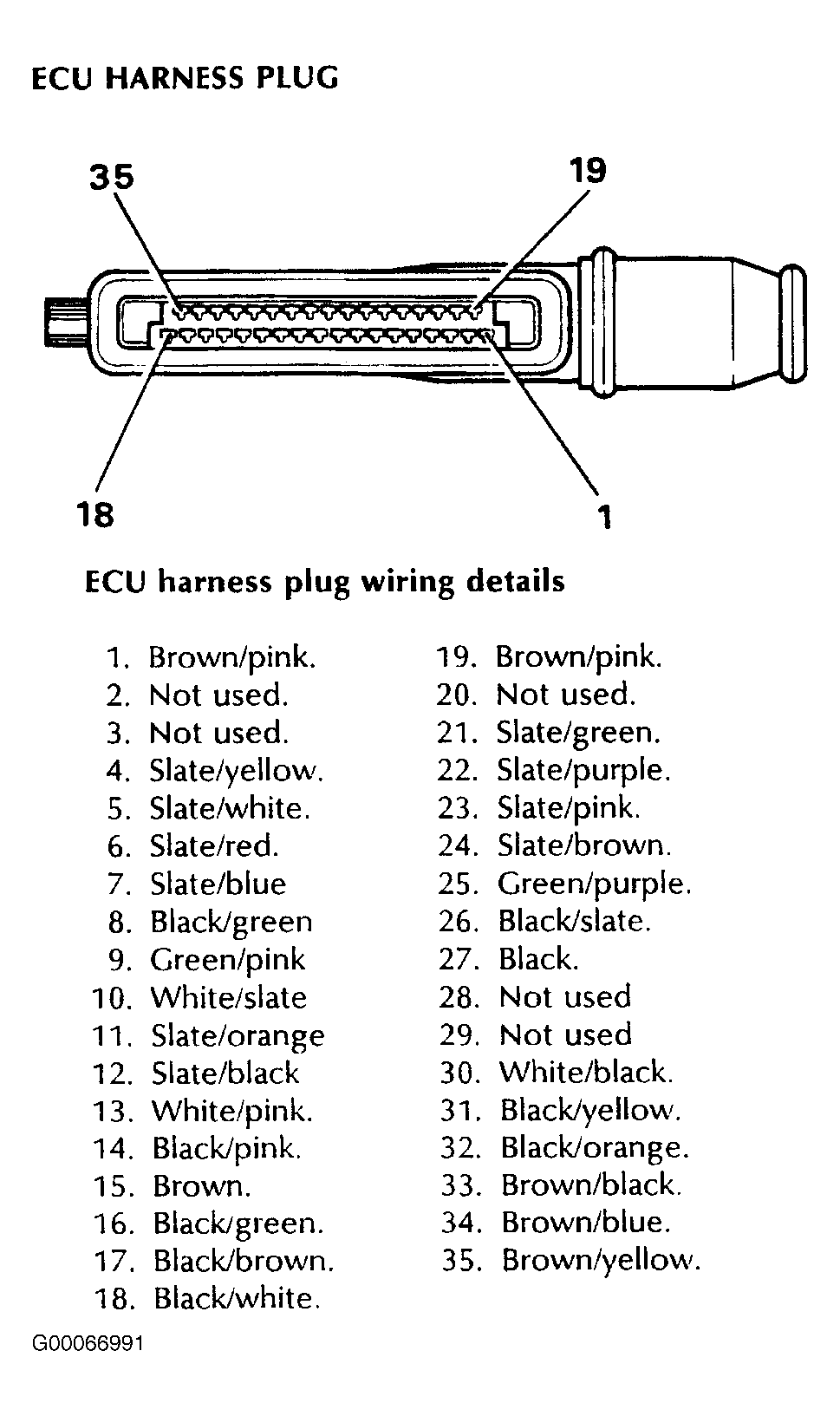

Fig 2: Identifying Anti-Lock Brake ECU Harness Plug
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
