Firing Order

Firing order is 1-8-4-3-6-5-7-2. See Fig 1 and Fig 2 .

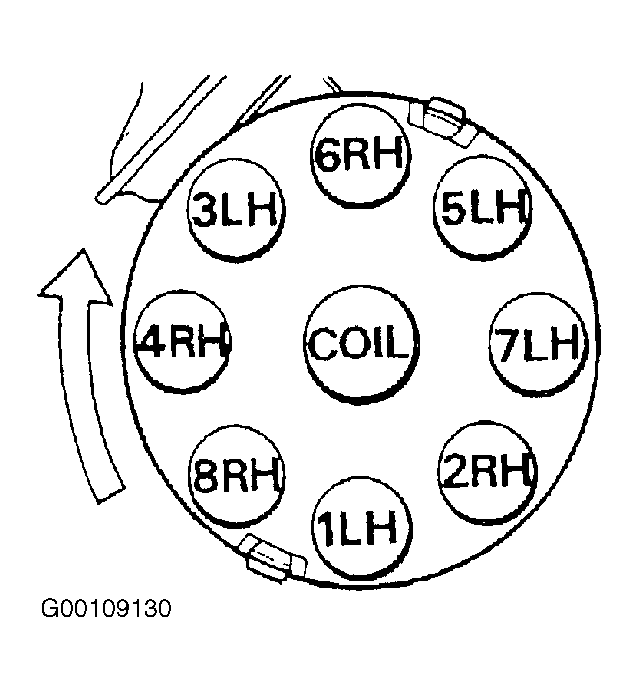

Fig 1: Identifying Distributor Rotation & Firing Order

Courtesy of LAND ROVER NORTH AMERICA, INC.

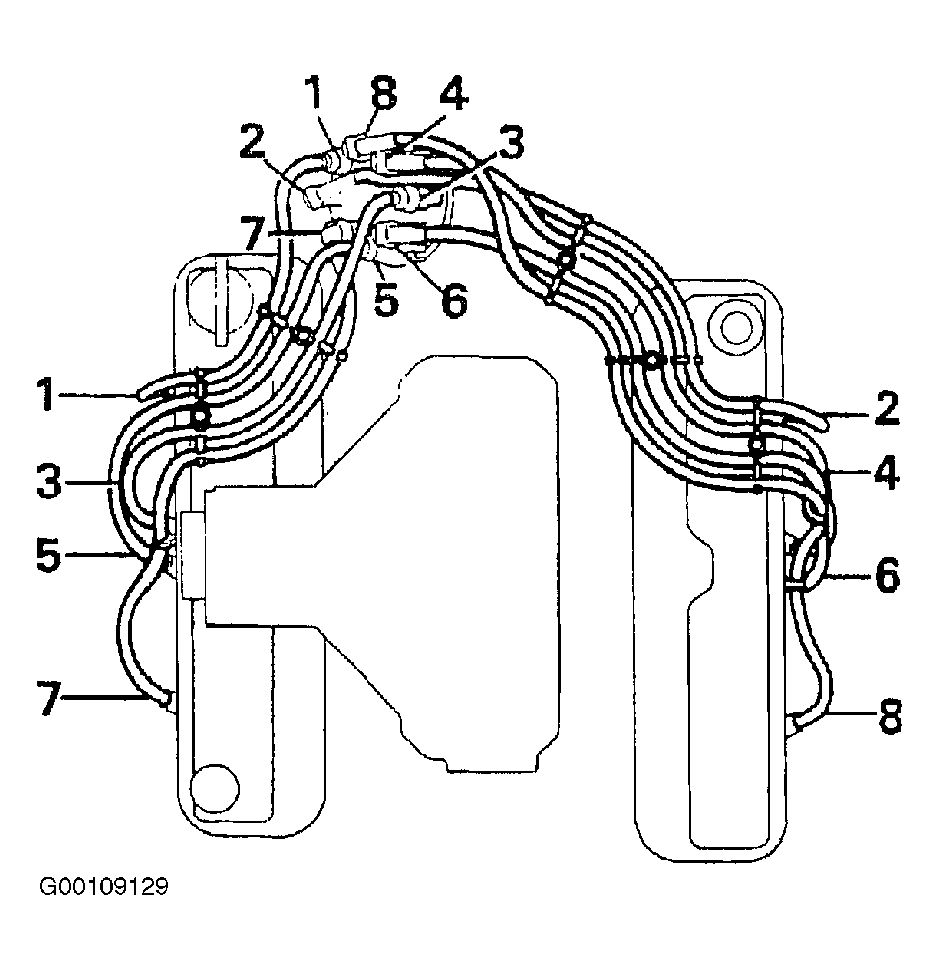

Fig 2: Identifying Spark Plug Wire Routing

Courtesy of LAND ROVER NORTH AMERICA, INC.
