Component Locations

Engine Control Module (ECM) is located under right front seat.

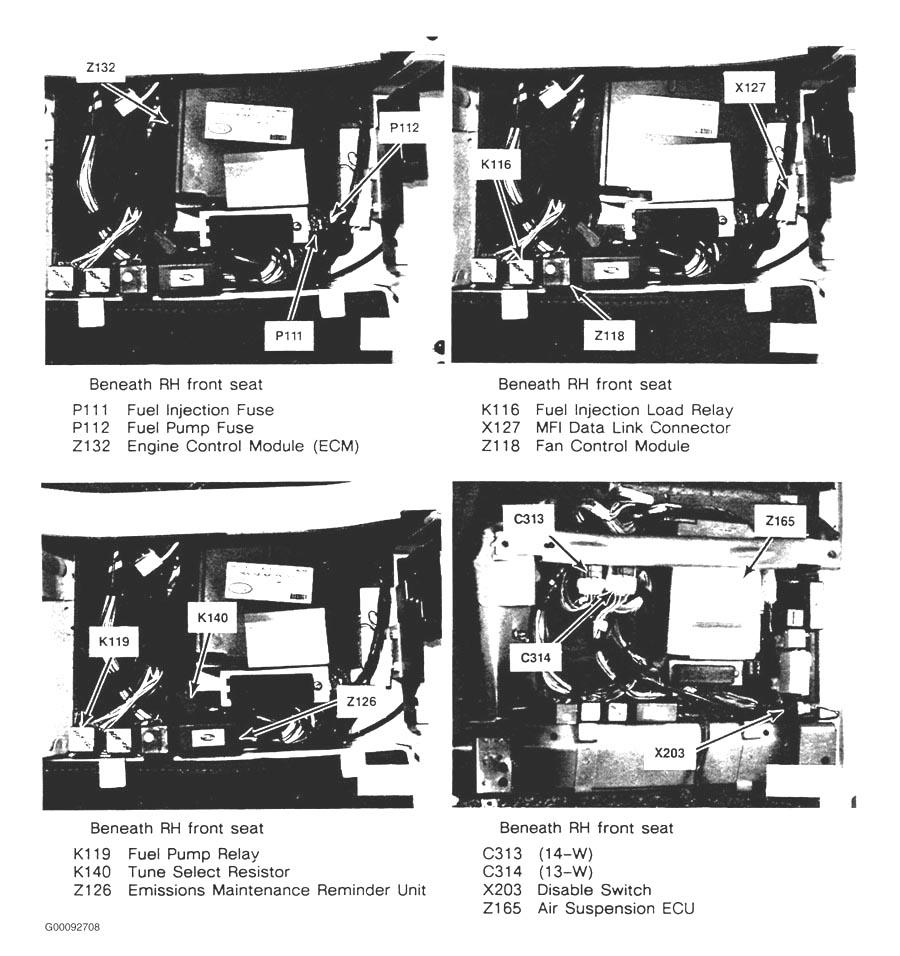

Fig 1: Locating Serial Link Connector

Courtesy of LAND ROVER NORTH AMERICA, INC.

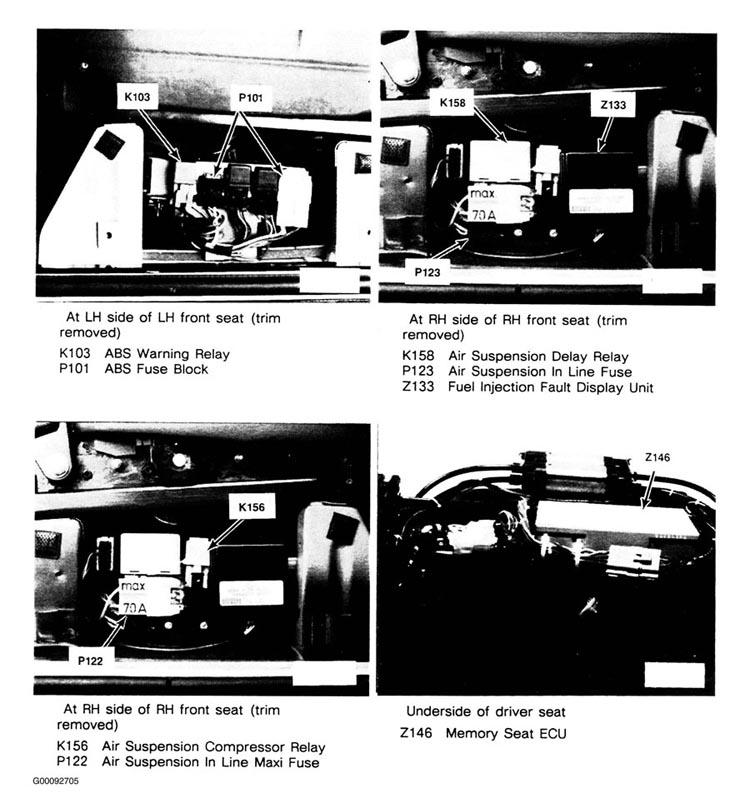

Fig 2: Identifying Fuel Injection Fault Display Unit Location (View 1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

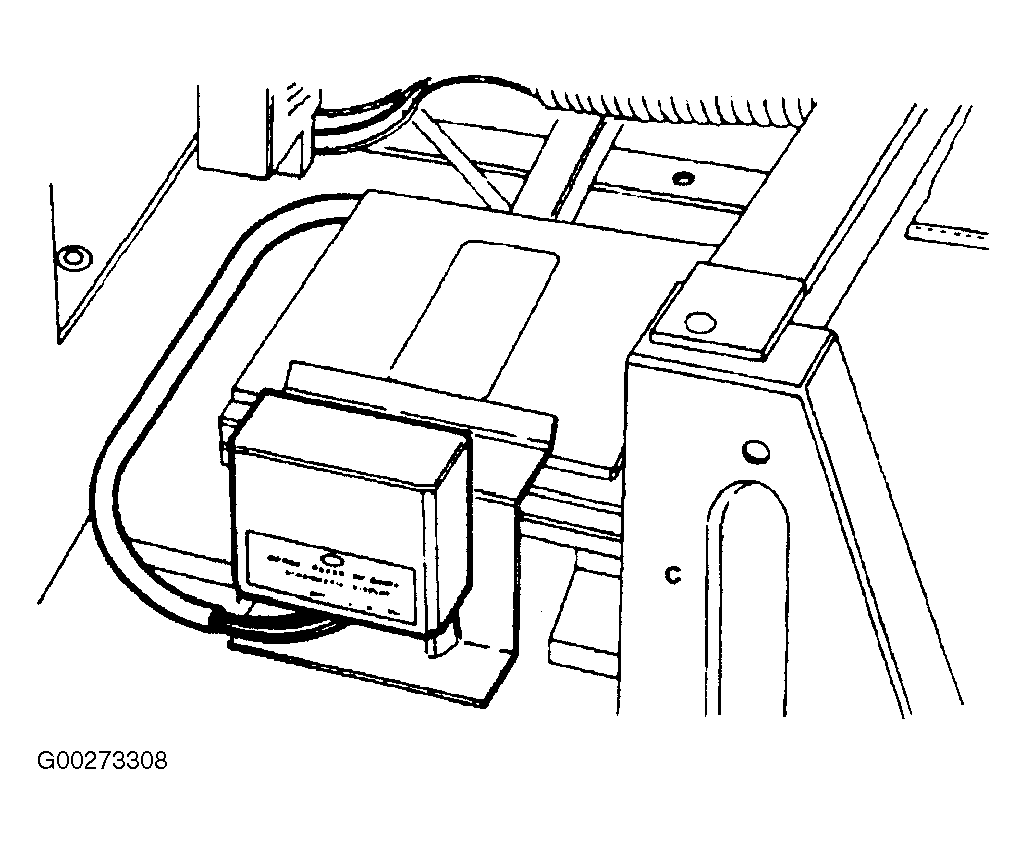

Fig 3: Identifying Fuel Injection Fault Display Unit Location (View 2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
