Code 68: Road Speed Sensor

NOTE: Use continuity test guide for symbol reference. See Figure .

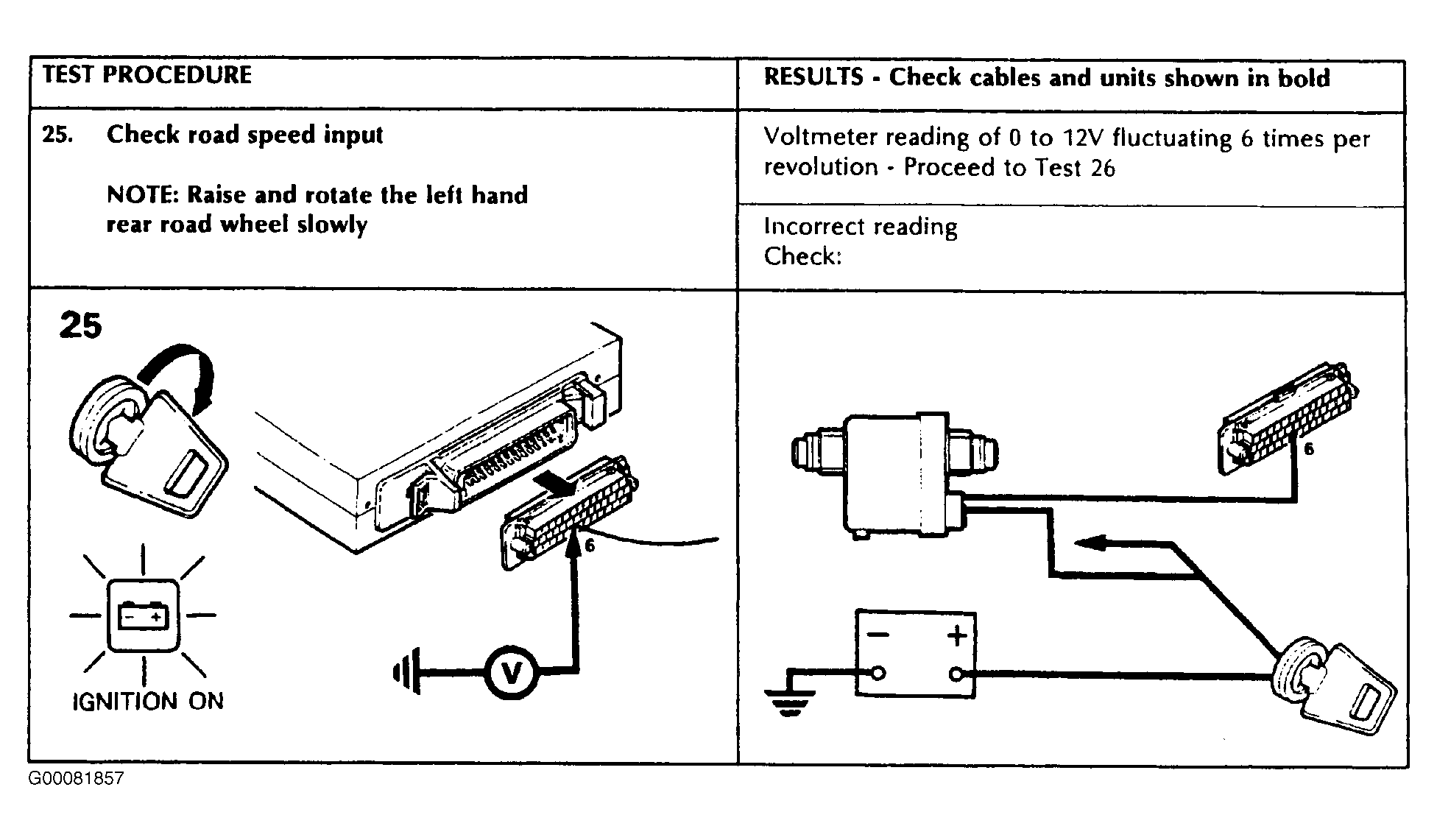

Test road speed sensor input, see Figure . See appropriate WIRING DIAGRAMS article. After completing the tests, retest the vehicle to ensure the faults have been rectified. If faults still persist, recheck using Lucas Diagnostic Equipment or Test Book.
