Test D
Test D
NOTE:
To identify wire colors referenced in testing procedures, see
WIRE COLOR IDENTIFICATION
table under WIRING DIAGRAMS.

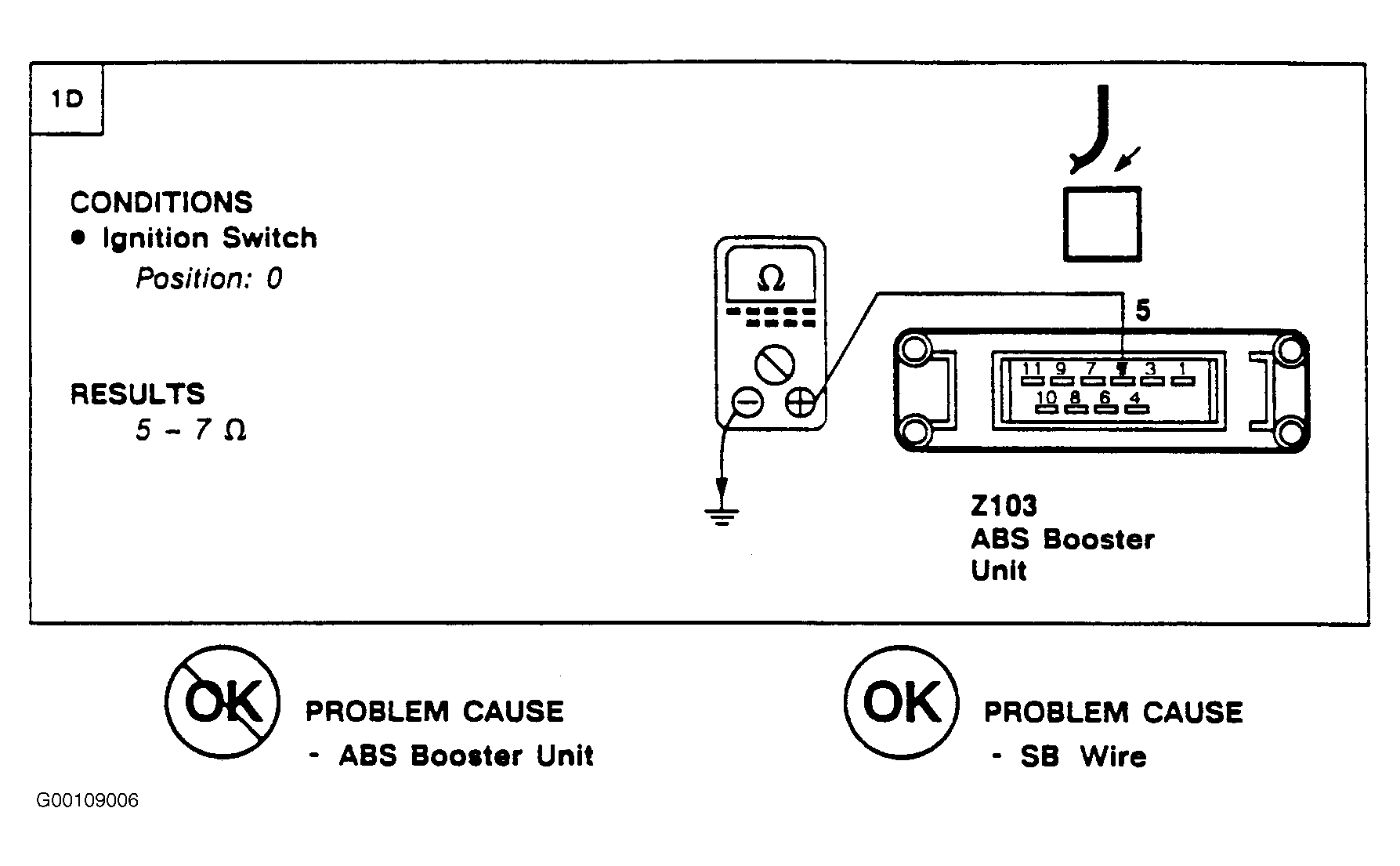

Fig 1: Test D
Courtesy of LAND ROVER NORTH AMERICA, INC.
