Test I

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION table under WIRING DIAGRAMS.

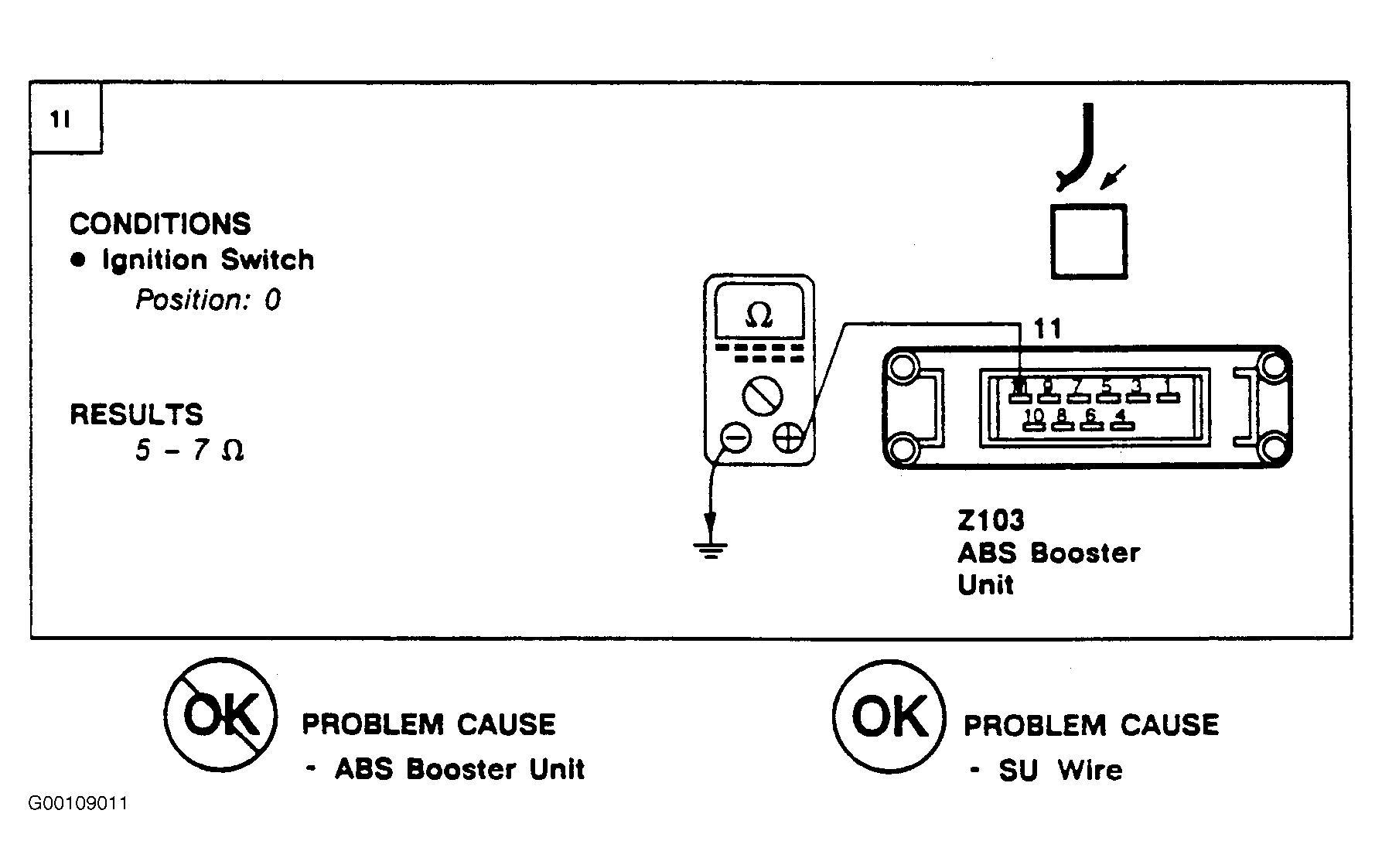

Fig 1: Test I

G00109011

Courtesy of LAND ROVER NORTH AMERICA, INC.
