Home >> Land Rover >> 1992 >> Range Rover Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock >> System Tests >> Test K

Test K

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION table under WIRING DIAGRAMS.

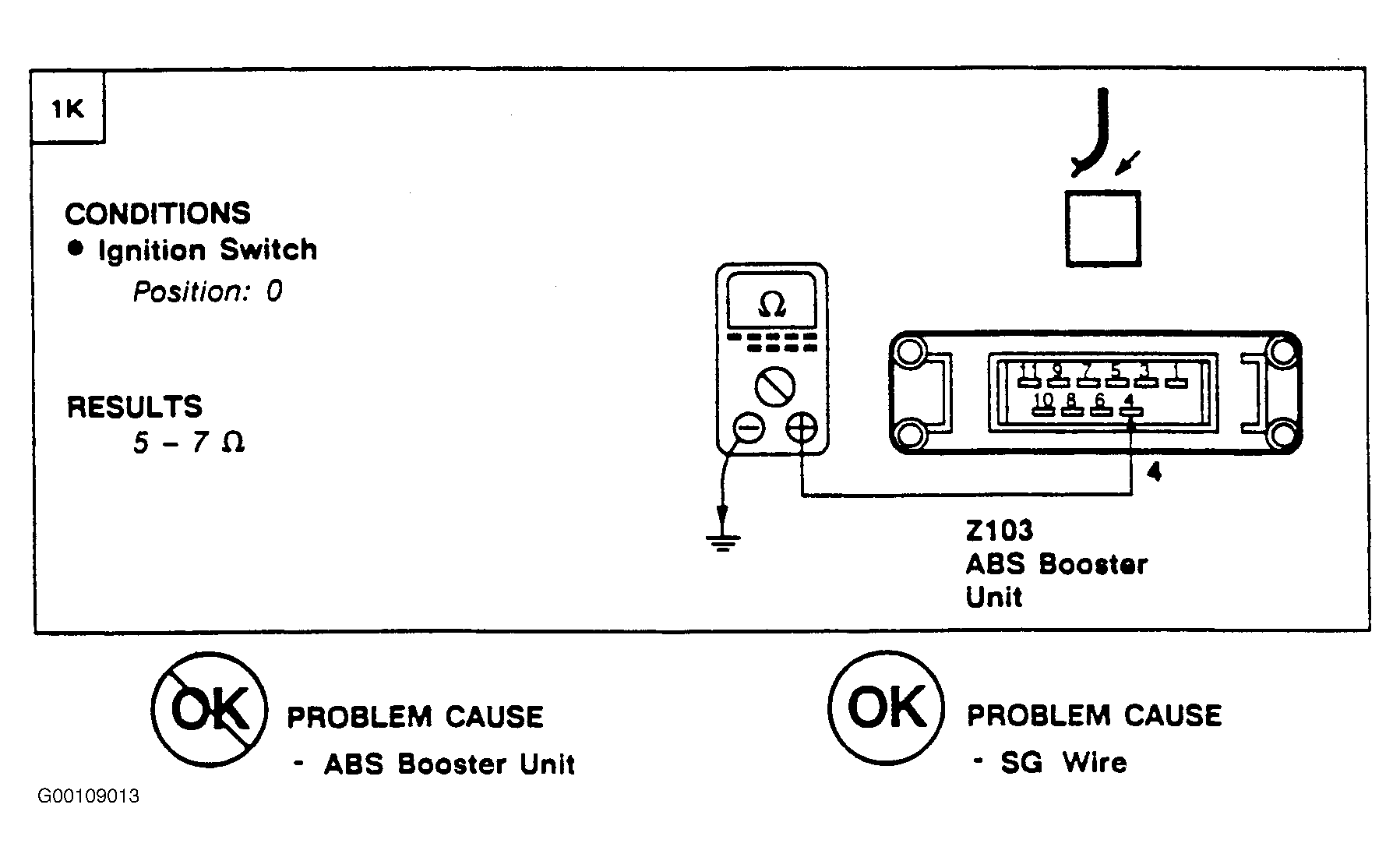

Fig 1: Test K

G00109013

Courtesy of LAND ROVER NORTH AMERICA, INC.
