Test L

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION table under WIRING DIAGRAMS.

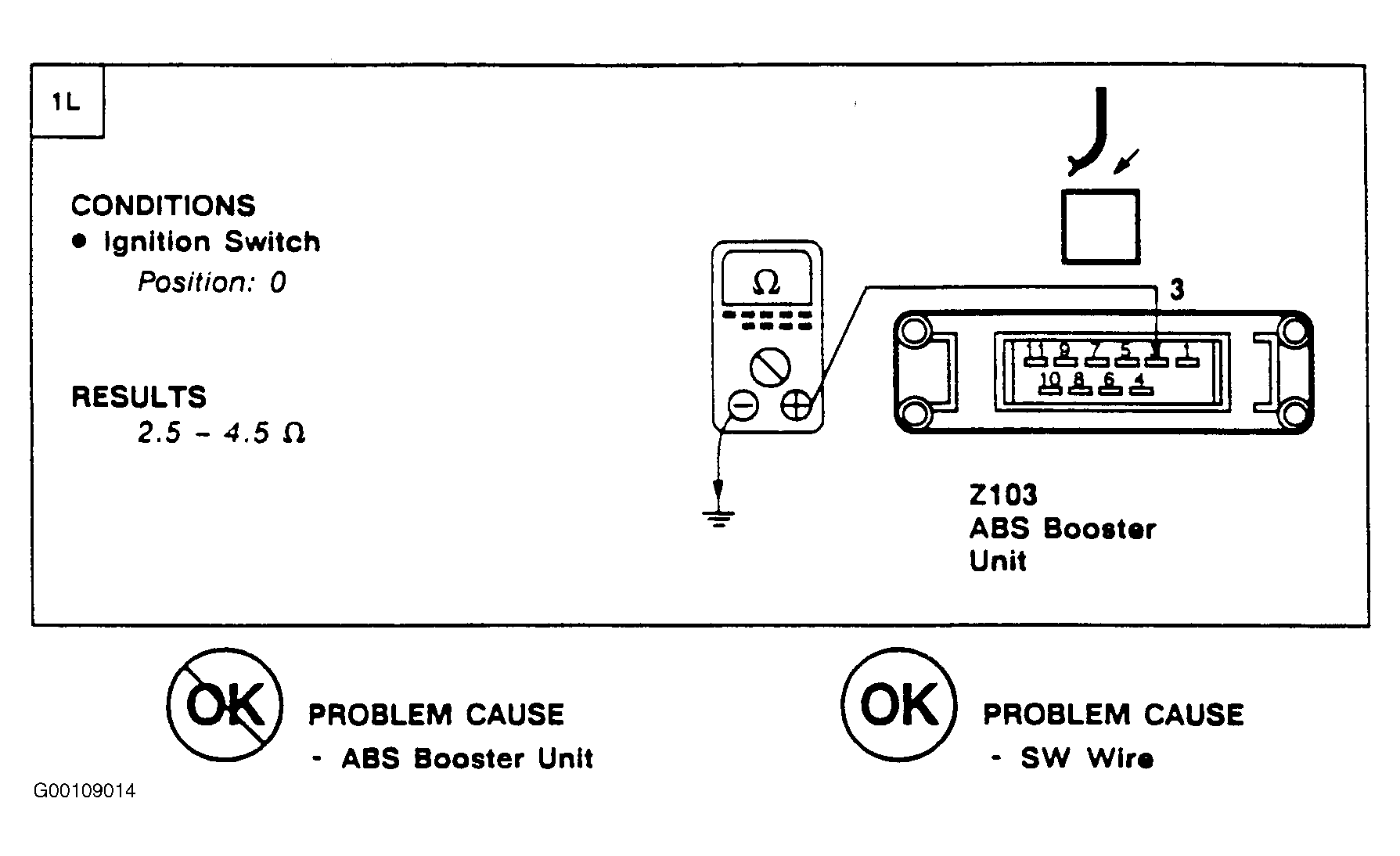

Fig 1: Test L

G00109014

Courtesy of LAND ROVER NORTH AMERICA, INC.
