Test N

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION table under WIRING DIAGRAMS.

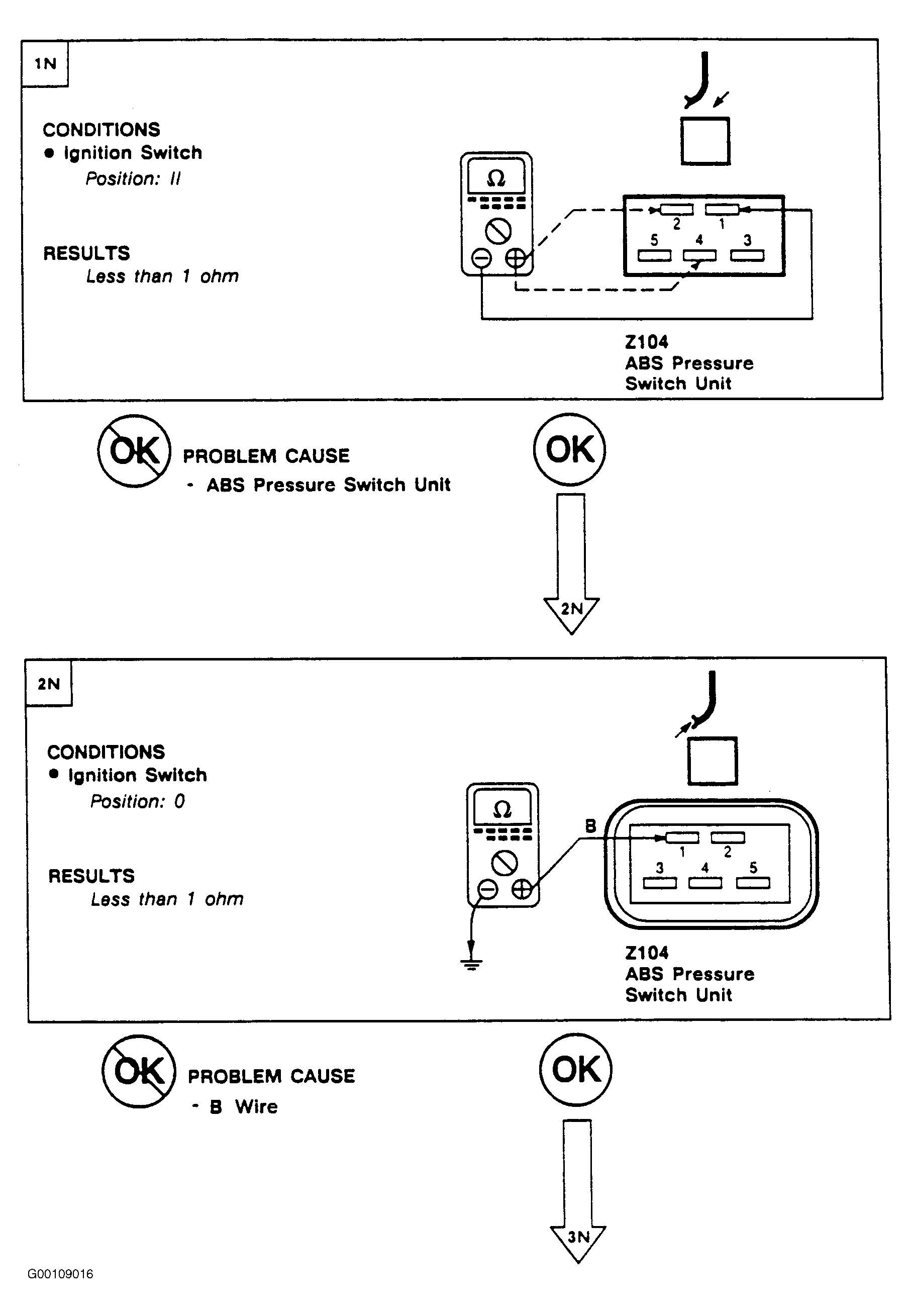

Fig 1: Test N (Steps 1N & 2N)

Courtesy of LAND ROVER NORTH AMERICA, INC.

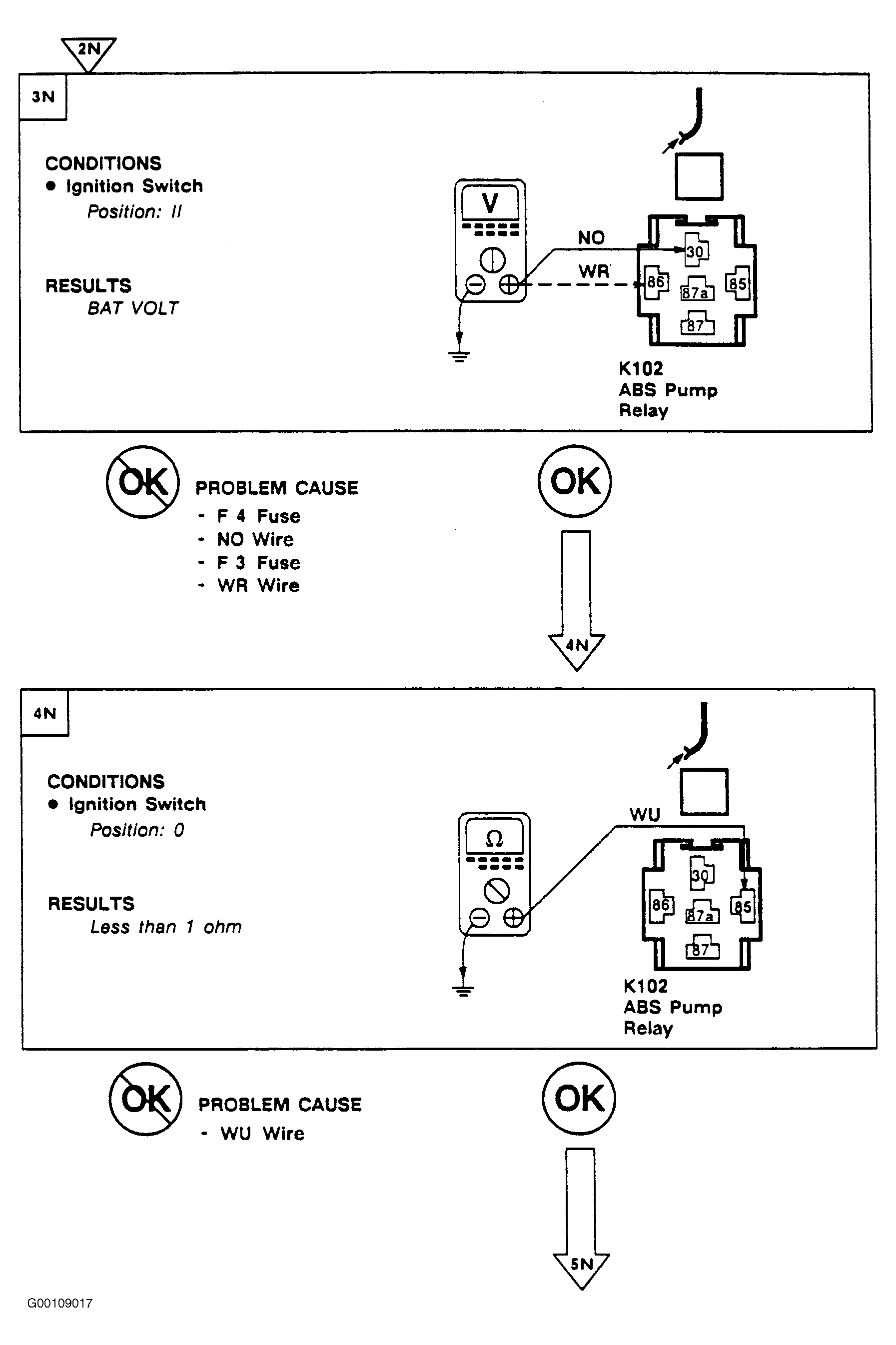

Fig 2: Test N (Steps 3N & 4N)

Courtesy of LAND ROVER NORTH AMERICA, INC.

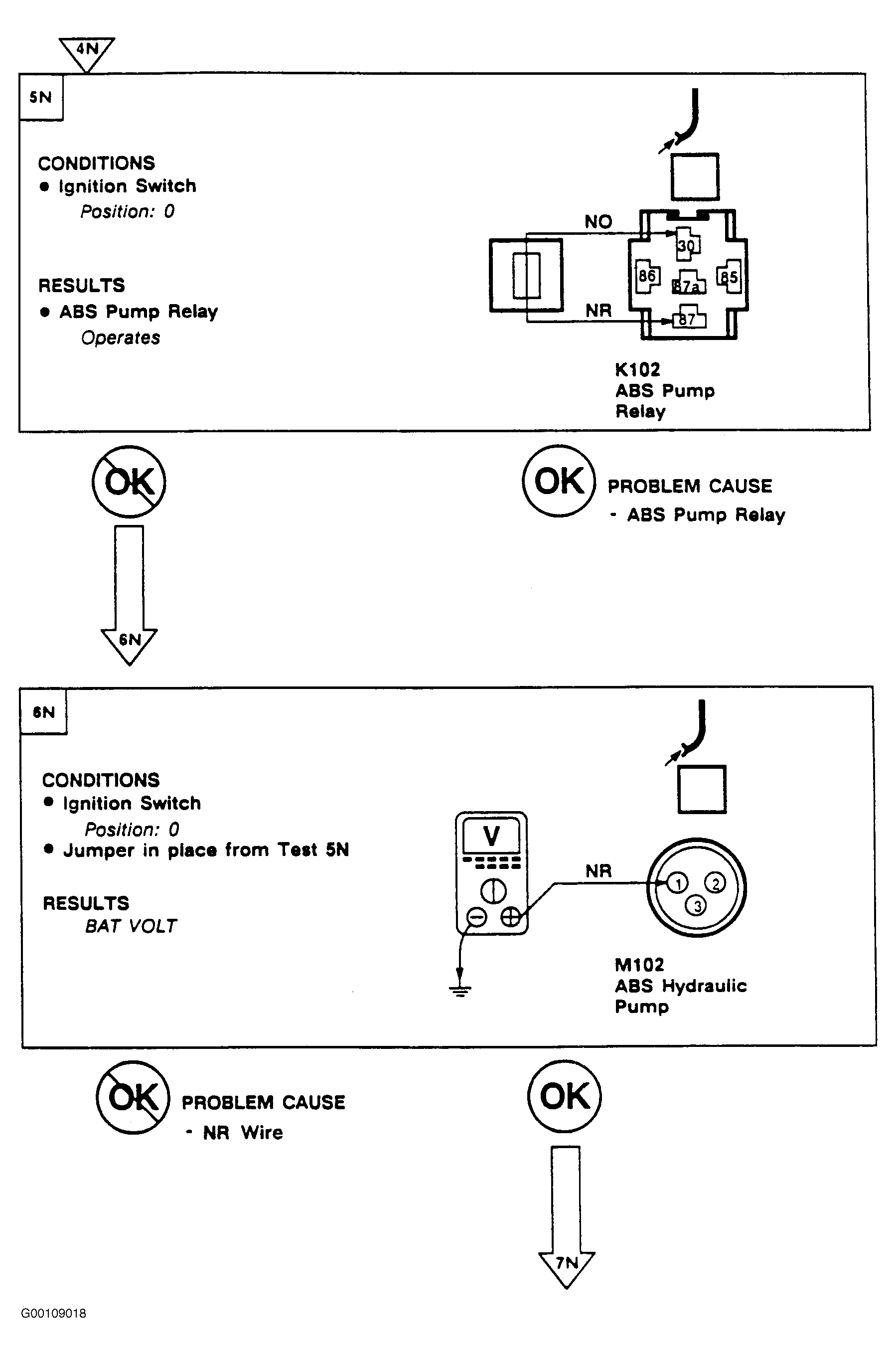

Fig 3: Test N (Steps 5N & 6N)

Courtesy of LAND ROVER NORTH AMERICA, INC.

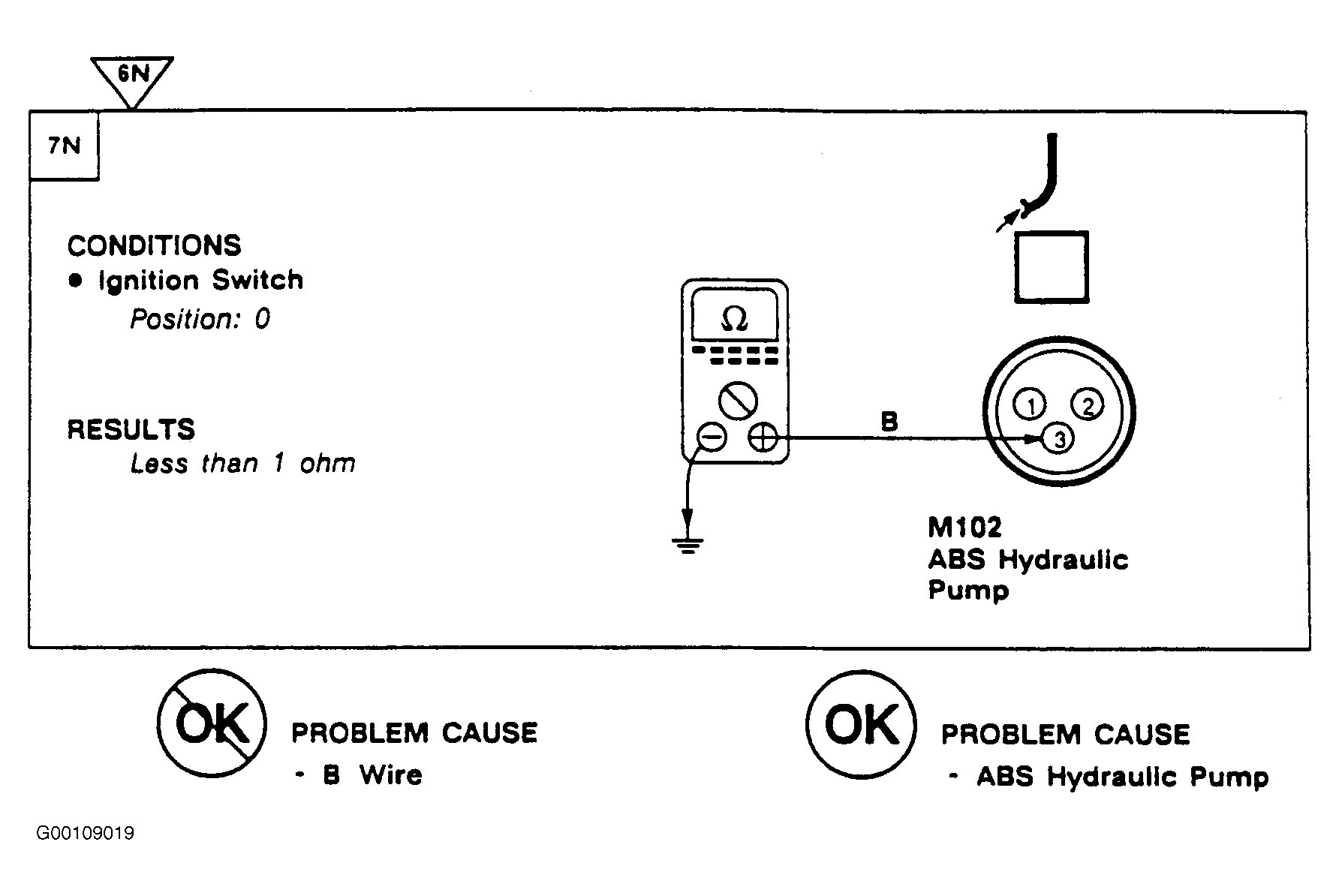

Fig 4: Test N (Step 7N)

Courtesy of LAND ROVER NORTH AMERICA, INC.
