Test Q

NOTE: To identify wire colors referenced in testing procedures, see WIRE COLOR IDENTIFICATION table under WIRING DIAGRAMS.

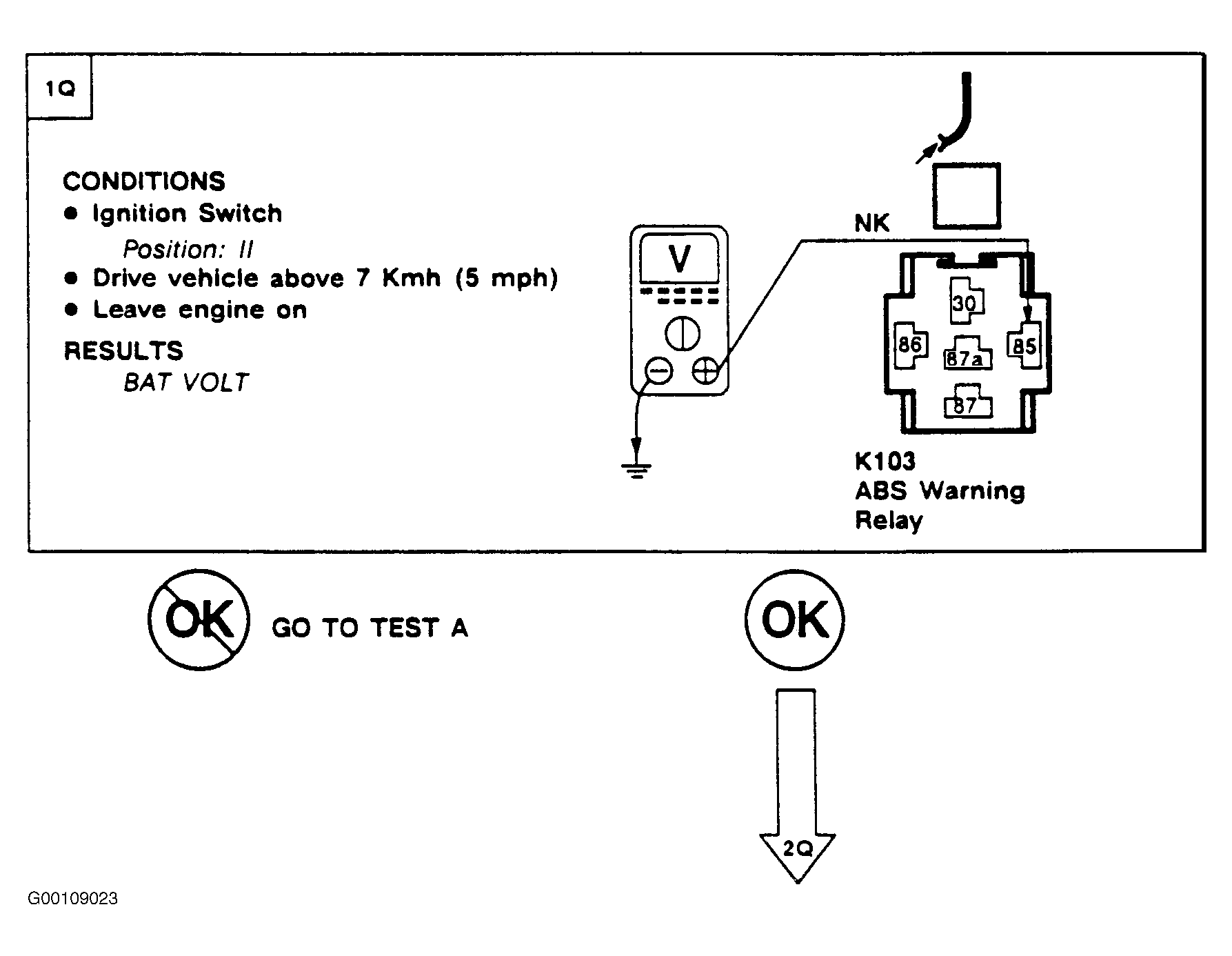

Fig 1: Test Q (Step 1Q)

Courtesy of LAND ROVER NORTH AMERICA, INC.

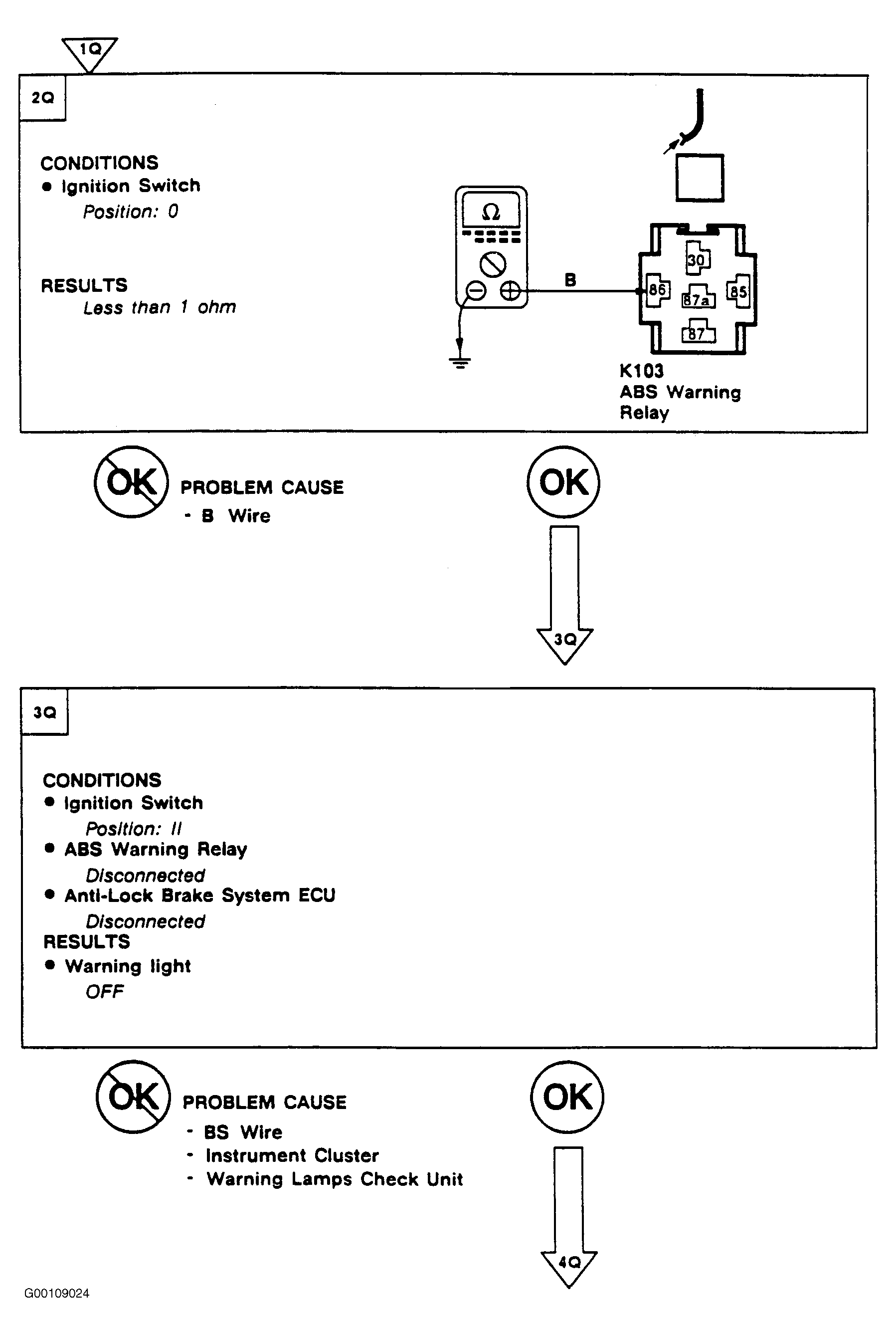

Fig 2: Test Q (Steps 2Q & 3Q)

Courtesy of LAND ROVER NORTH AMERICA, INC.

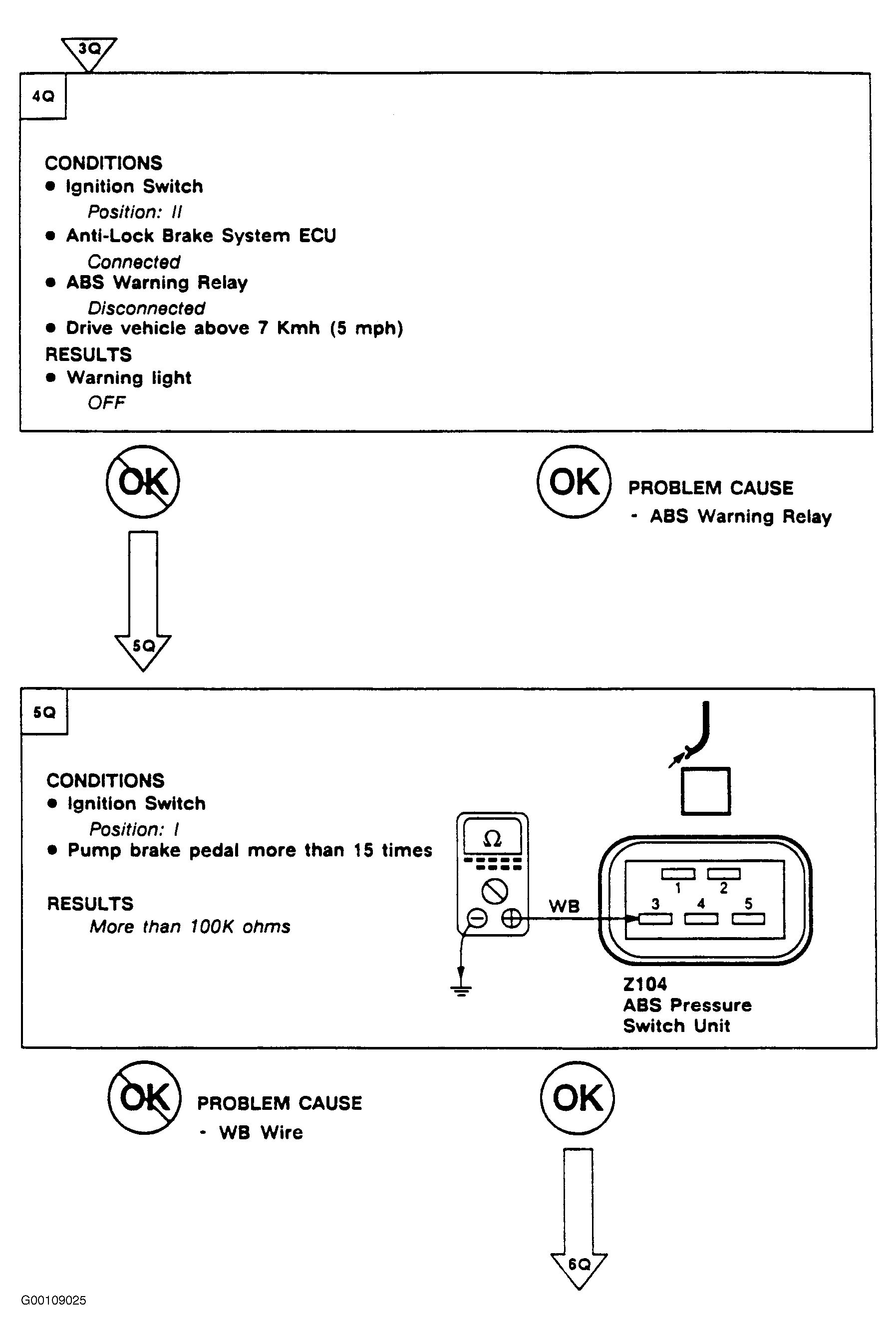

Fig 3: Test Q (Steps 4Q & 5Q)

Courtesy of LAND ROVER NORTH AMERICA, INC.

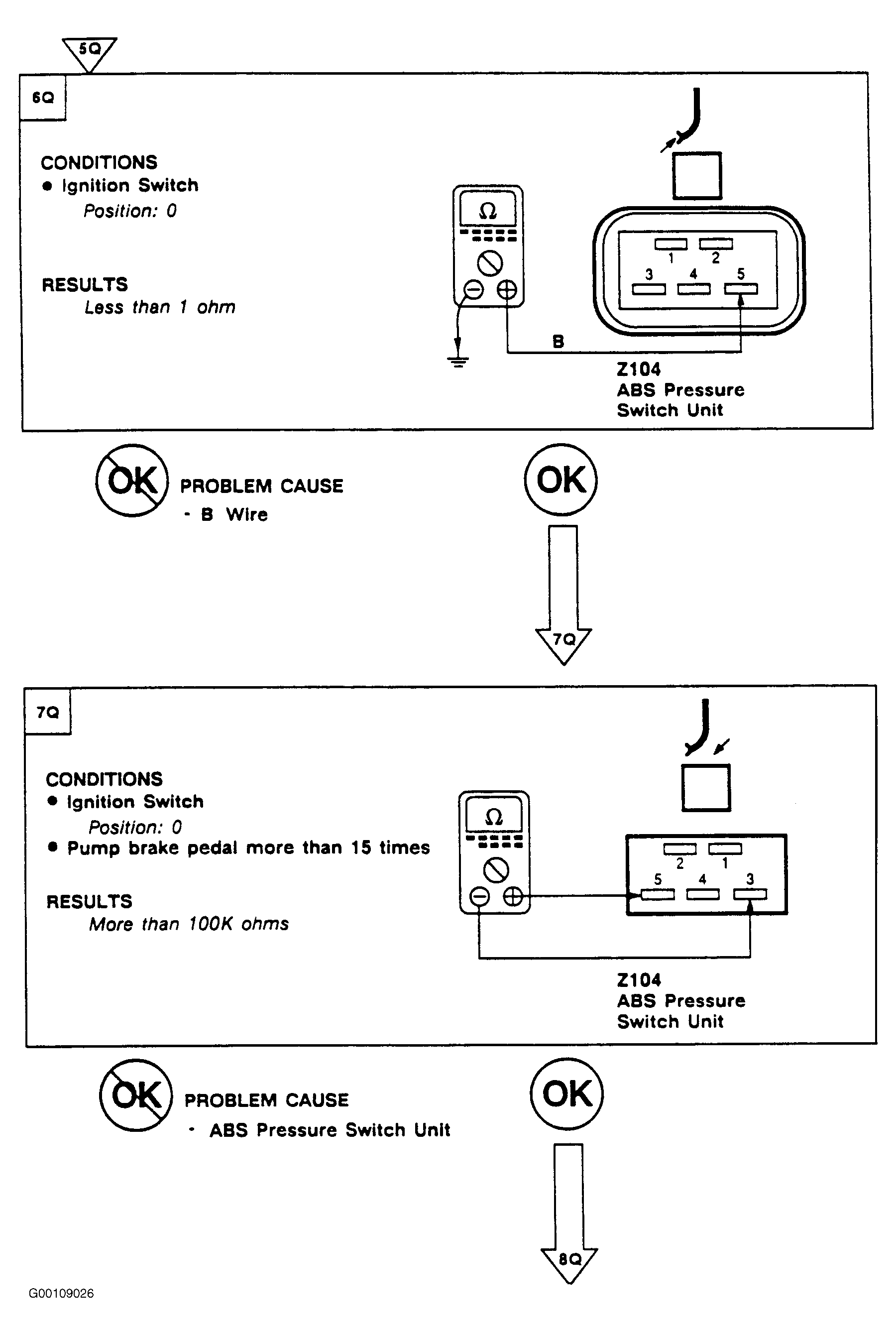

Fig 4: Test Q (Steps 6Q & 7Q)

Courtesy of LAND ROVER NORTH AMERICA, INC.

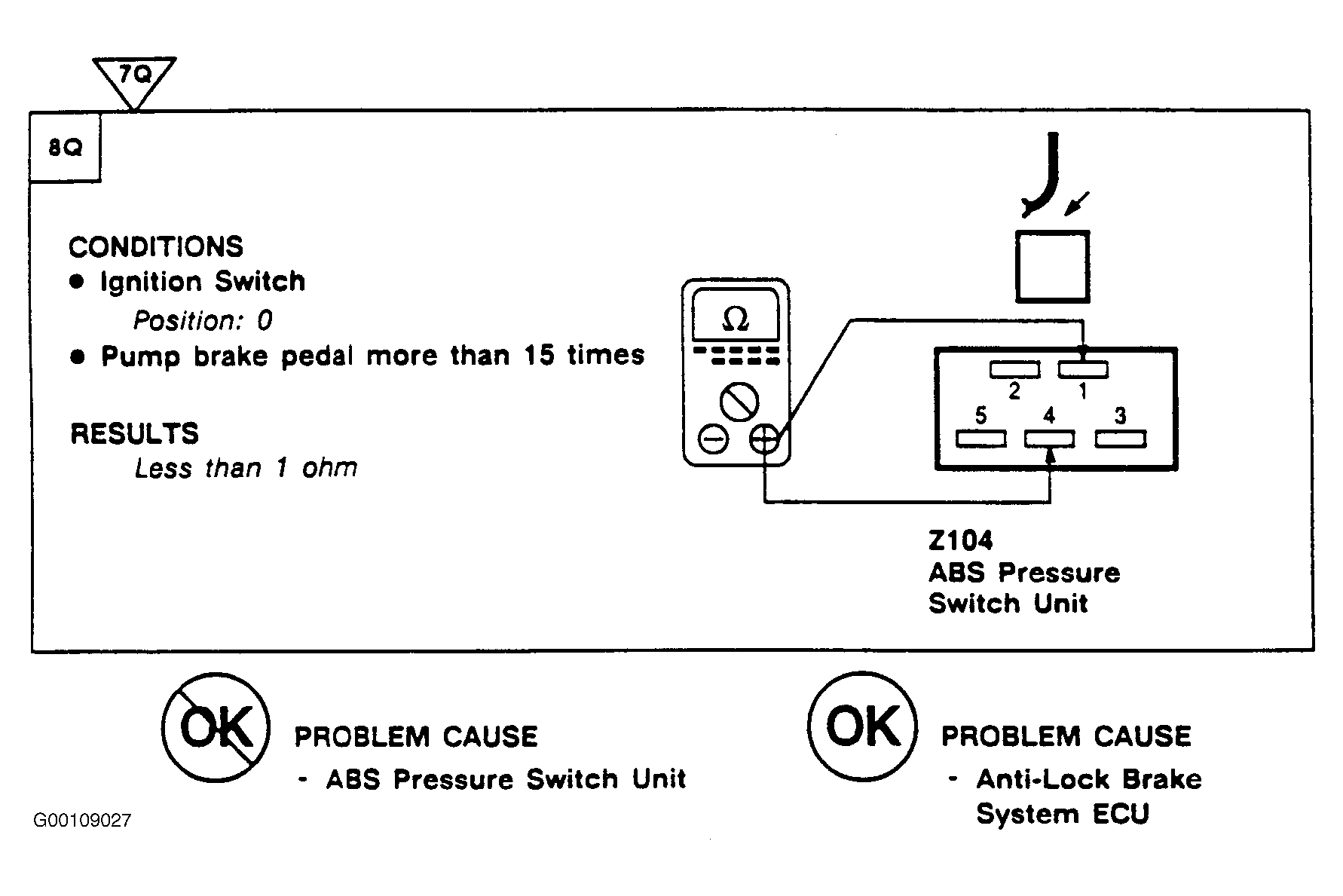

Fig 5: Test Q (Step 8Q)

Courtesy of LAND ROVER NORTH AMERICA, INC.
