Engine Control Module Power & Ground Test

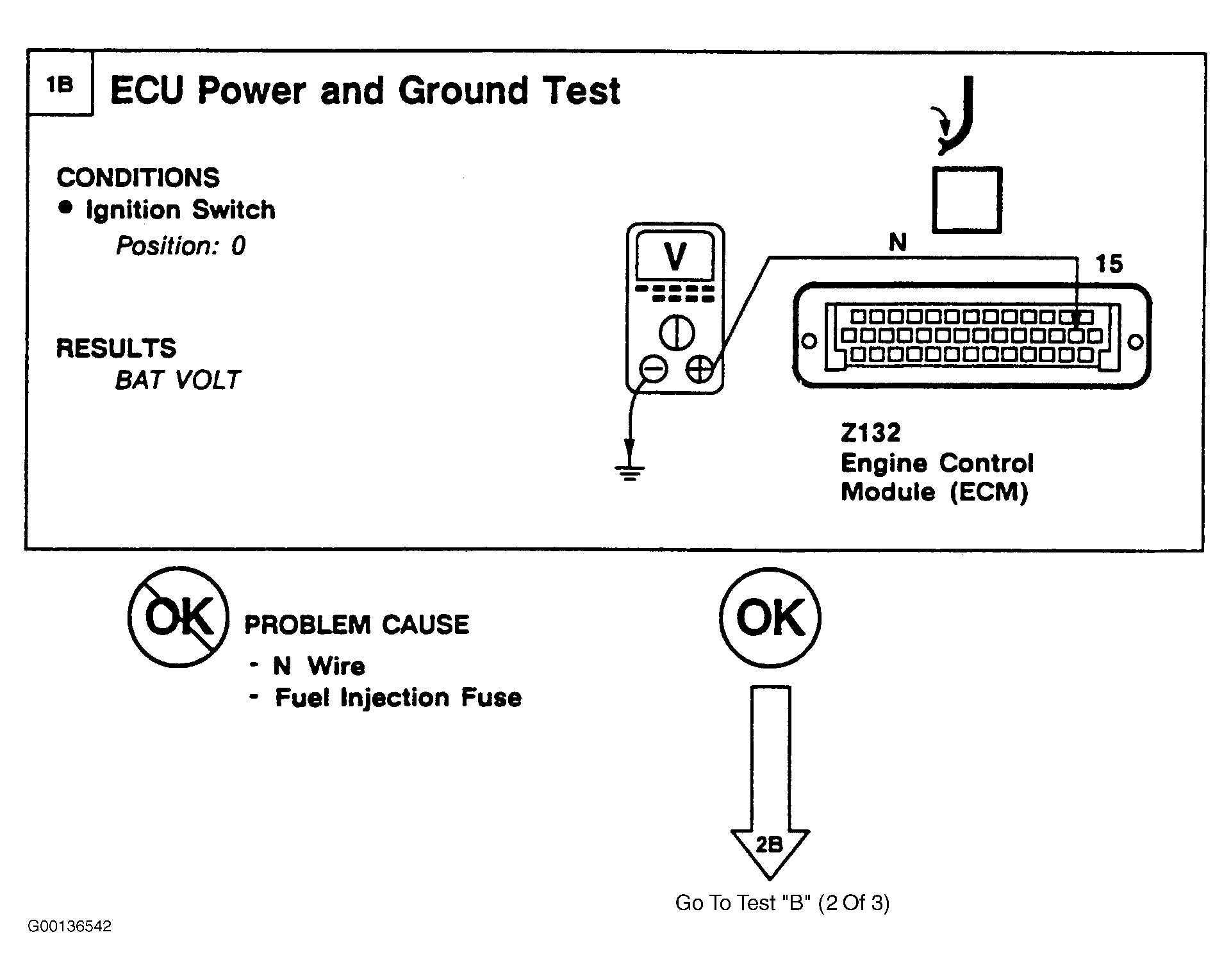

Fig 1: Engine Control Module Power & Ground Test "B" (1 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

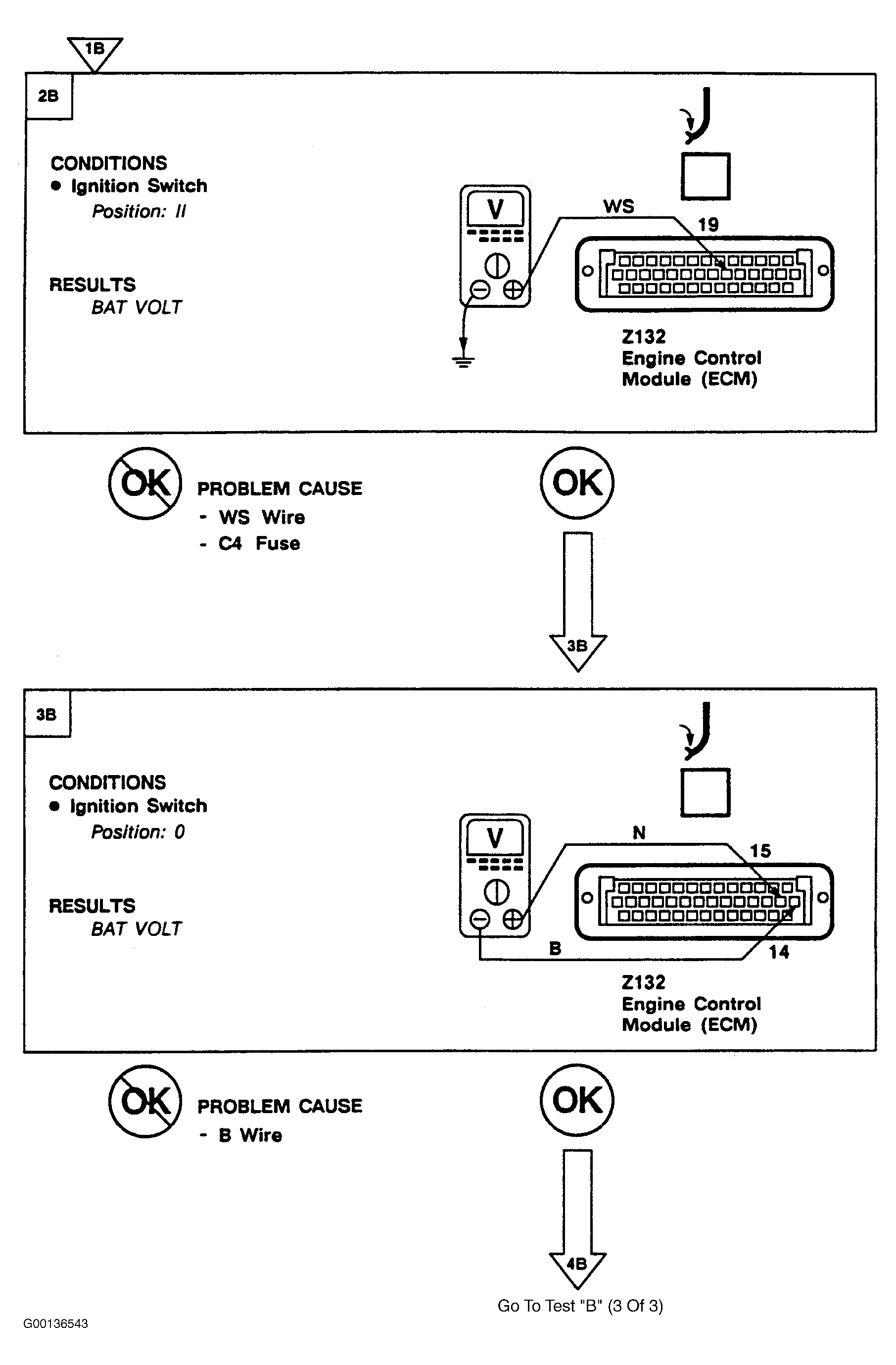

Fig 2: Engine Control Module Power & Ground Test "B" (2 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.

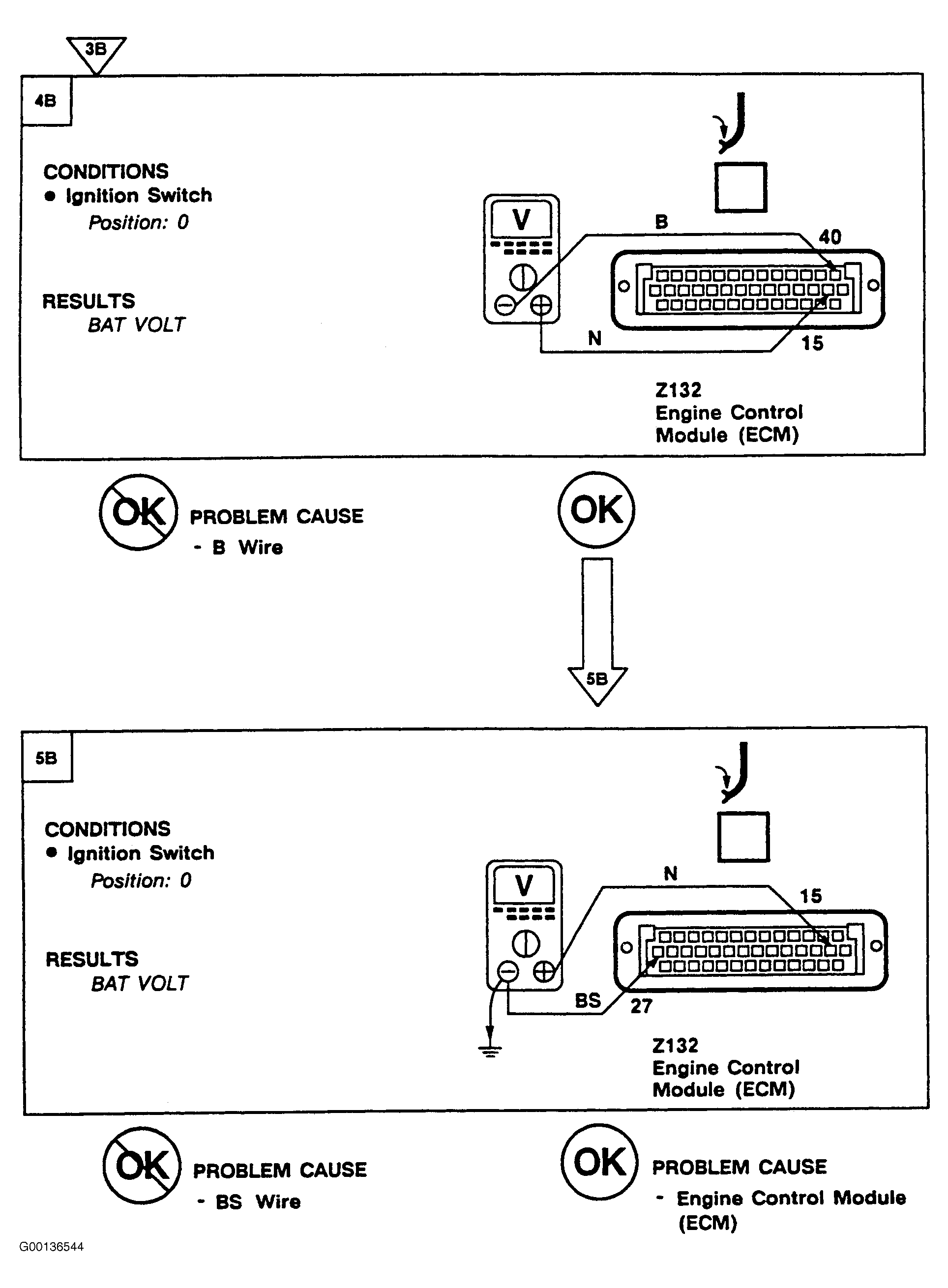

Fig 3: Engine Control Module Power & Ground Test "B" (3 Of 3)

Courtesy of LAND ROVER NORTH AMERICA, INC.
