Test F
Test F

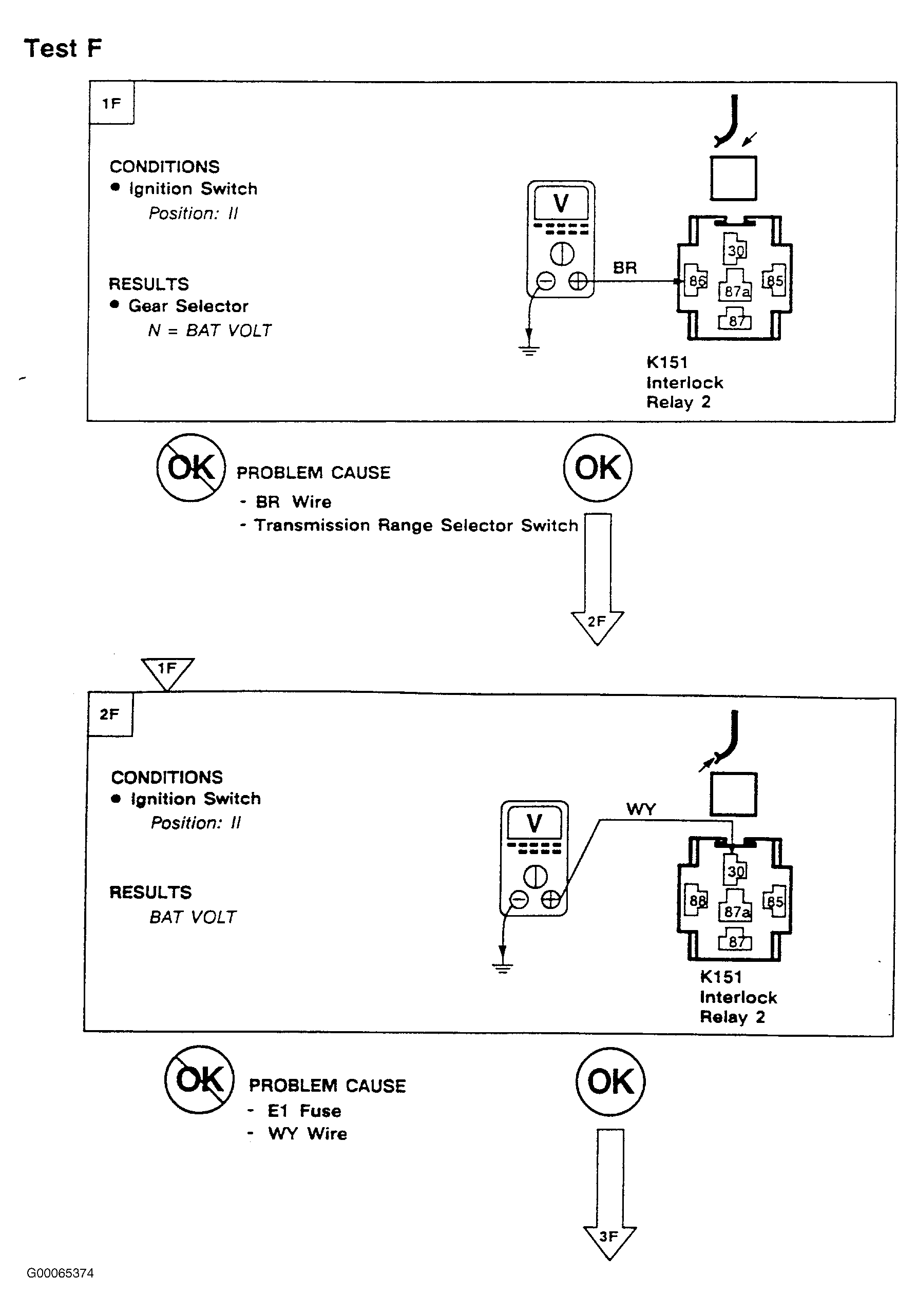

Fig 1: Test F - Steps 1F & 2F (1 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.

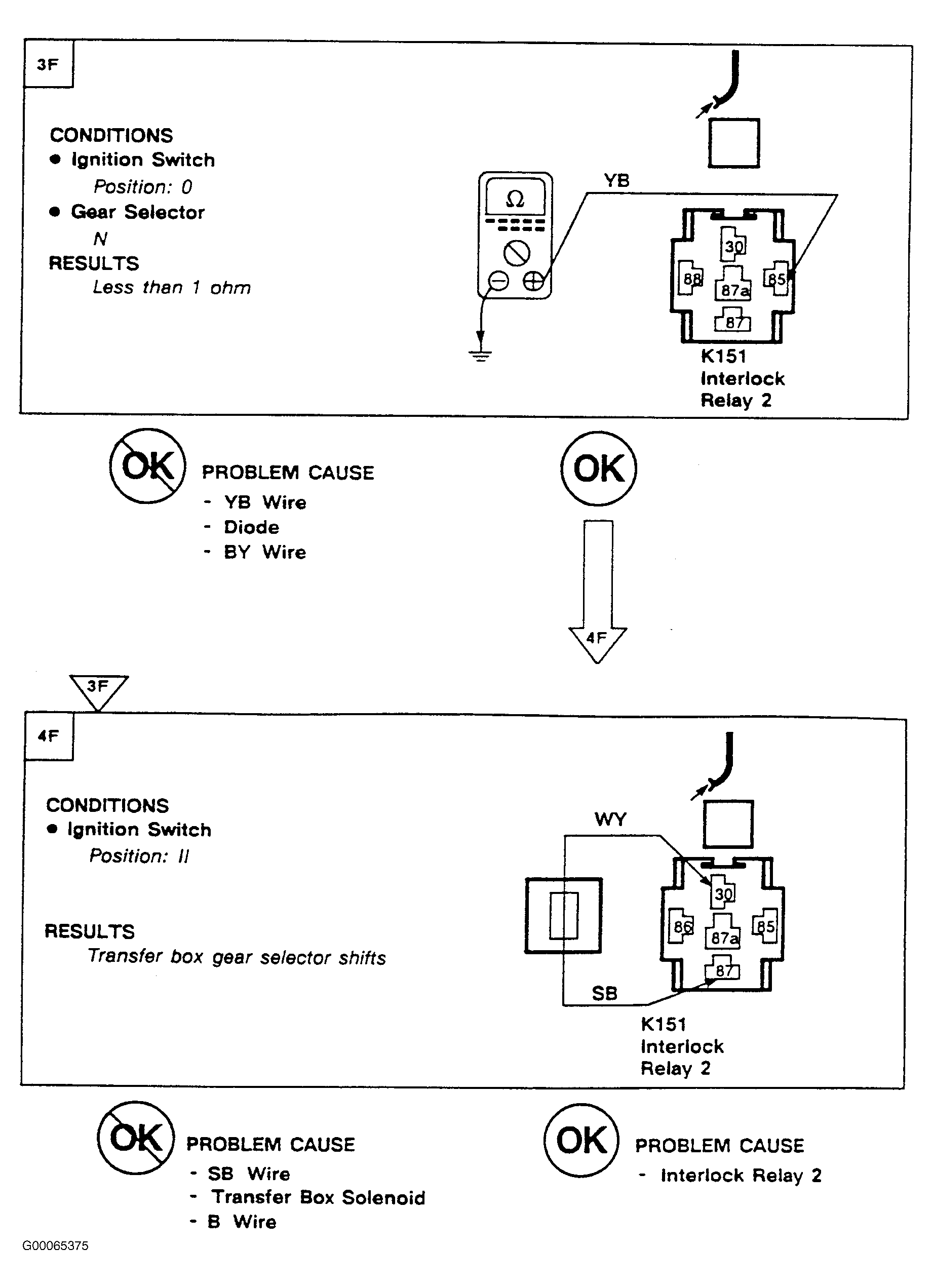

Fig 2: Test F - Steps 3F & 4F (2 Of 2)
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
