Check Engine Warning Light Inoperative

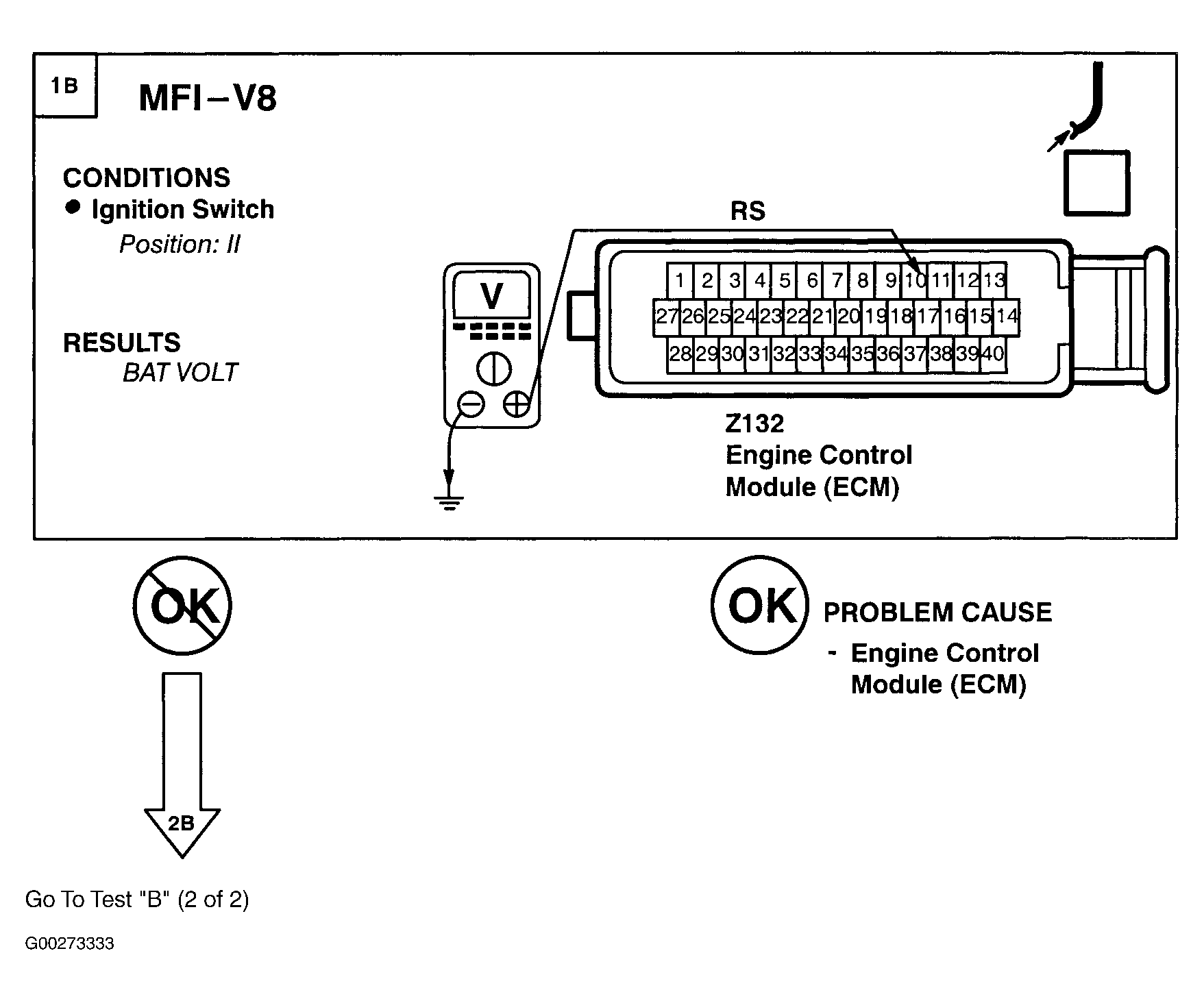

Fig 1: Check Engine Warning Light Inoperative Test "B" (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

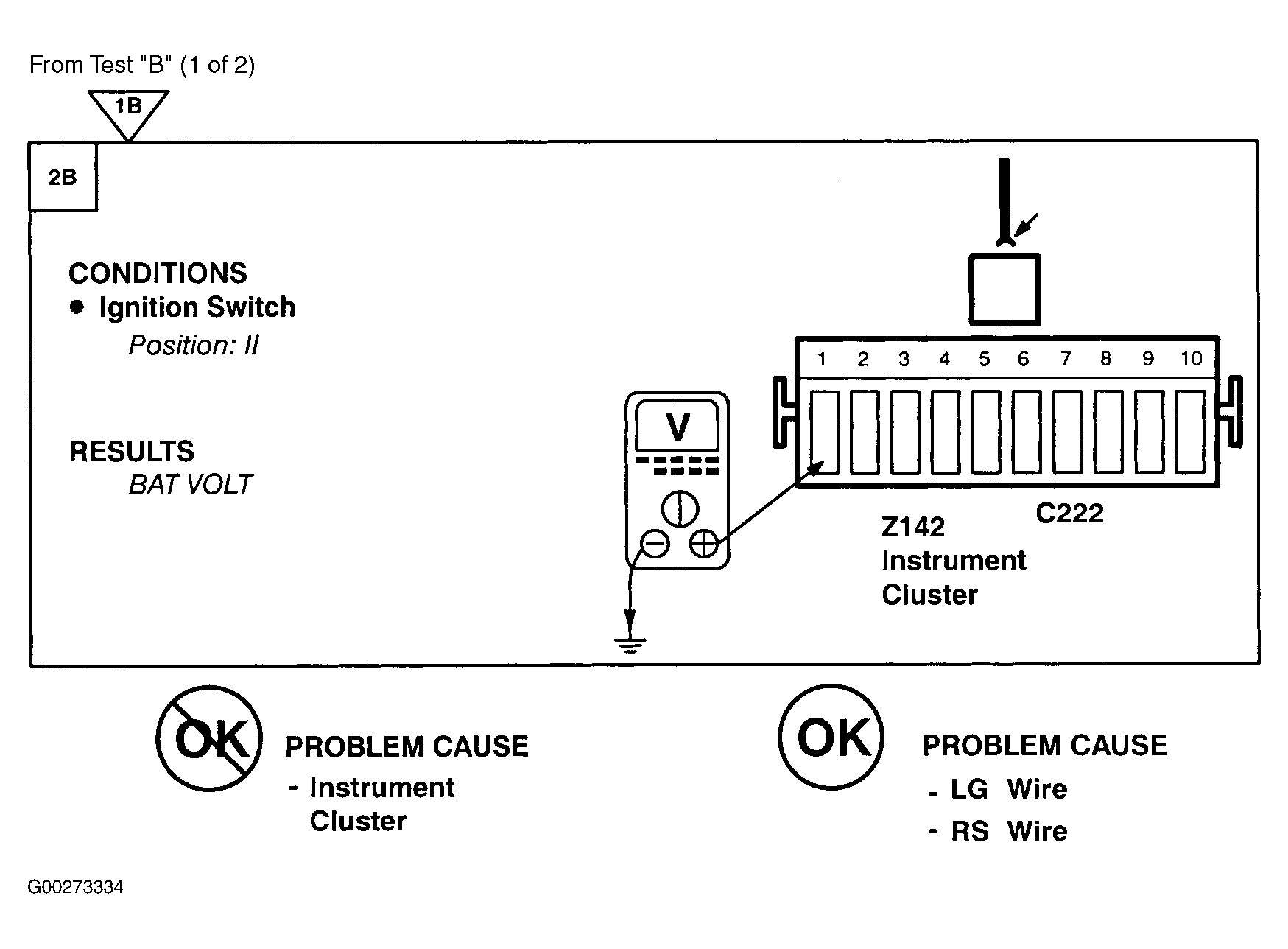

Fig 2: Check Engine Warning Light Inoperative Test "B" (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
