No Diagnostic Trouble Code Test

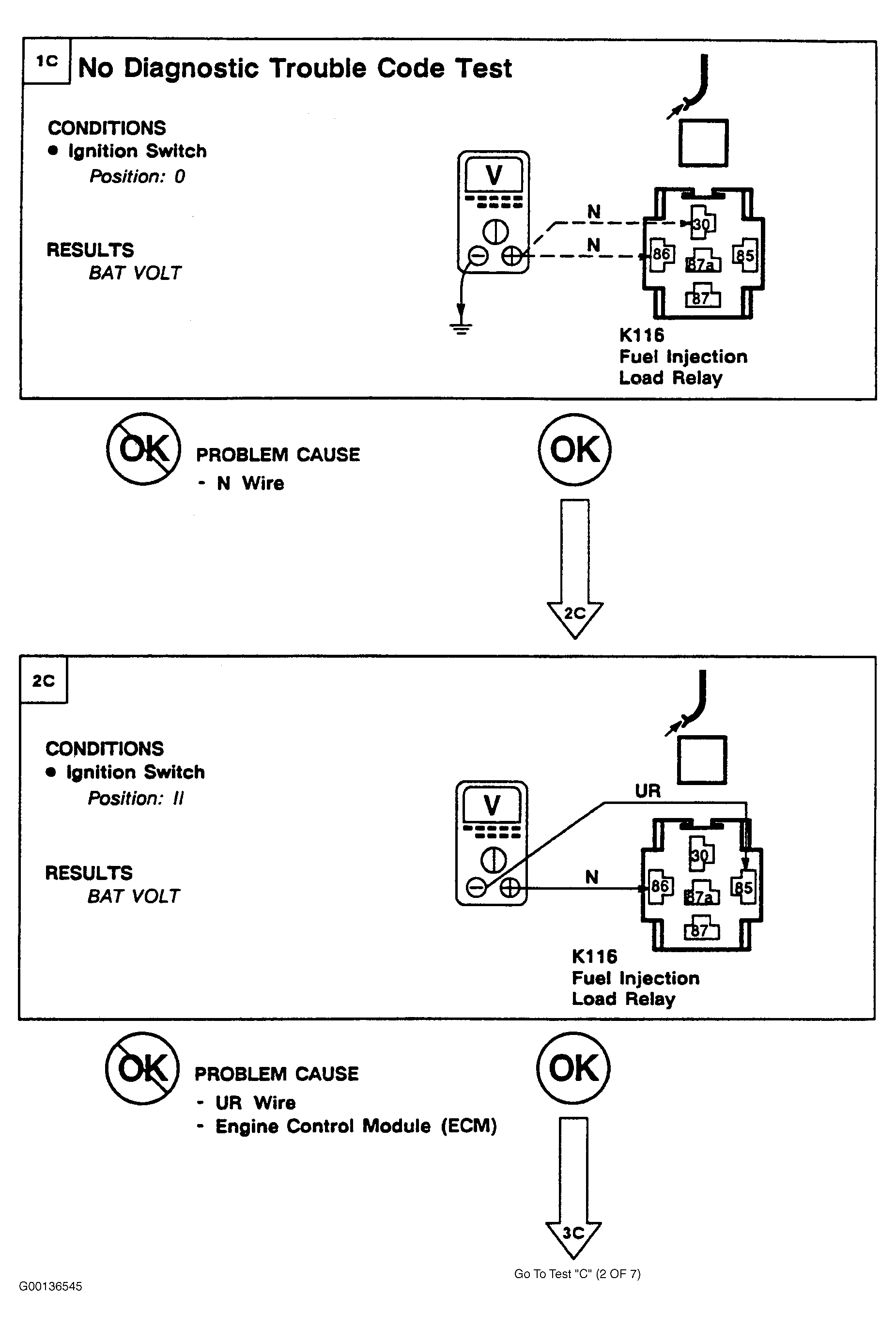

Fig 1: No Diagnostic Trouble Code Test "C" (1 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

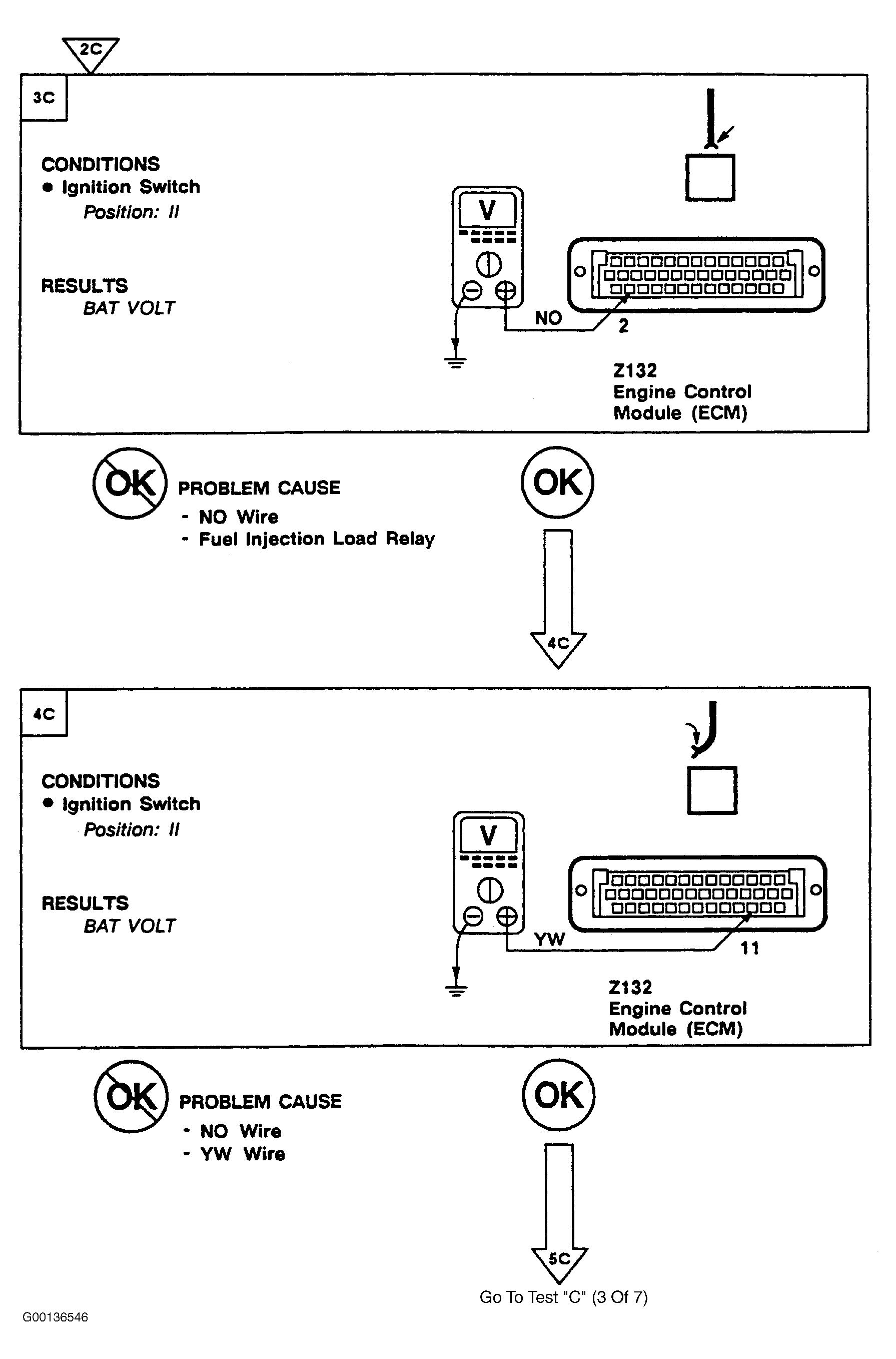

Fig 2: No Diagnostic Trouble Code Test "C" (2 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

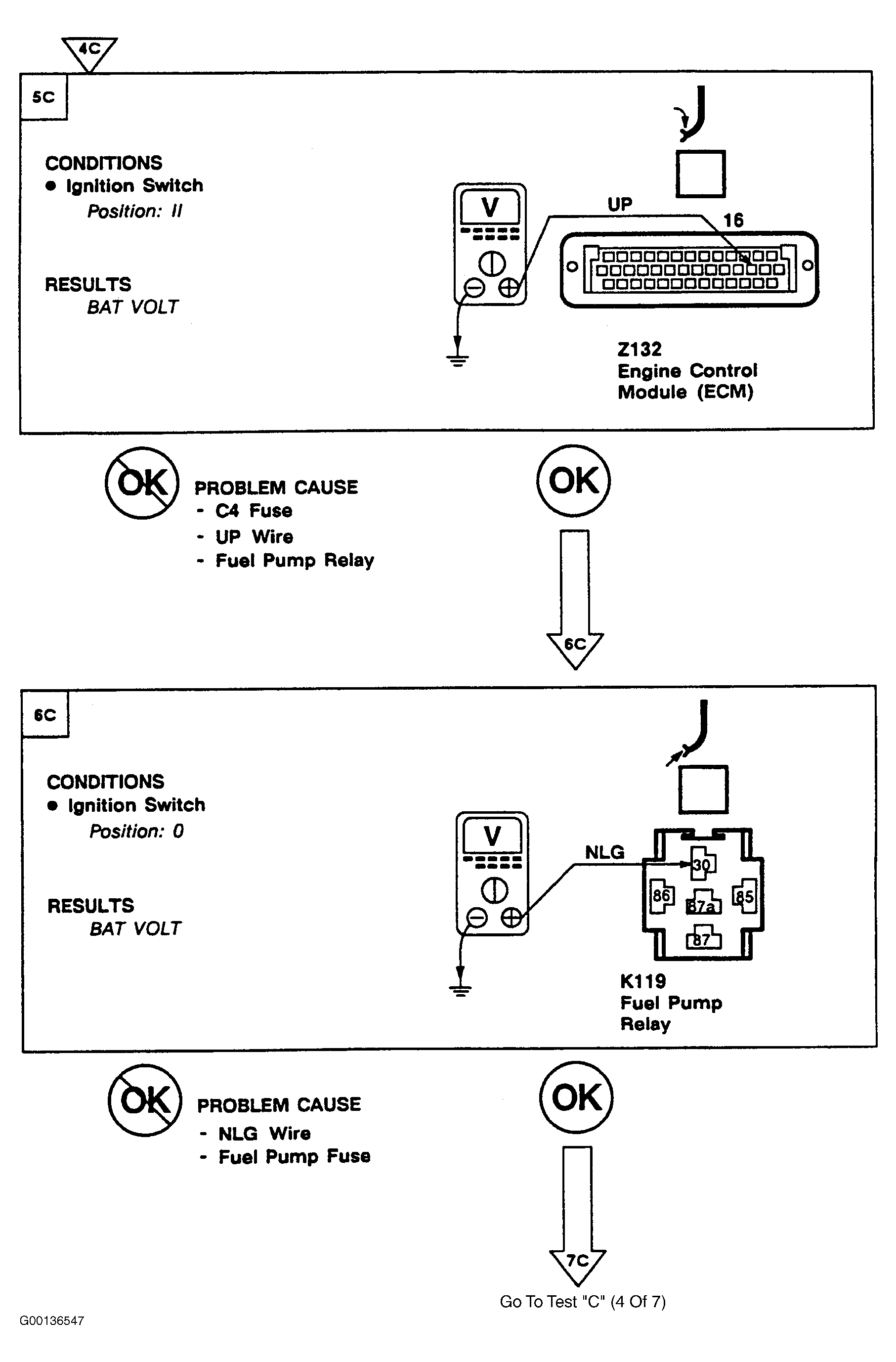

Fig 3: No Diagnostic Trouble Code Test "C" (3 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

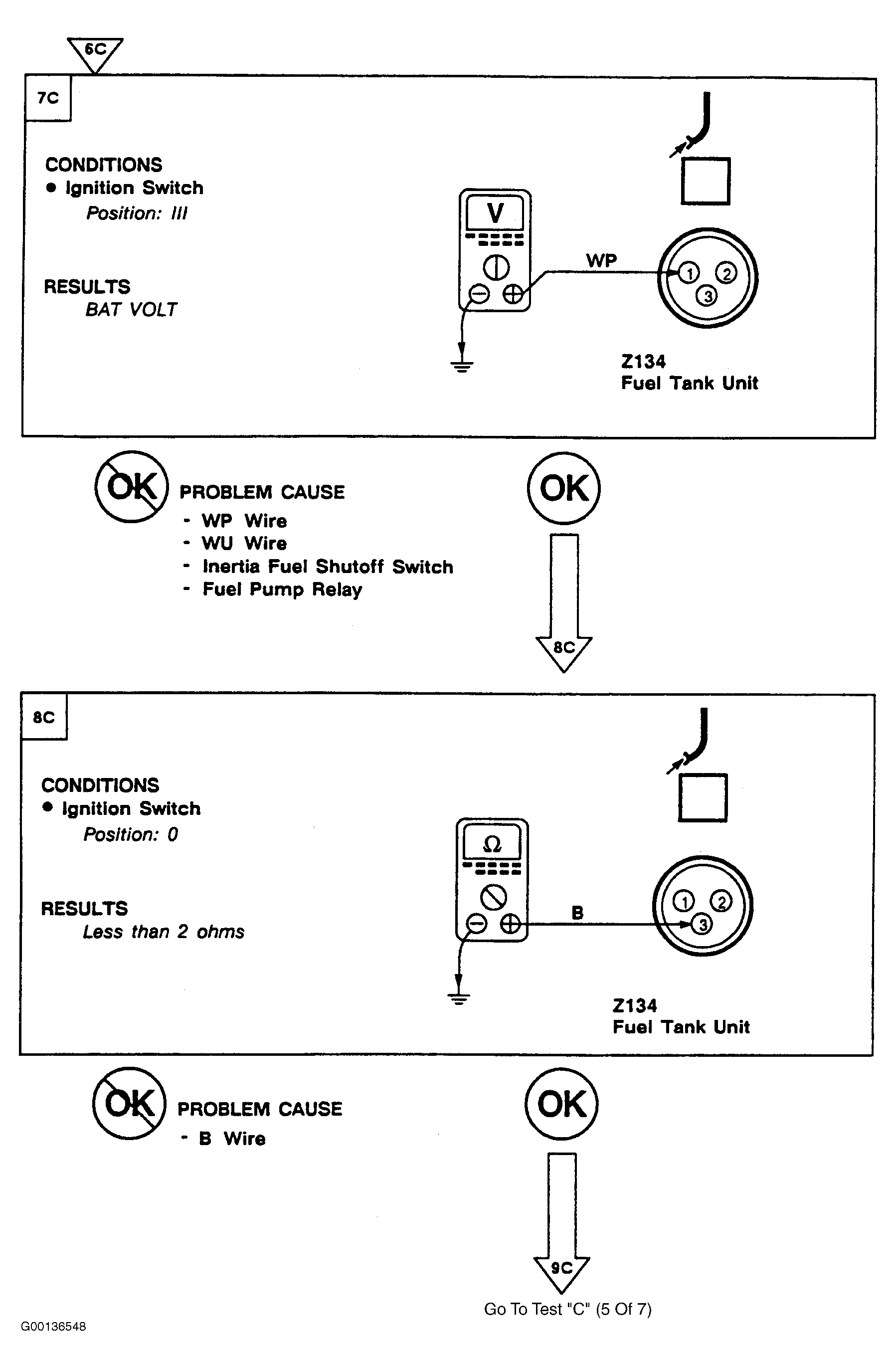

Fig 4: No Diagnostic Trouble Code Test "C" (4 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

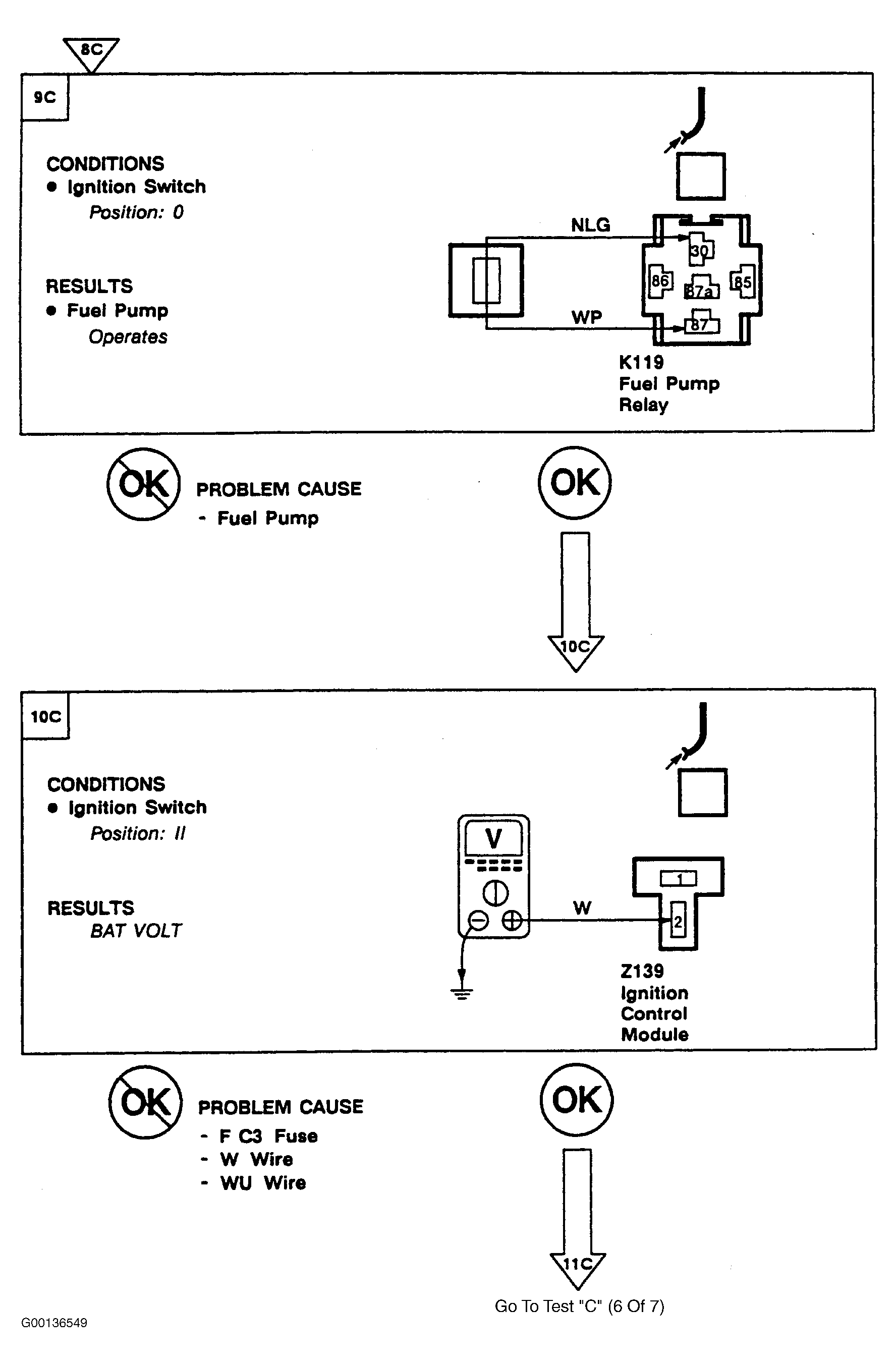

Fig 5: No Diagnostic Trouble Code Test "C" (5 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

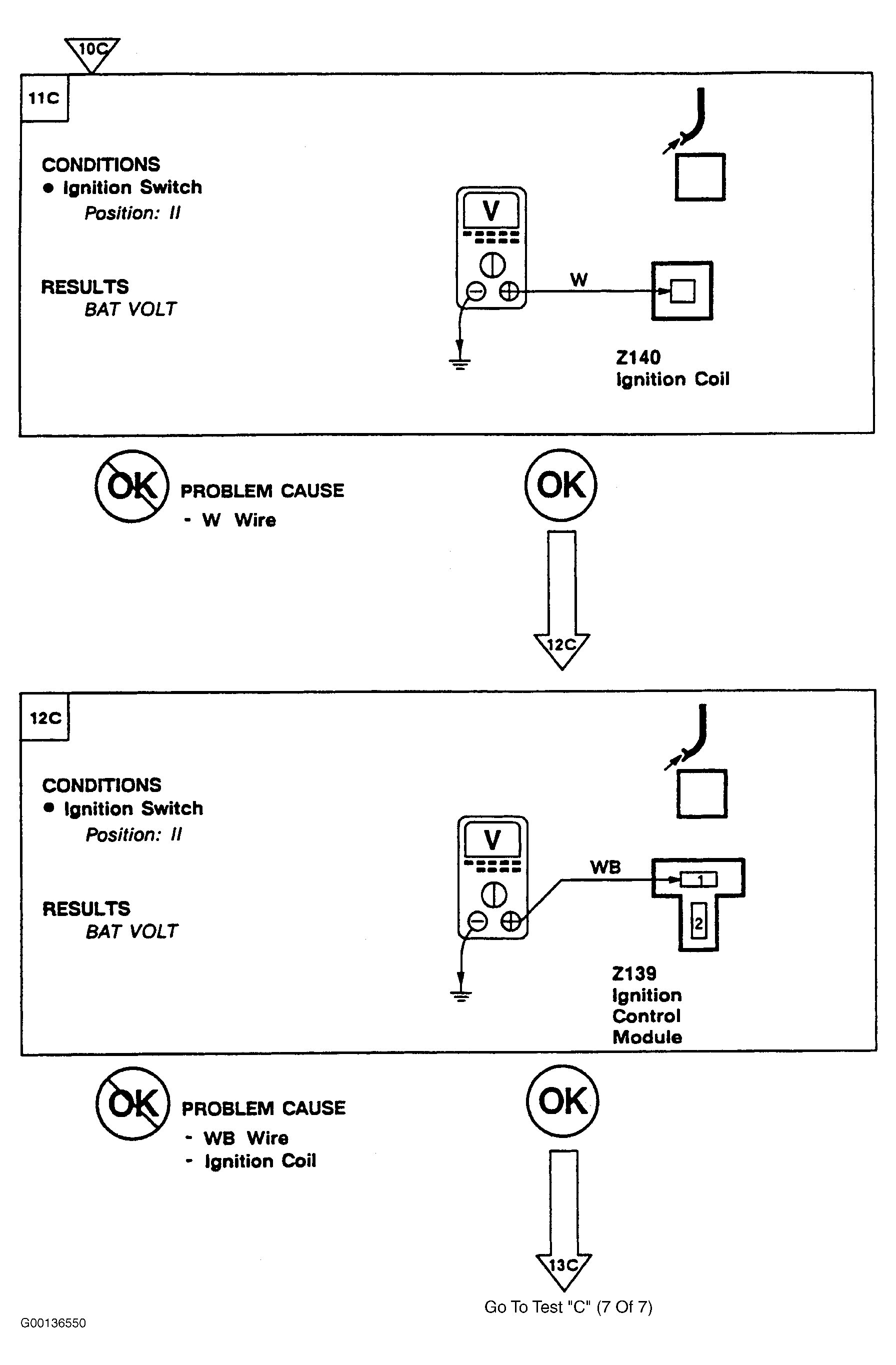

Fig 6: No Diagnostic Trouble Code Test "C" (6 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

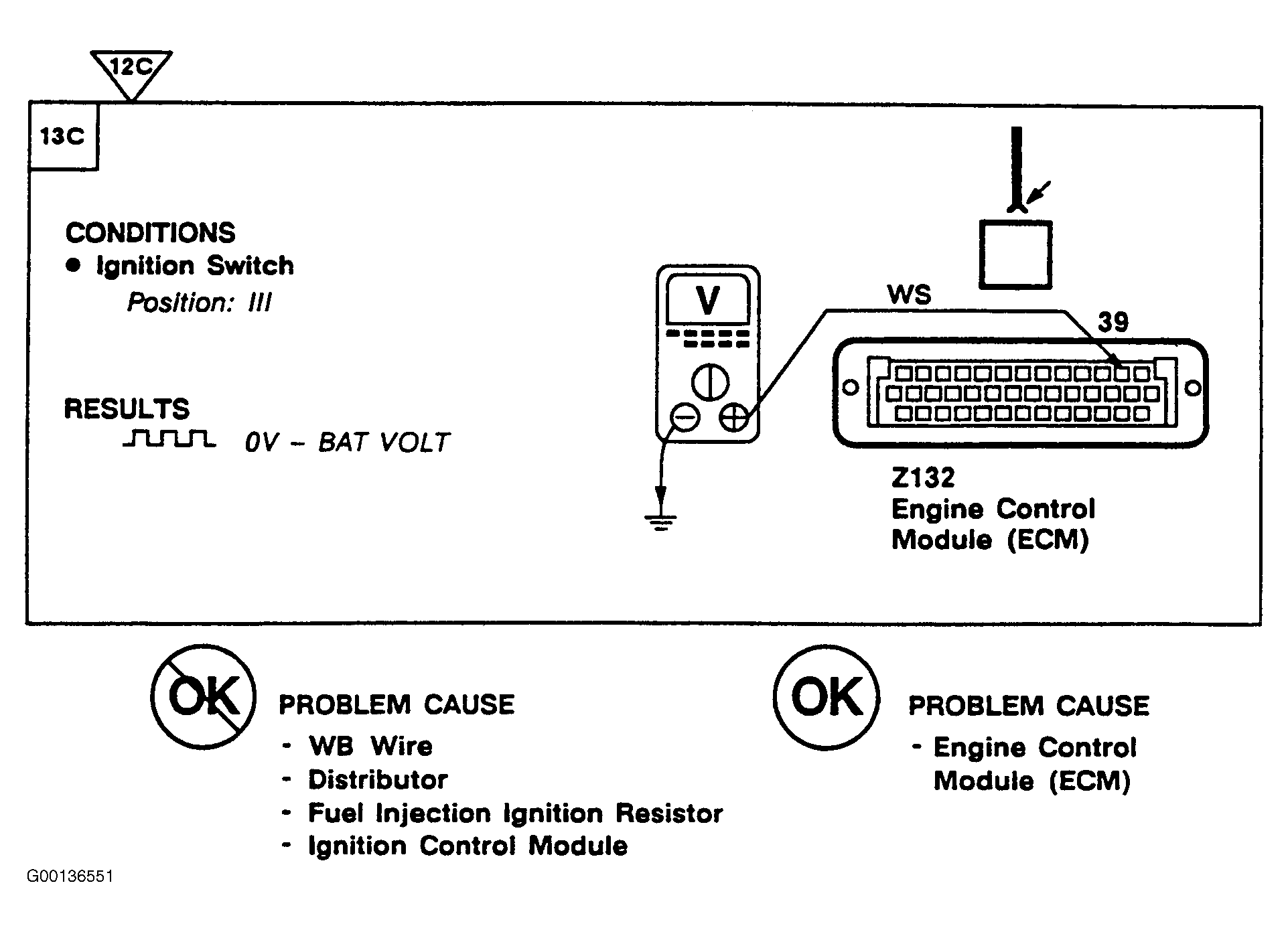

Fig 7: No Diagnostic Trouble Code Test "C" (7 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.
