Engine Performance

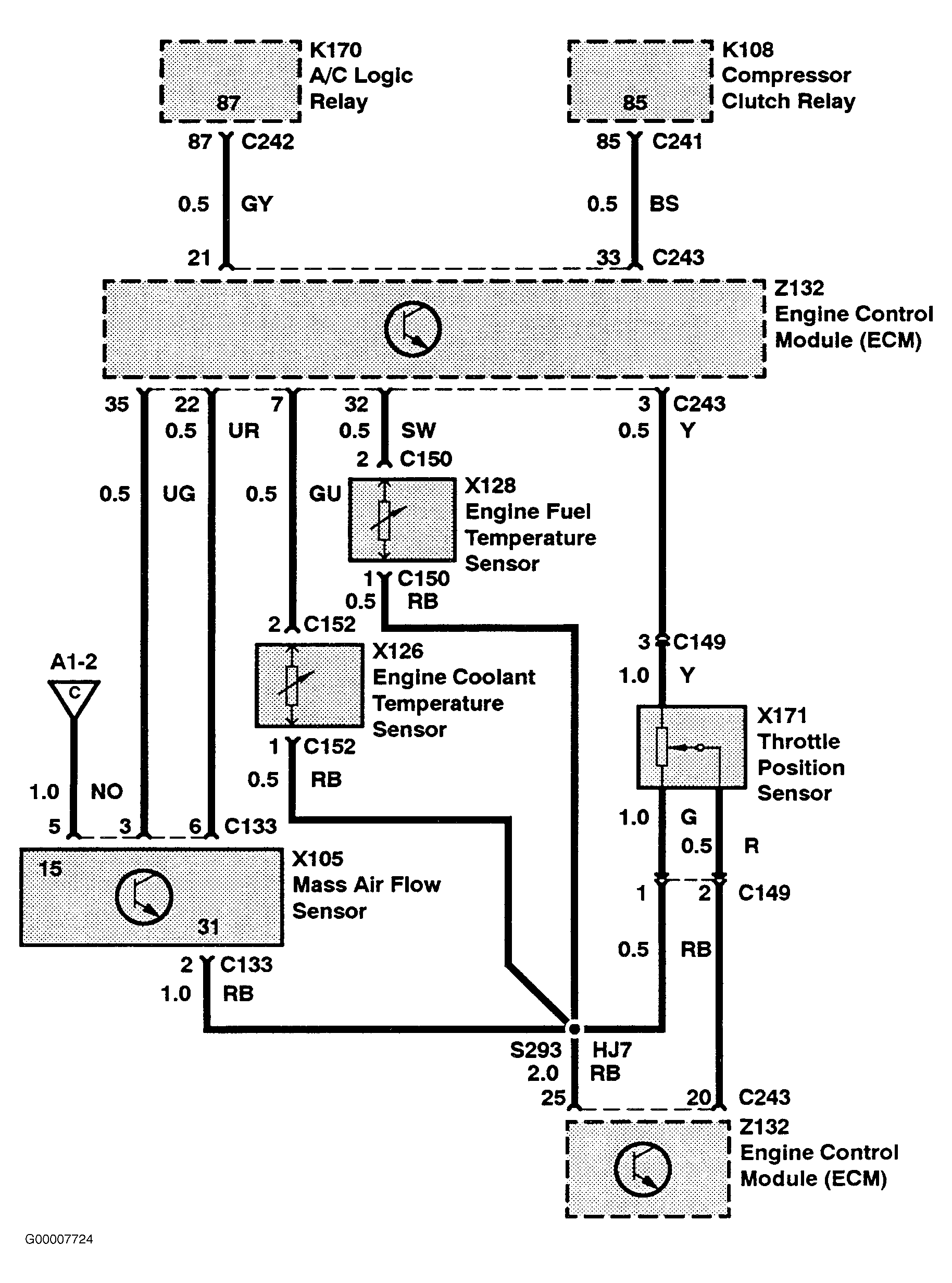

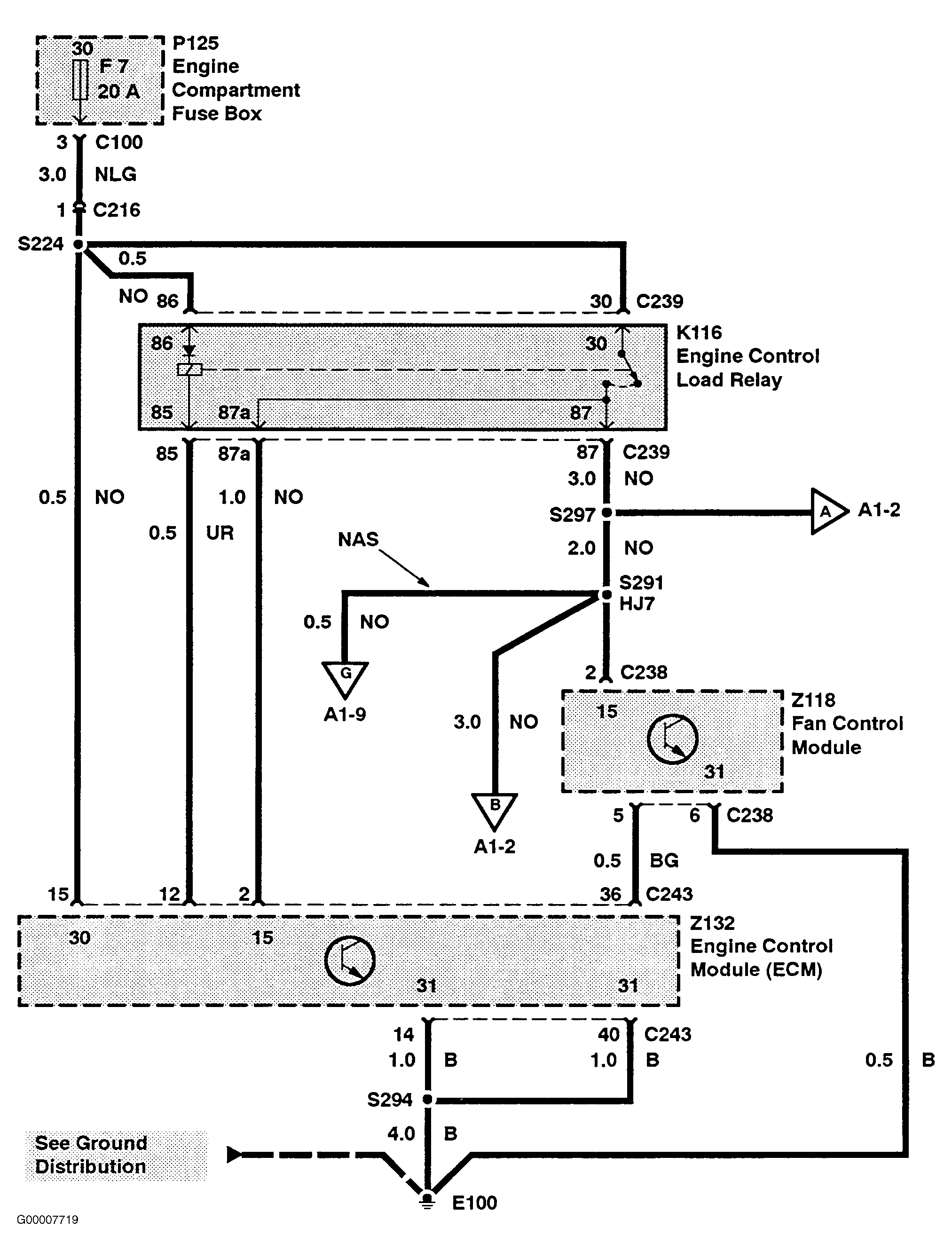

Fig 1: Engine Performance Wiring Diagram (3.9L MFI - 1 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

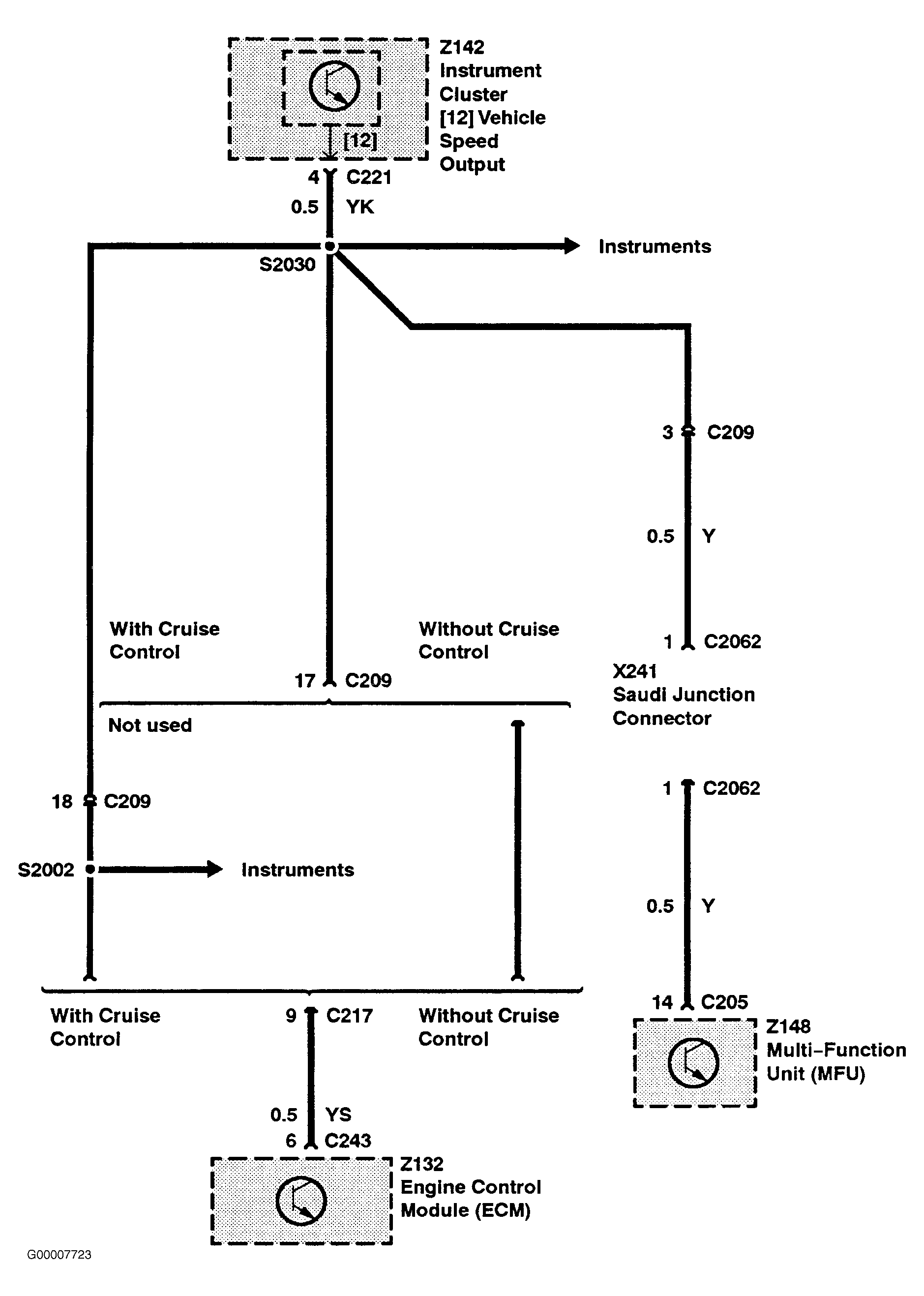

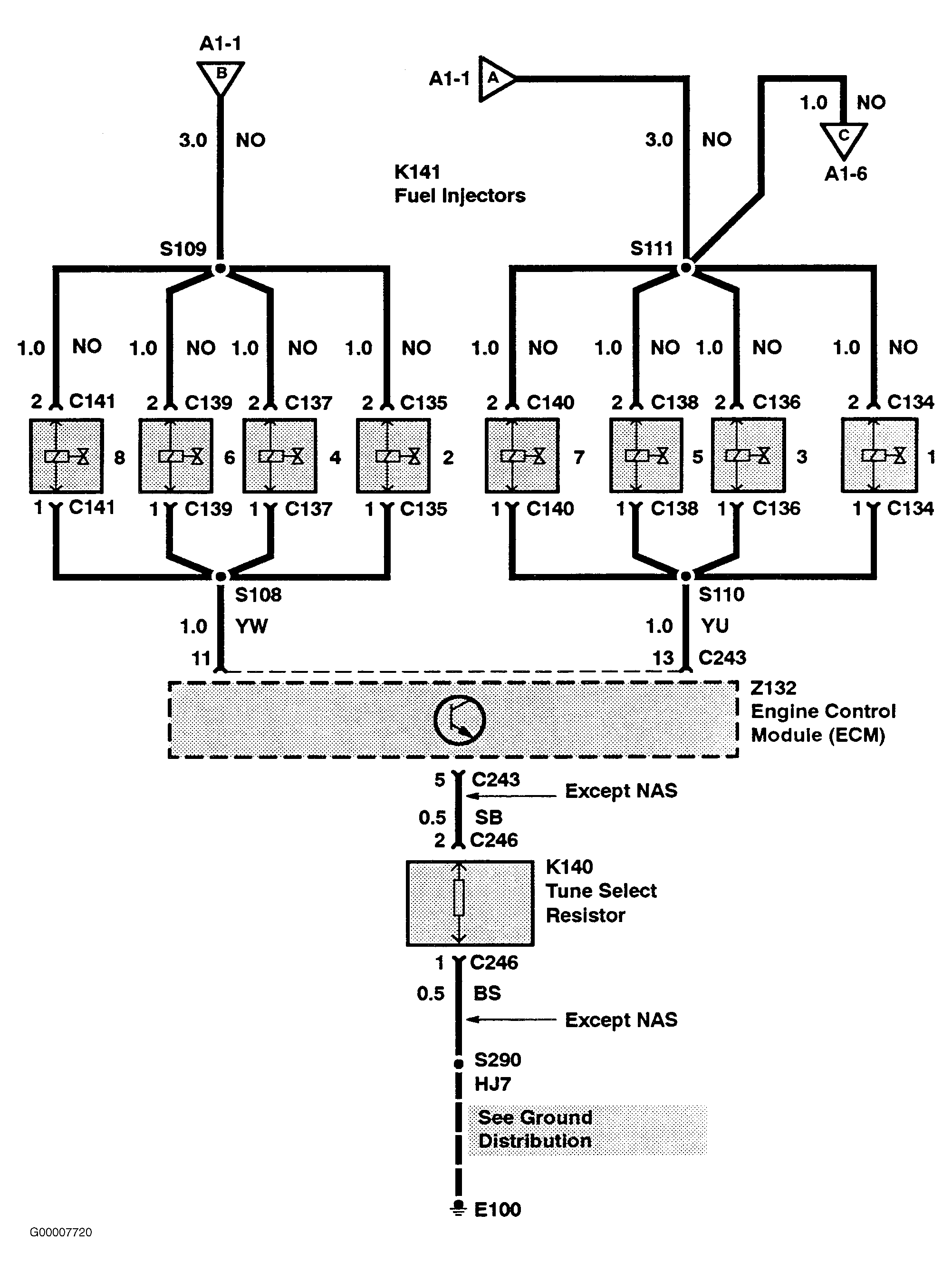

Fig 2: Engine Performance Wiring Diagram (3.9L MFI - 2 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

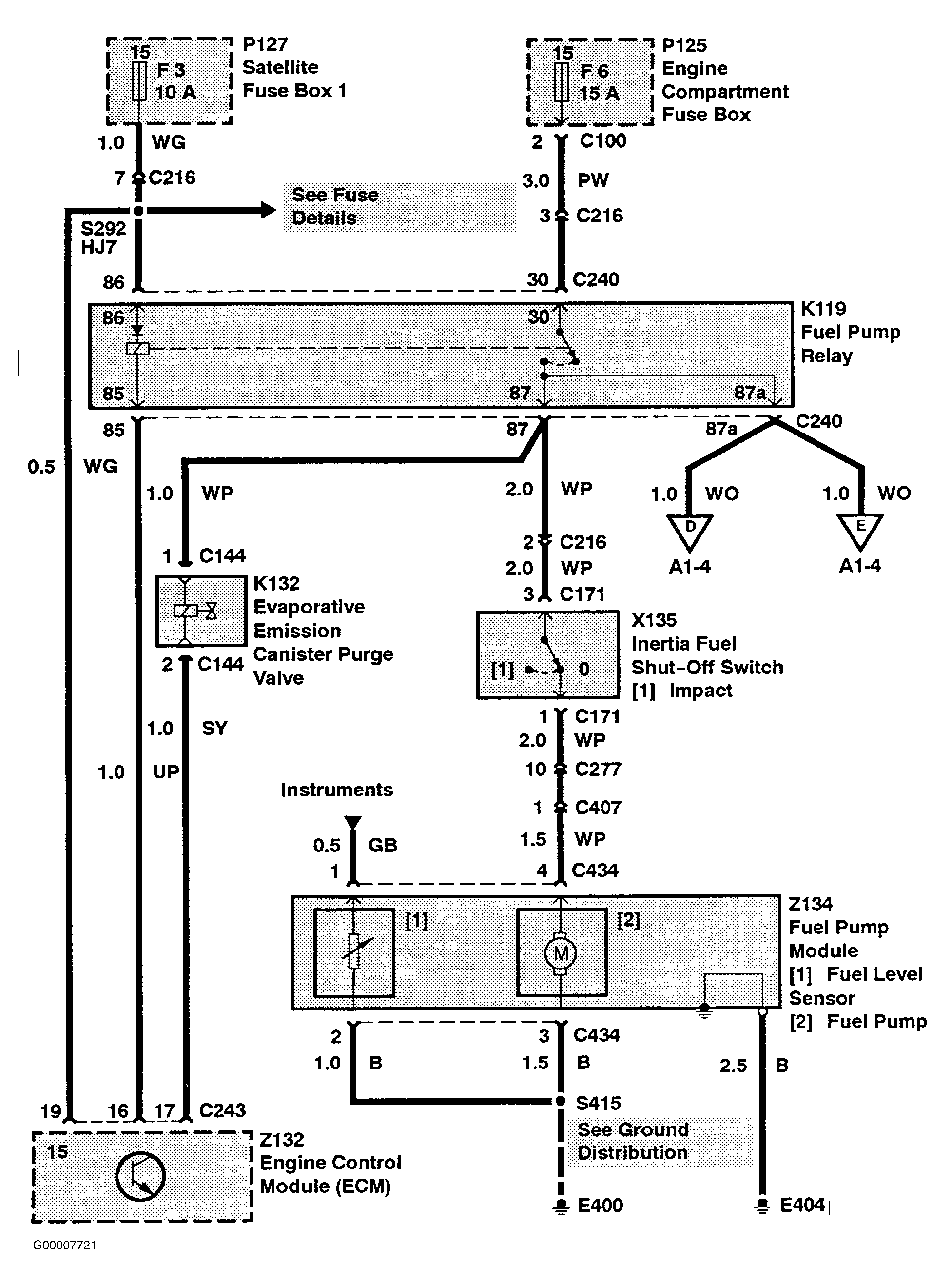

Fig 3: Engine Performance Wiring Diagram (3.9L MFI - 3 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

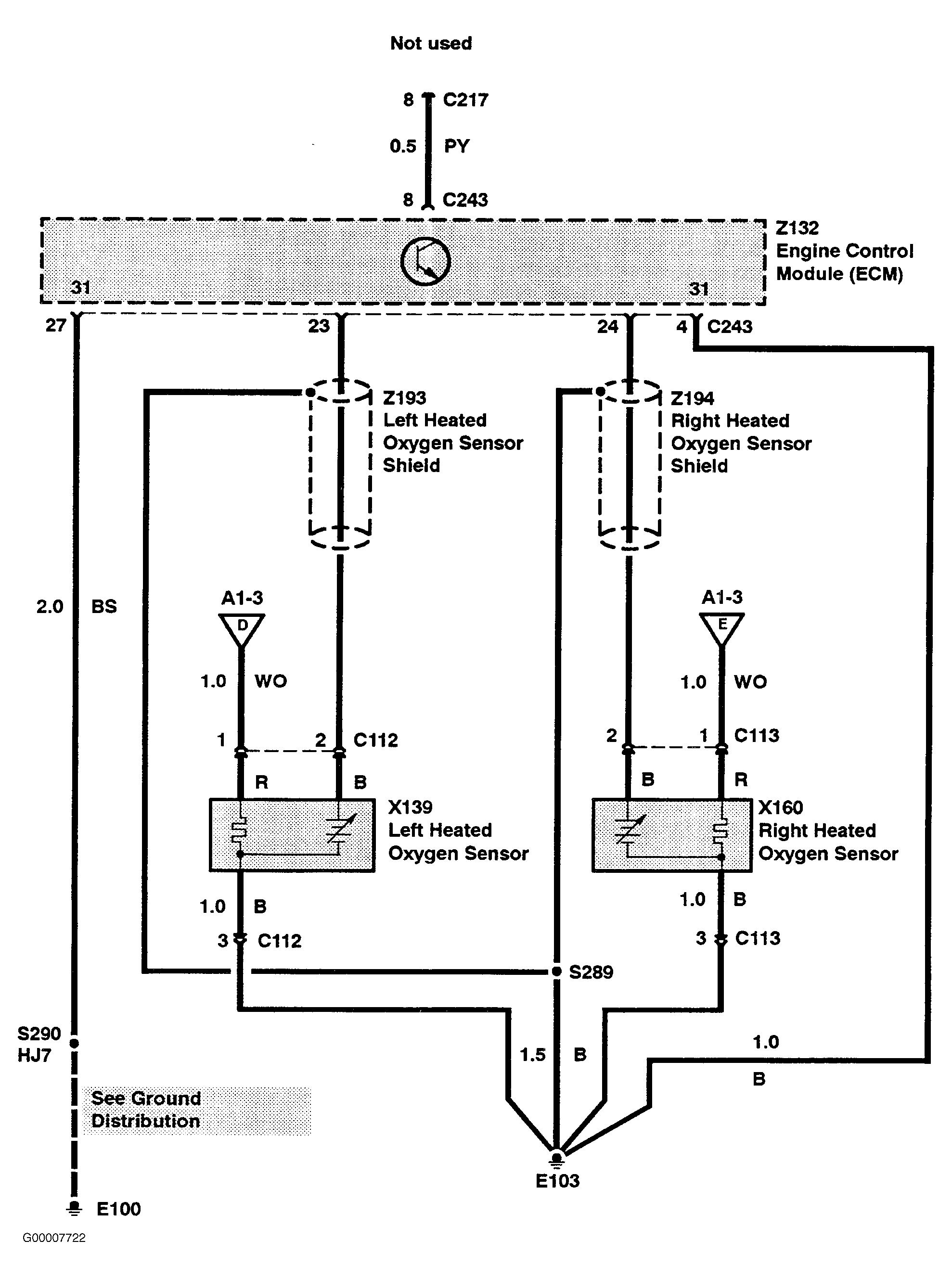

Fig 4: Engine Performance Wiring Diagram (3.9L MFI - 4 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 5: Engine Performance Wiring Diagram (3.9L MFI - 5 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 6: Engine Performance Wiring Diagram (3.9L MFI - 6 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

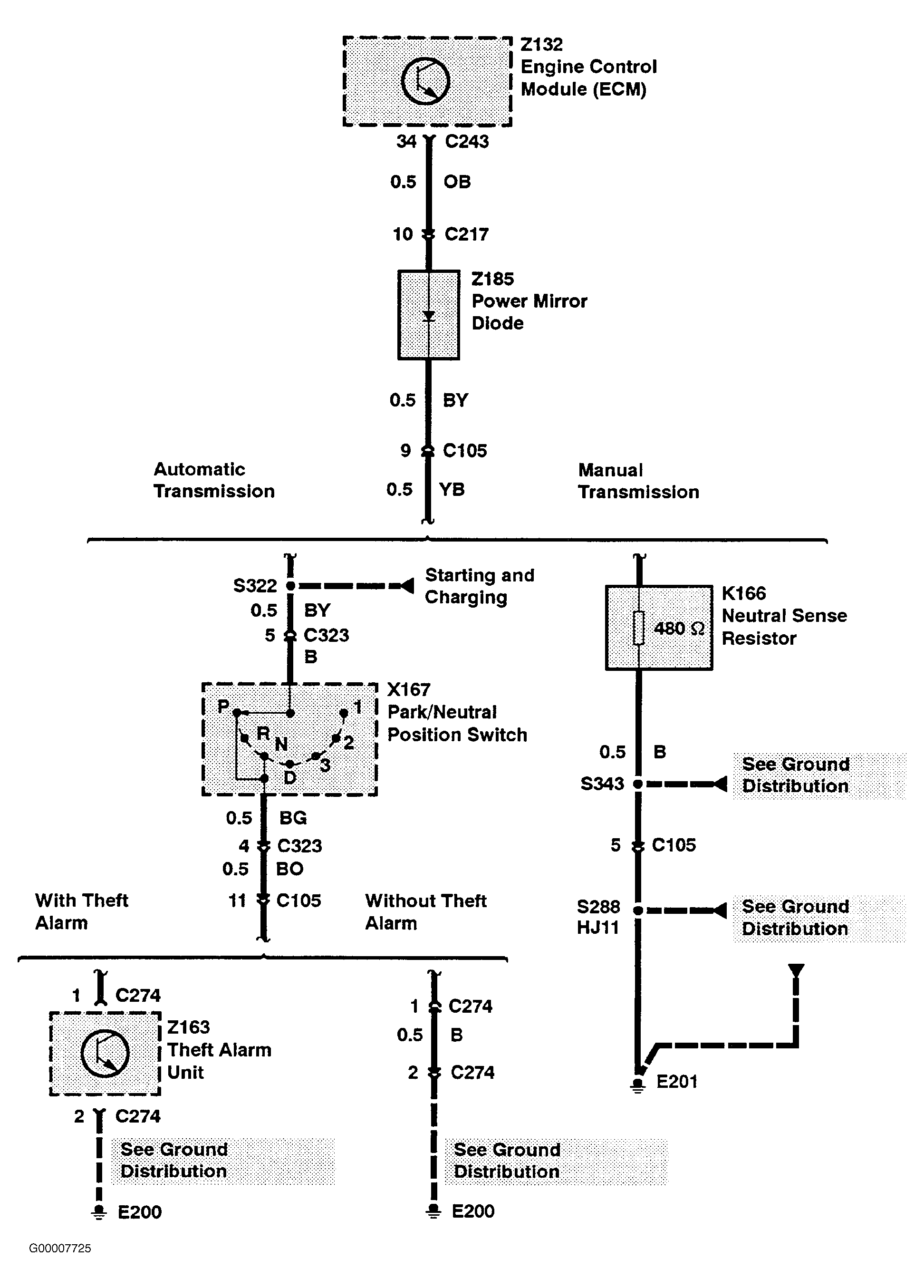

Fig 7: Engine Performance Wiring Diagram (3.9L MFI - 7 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

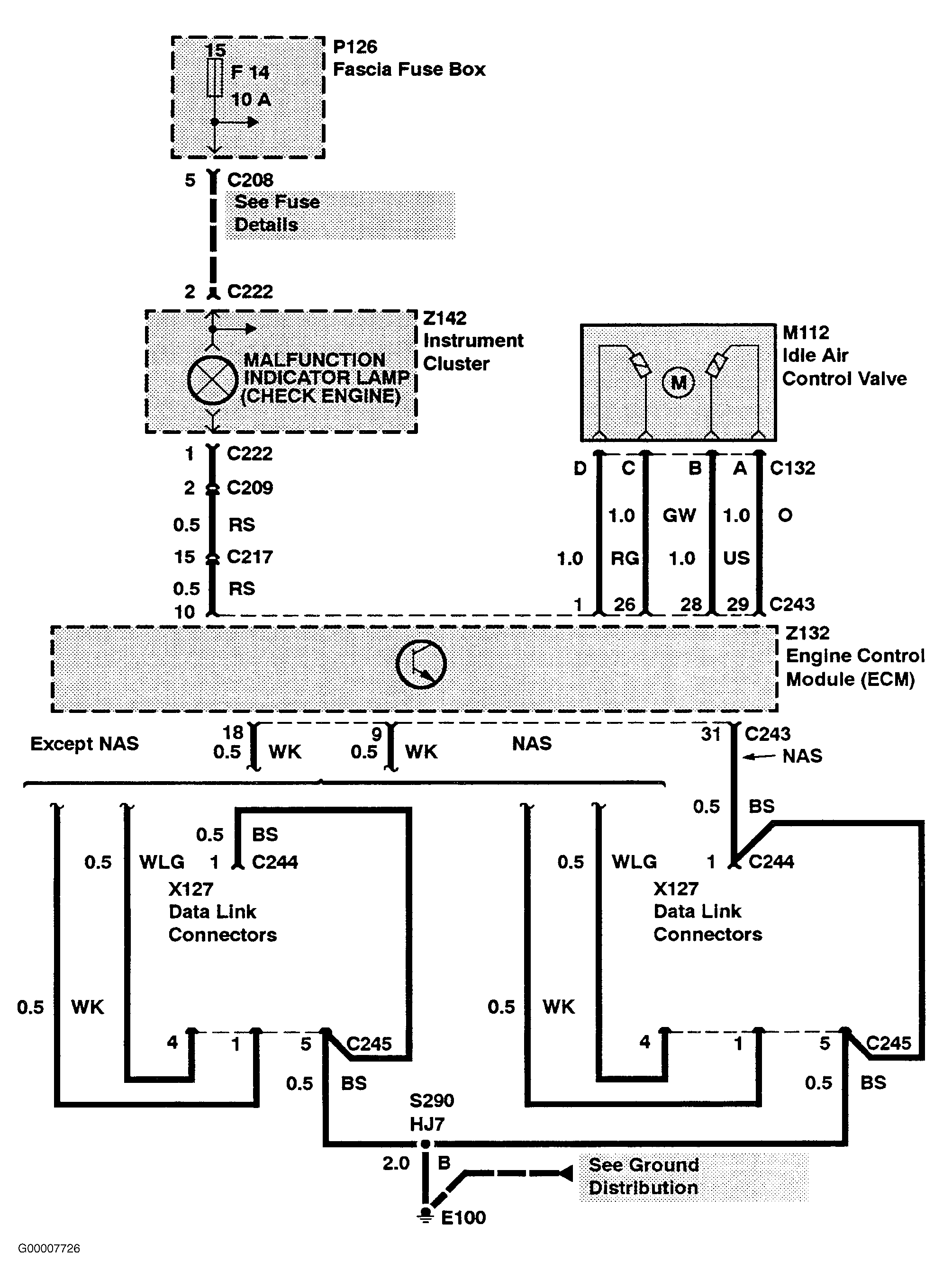

Fig 8: Engine Performance Wiring Diagram (3.9L MFI - 8 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 9: Engine Performance Wiring Diagram (3.9L MFI - 9 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

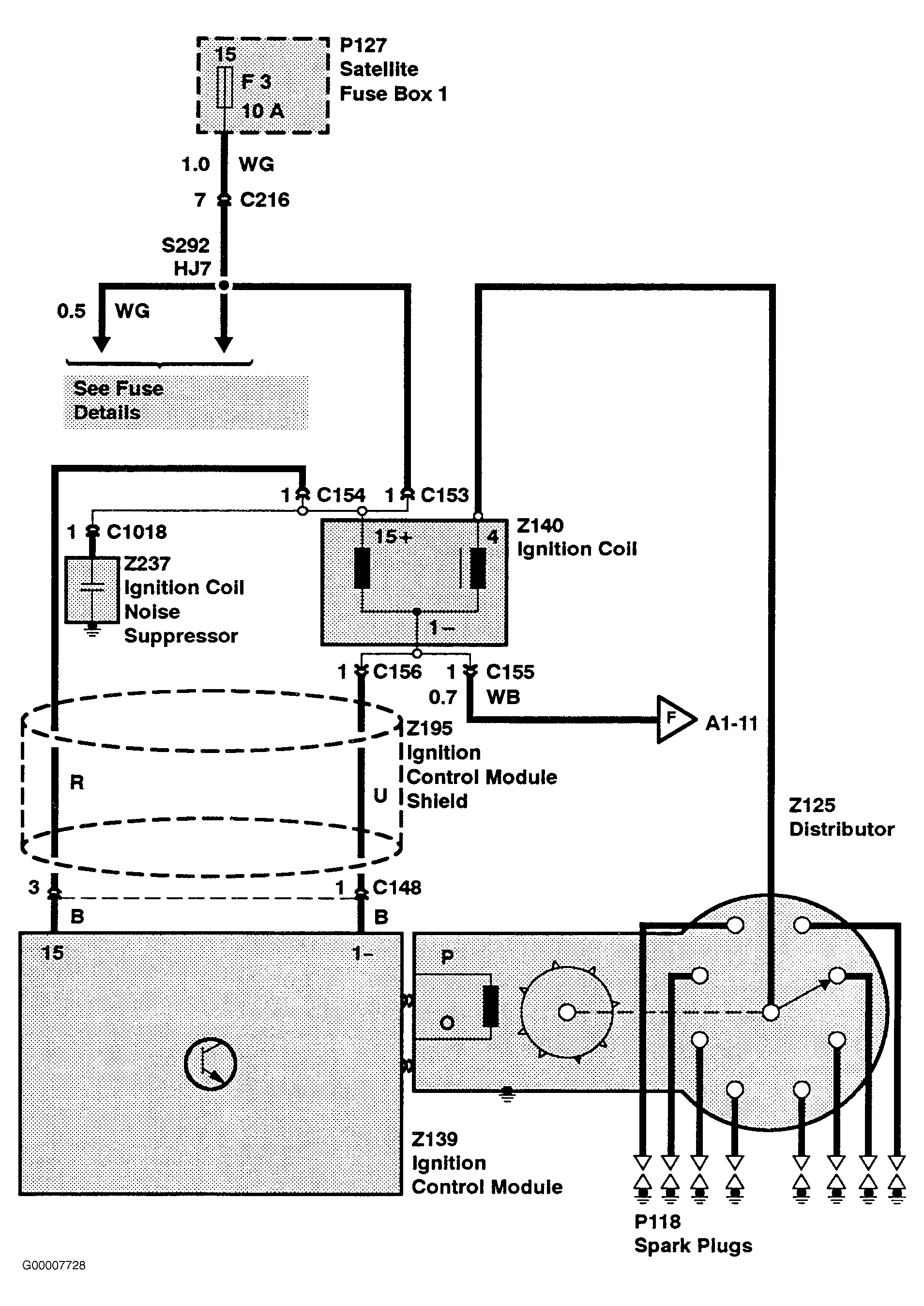

Fig 10: Engine Performance Wiring Diagram (3.9L MFI - 10 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.

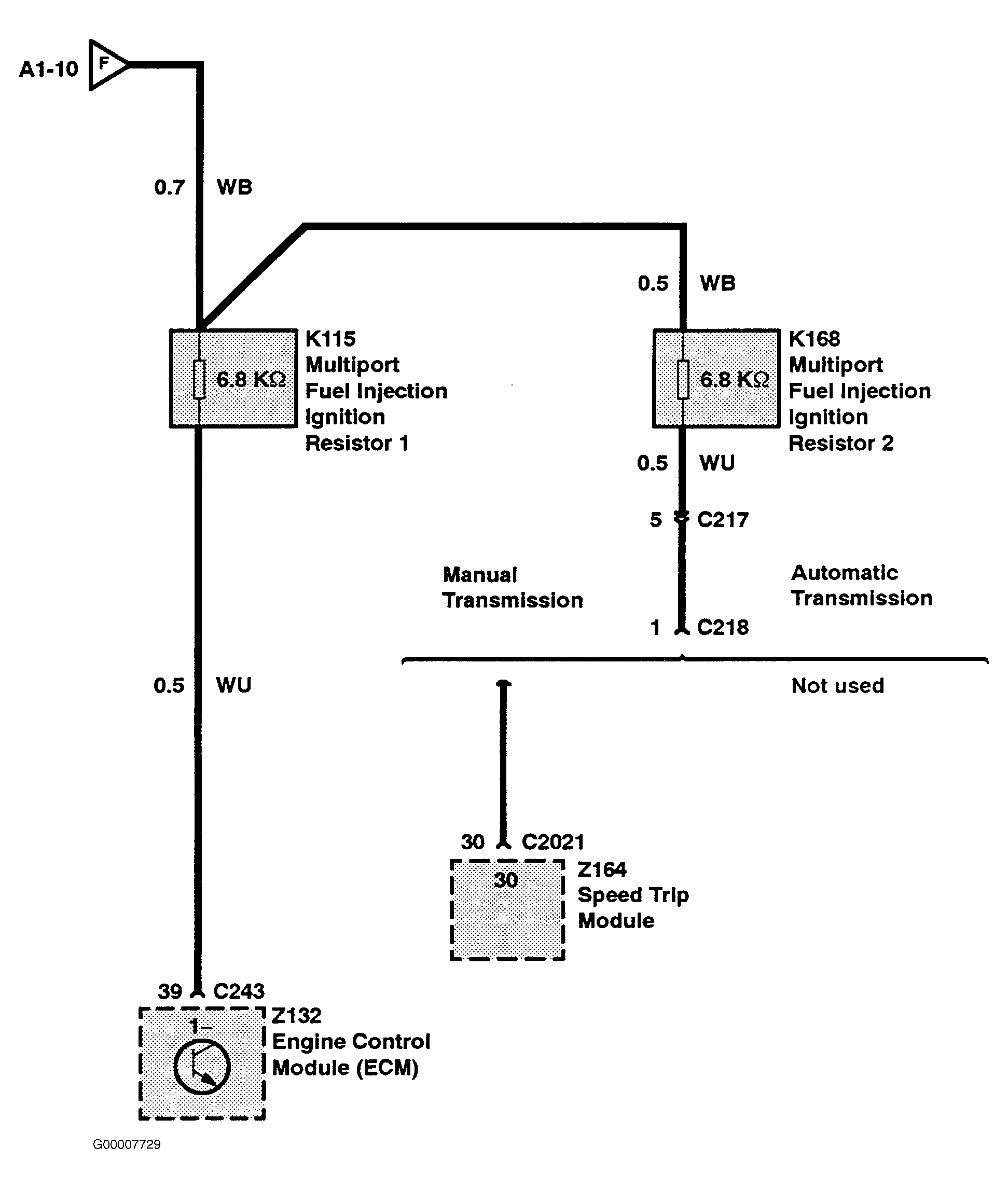

Fig 11: Engine Performance Wiring Diagram (3.9L MFI - 11 Of 11)

Courtesy of LAND ROVER NORTH AMERICA, INC.
