Drive Belt Inspection
NOTE:
All models are equipped with automatic belt tensioner. Belt tension adjustment is not required. If belt is removed and reinstalled, ensure direction of belt rotation is not changed.

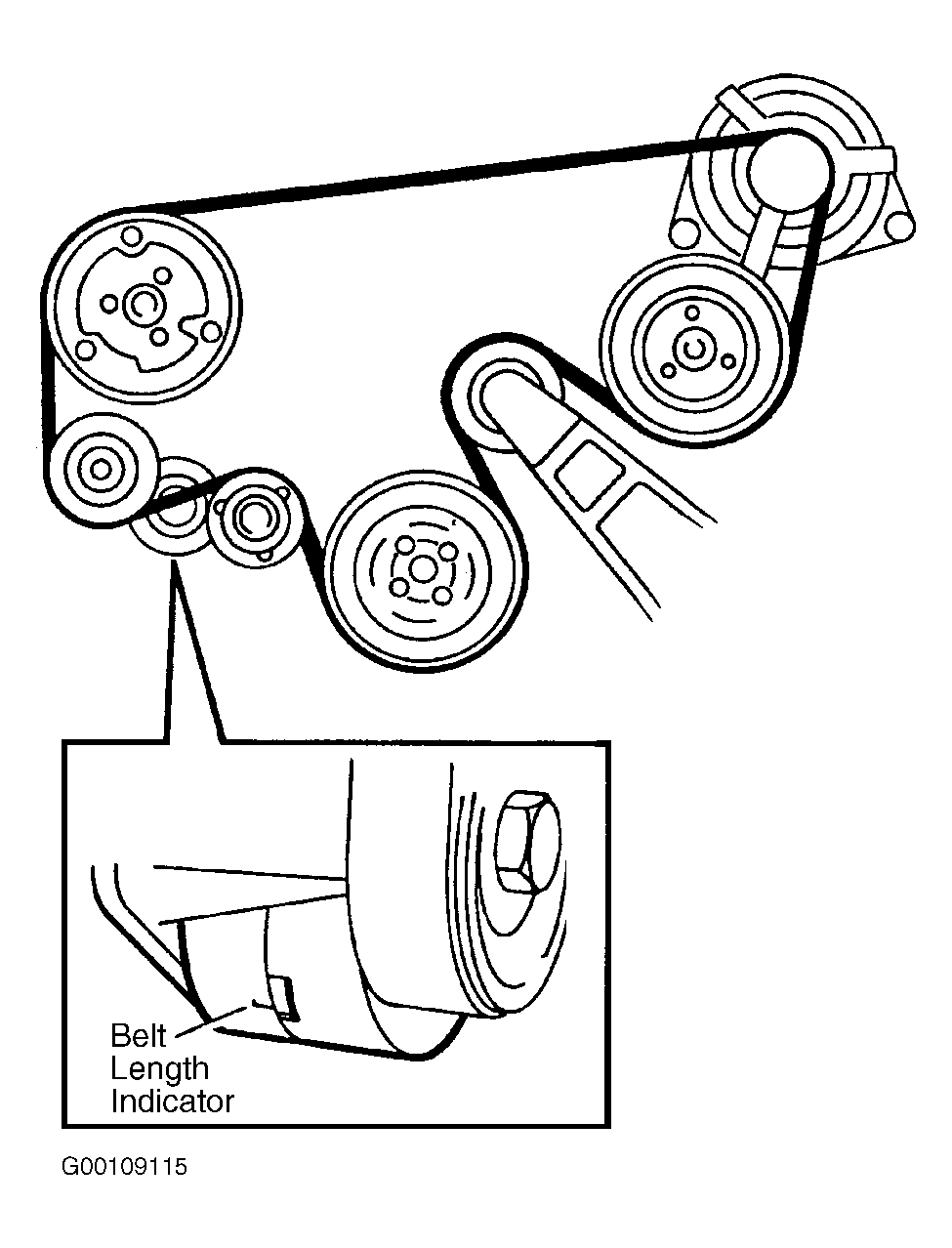

Check condition of drive belt, renew belt that shows sings of wear, slipping or oil contamination. Check belt length indicator. See Fig 1 . Belt must be renewed before indicator reaches right end of slot.
