Crankshaft & Cam Position Sensor Monitoring

For crankshaft and cam position sensor monitoring information see Fig 1 -Fig 5 .

NOTE: This monitor covers information for DTC P0335, P0336 and P0340.

Fig 1: Crankshaft & Cam Position Sensor Monitoring Description (1 Of 2)

G00293742

Courtesy of LAND ROVER NORTH AMERICA, INC.

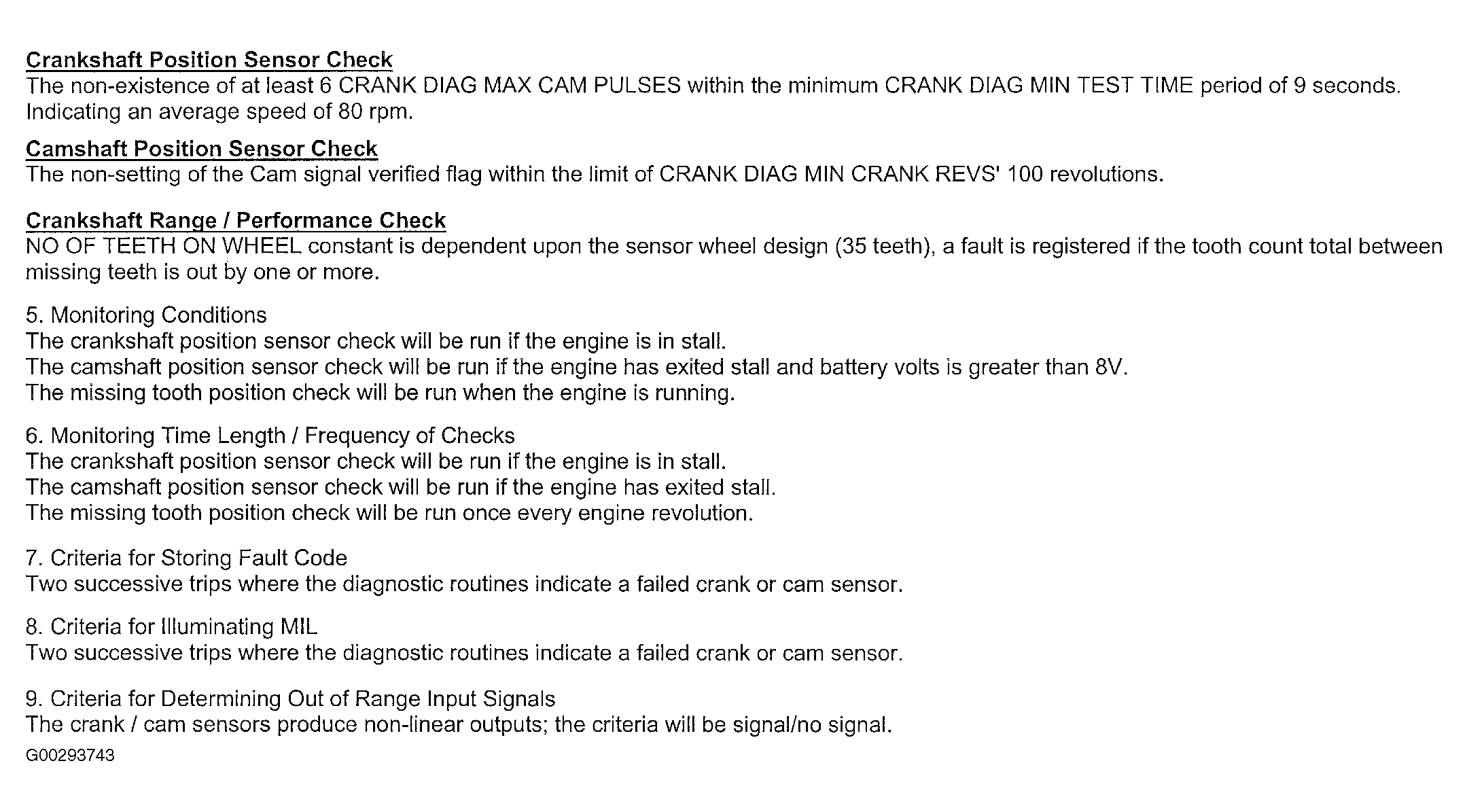

Fig 2: Crankshaft & Cam Position Sensor Monitoring Description (2 Of 2)

G00293743

Courtesy of LAND ROVER NORTH AMERICA, INC.

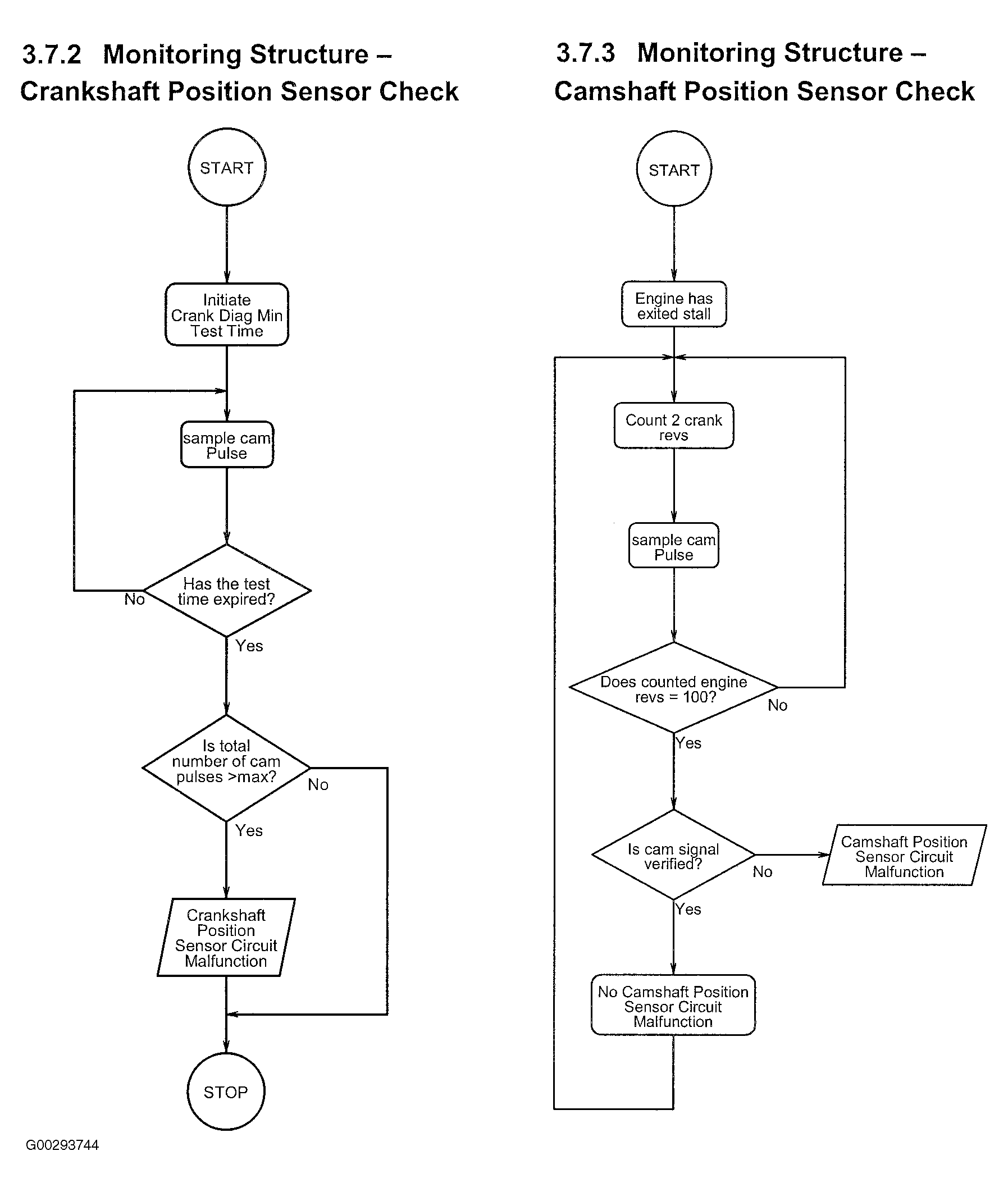

Fig 3: Crankshaft & Cam Position Sensor Monitoring Structure (1 Of 2)

G00293744

Courtesy of LAND ROVER NORTH AMERICA, INC.

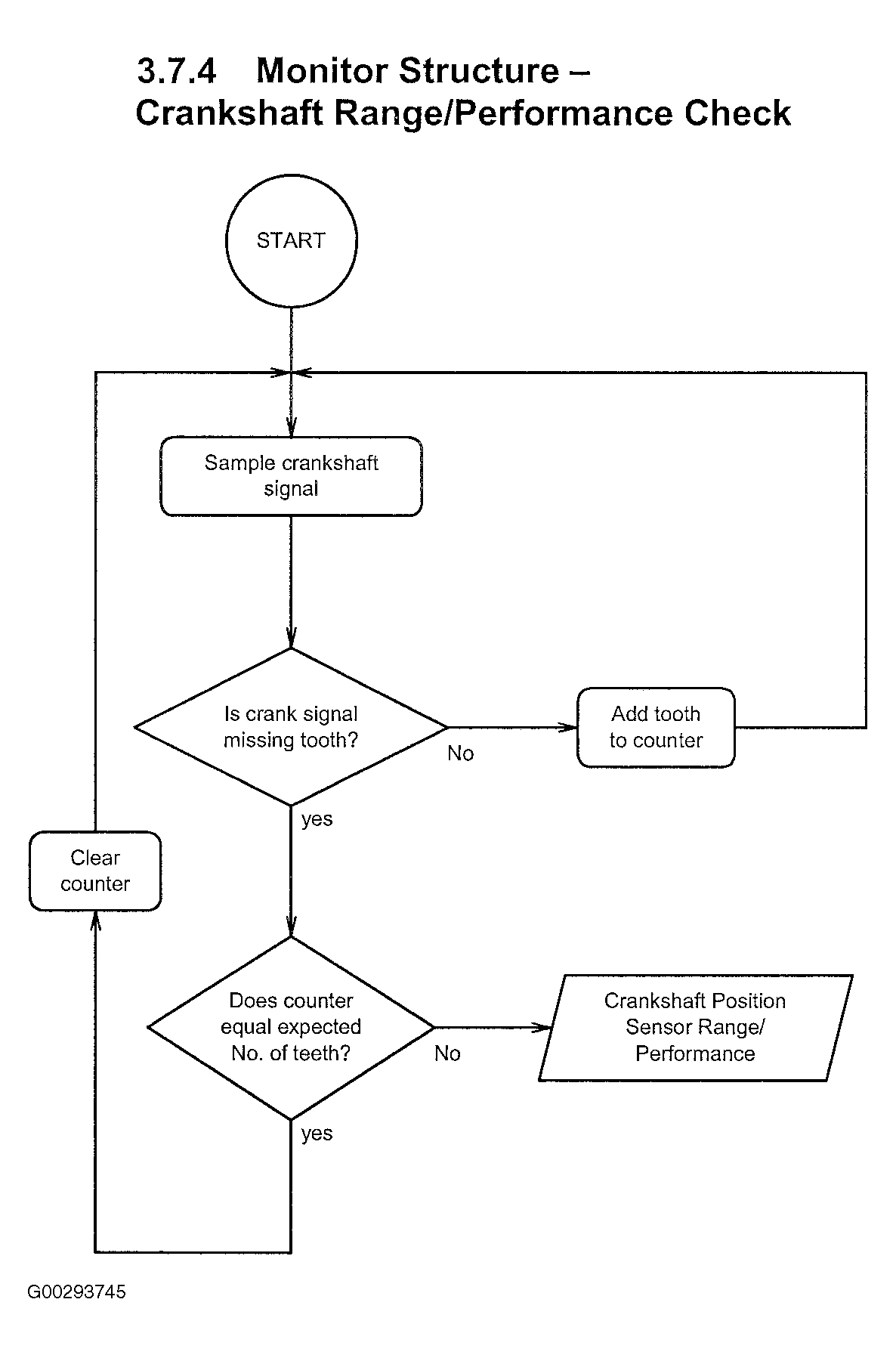

Fig 4: Crankshaft & Cam Position Sensor Monitoring Structure (2 Of 2)

G00293745

Courtesy of LAND ROVER NORTH AMERICA, INC.

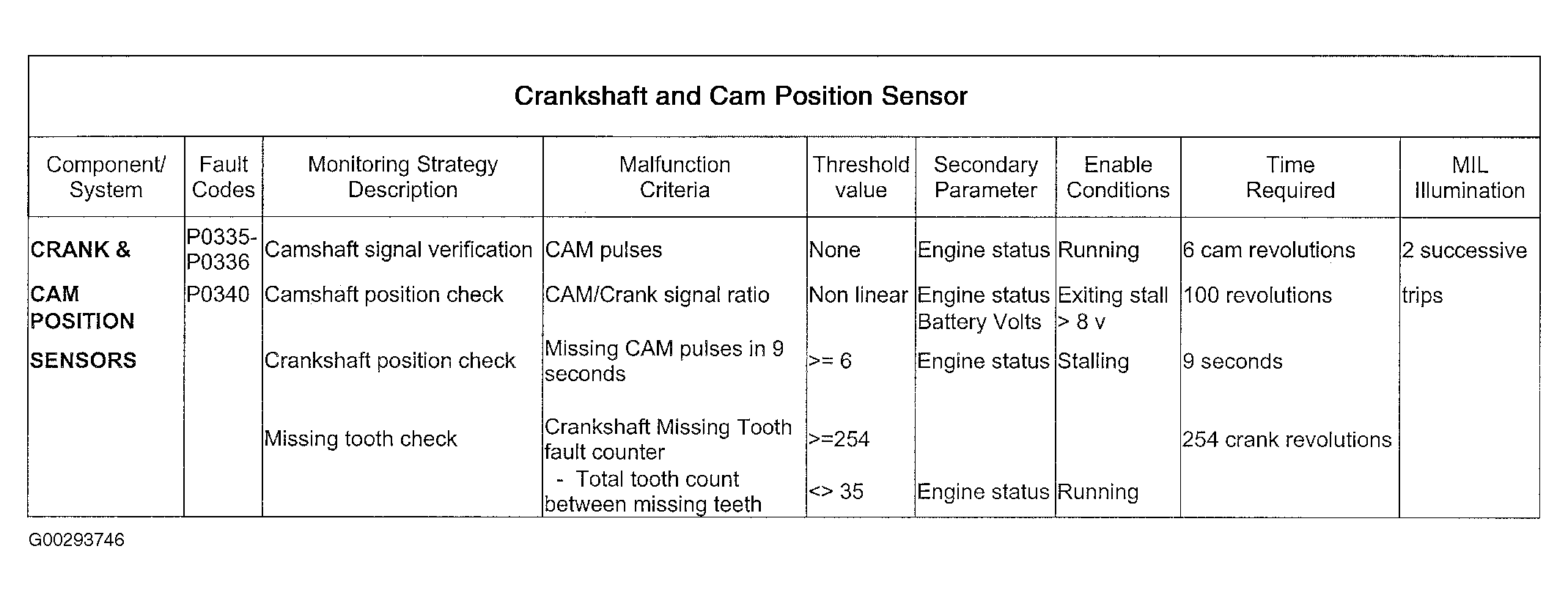

Fig 5: Crankshaft & Cam Position Sensor Monitoring Operation

G00293746

Courtesy of LAND ROVER NORTH AMERICA, INC.
