Power Supplies Monitoring

For power supplies monitoring information see Fig 1 -Fig 3 .

NOTE: This monitor covers information for DTC P0560, P0562 and P0563.

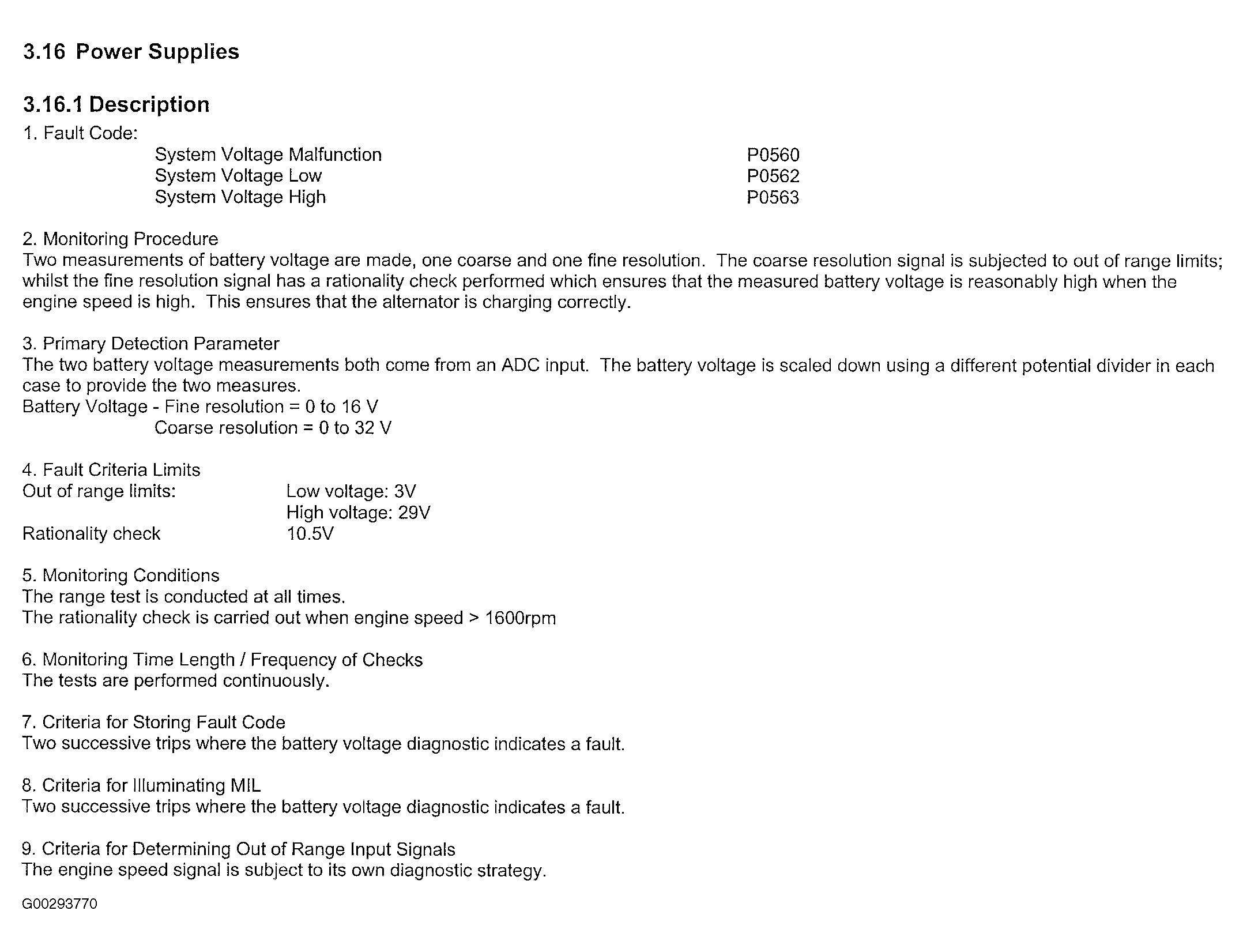

Fig 1: Power Supplies Monitoring Description

Courtesy of LAND ROVER NORTH AMERICA, INC.

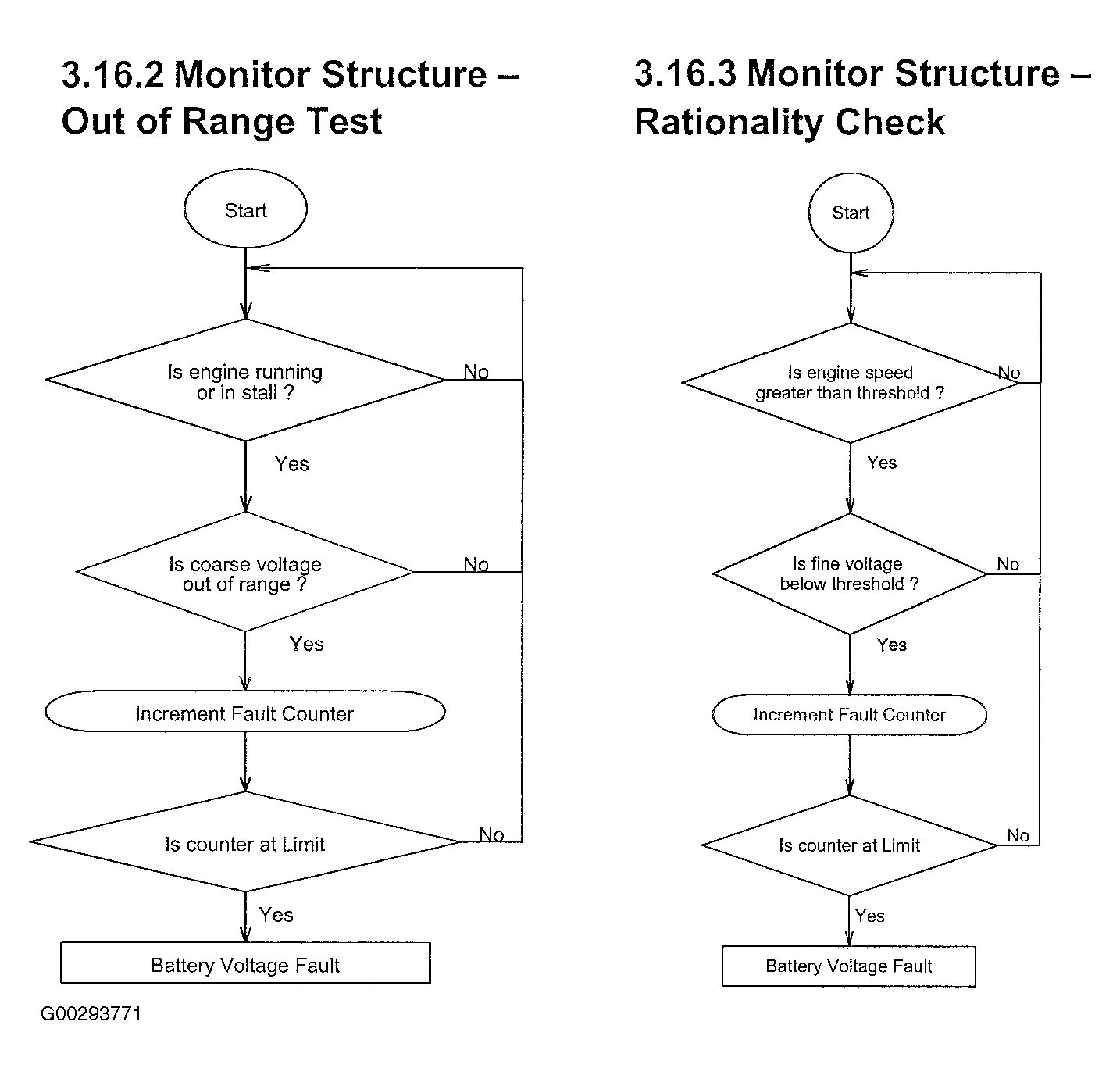

Fig 2: Power Supplies Monitoring Structure

Courtesy of LAND ROVER NORTH AMERICA, INC.

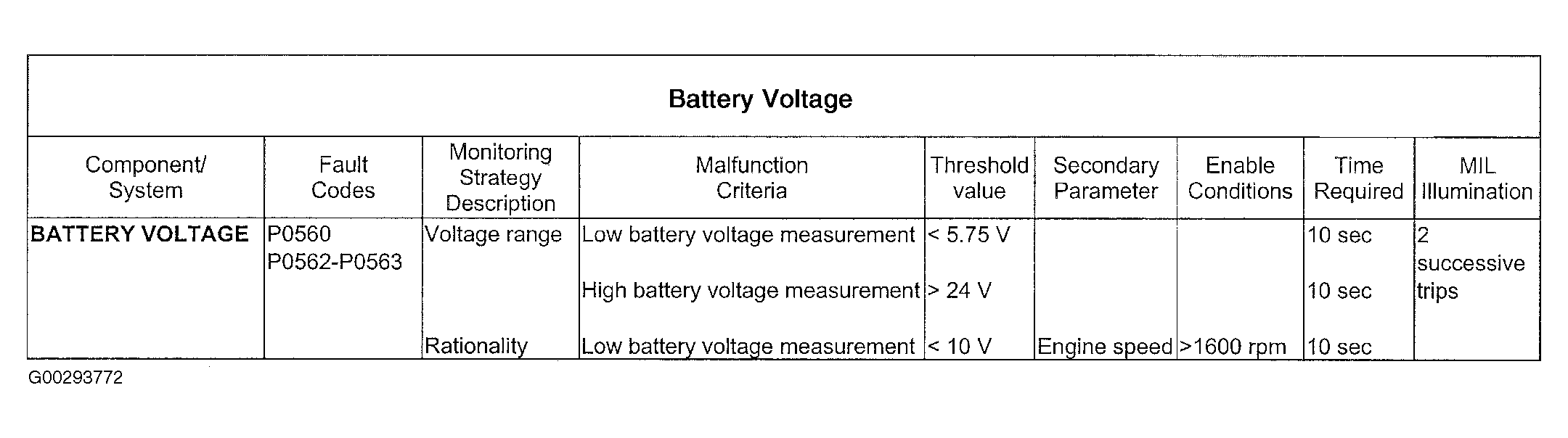

Fig 3: Power Supplies Monitoring Operation

Courtesy of LAND ROVER NORTH AMERICA, INC.
