Control Units
CONTROL UNITS

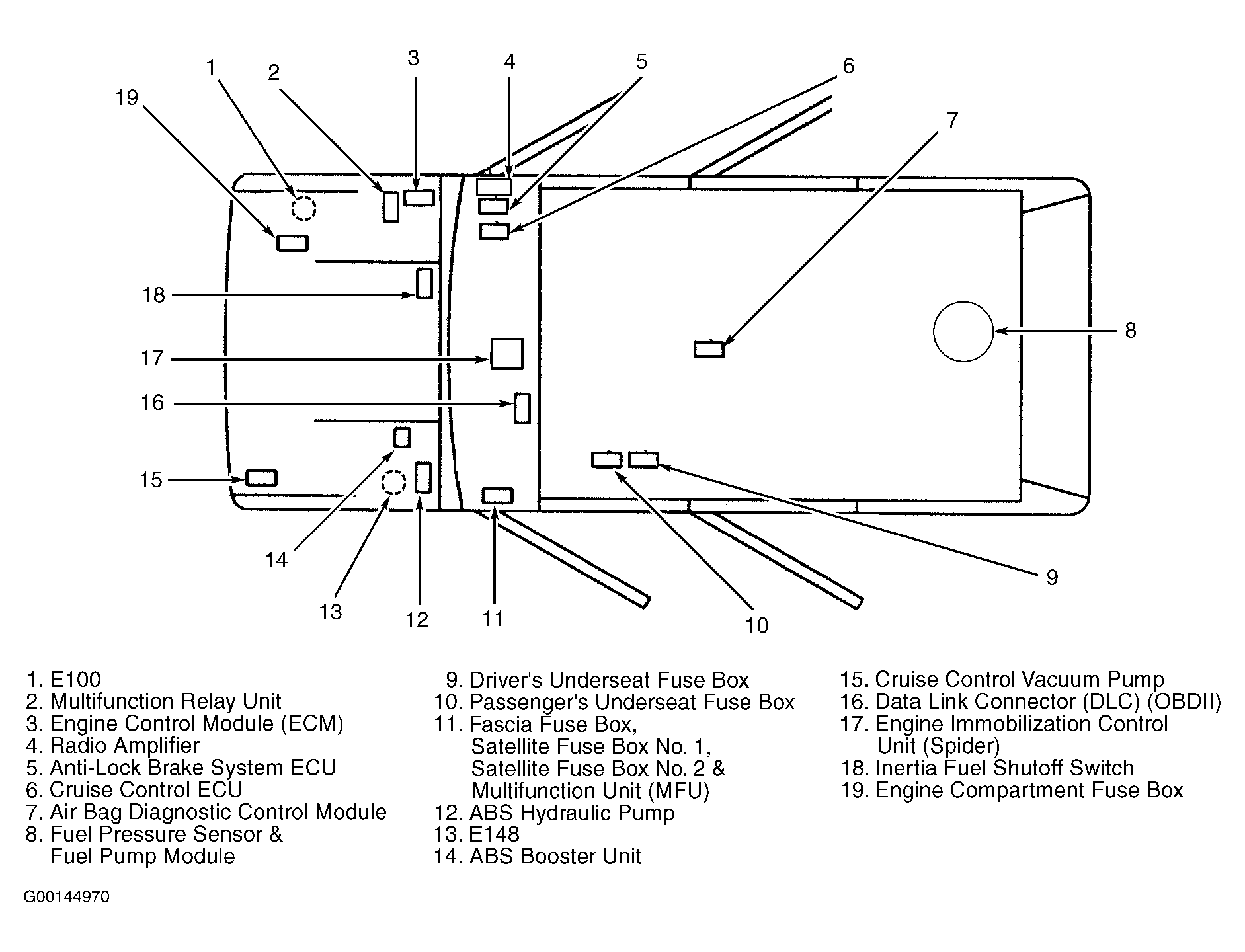

| Component | Component Location |
|---|---|
| Air Bag Diagnostic Control Module | Below center console. See Figure . |
| Anti-Lock Brake System ECU | Behind right side of dash, on bracket. See Figure . |
| Cruise Control ECU | Behind right side of dash, on bracket. See Figure . |
| Daytime Running Lights (DRL) Control Unit | Behind right side of dash, on bracket. |
| Engine Control Module (ECM) | At right rear corner of engine compartment, right of washer reservoir. See Figure . |
| Engine Immobilization Control Unit (Spider) | Behind center of dash. See Figure . |
| Fan Control Module | Behind right kick panel. |
| Multifunction Unit (MFU) | On fascia fuse box. See Figure . |
| Service Reminder Unit | Behind right kick panel. |
| Speed Trip Module | Behind right side of dash. |
| Sun Roof Control Unit | On front center of roof. |
| Theft Alarm Unit | Behind right side of dash, on bracket. |
| Window Lift ECU | Behind right side of dash, on bracket. |
