Front Brake Components

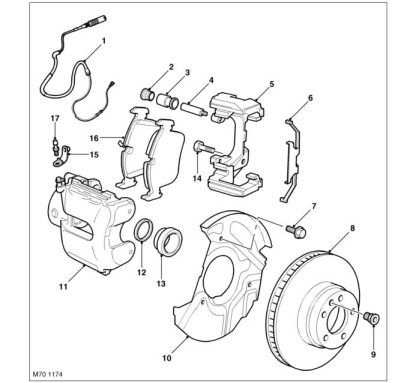

Fig 1: Front Brake Components
G00523136Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  1. Brake pad wear detection sensor
  2. Guide pin dust cover
  3. Guide pin slider
  4. Guide pin
  5. Calliper carrier
  6. Brake pad retainer
  7. Mud shield retaining bolt
  8. Brake disc
  9. Brake disc retaining bolt
  10. Mud shield
  11. Calliper body
  12. Piston seal
  13. Piston dust cover
  14. Mounting bolt
  15. Mounting bolt
  16. Brake pads
  17. Bleed valve
