Rear Brake Components

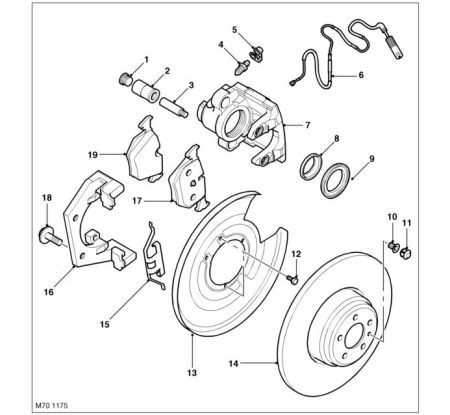

Fig 1: Rear Brake Components
G00523137Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  1. Guide pin dust cover
  2. Guide pin slider
  3. Guide pin
  4. Bleed valve dust cap
  5. Bleed valve
  6. Brake pad wear detection sensor
  7. Calliper body
  8. Piston seal
  9. Piston dust cover
  10. Brake disc retaining bolt
  11. Brake disc retaining bolt dust cover
  12. Mud shield retaining bolt
  13. Mud shield
  14. Brake disc
  15. Brake pad retainer
  16. Calliper carrier
  17. Brake pad
  18. Mounting bolt
  19. Brake pad
