Wheel Alignment Procedures: Adjust

  1. Slacken track rod adjuster clamping nuts and bolts. See Fig 1.
  2. Rotate adjuster to give correct alignment.
  3. Roll vehicle backwards and forwards to relieve stresses in steering/front suspension.
  4. Recheck front wheel alignment, taking average of three readings.
    5. CAUTION: Ensure that adjuster clamping nuts and bolts are positioned as shown or wheel rim foul will result
  5. Repeat procedure as necessary to obtain correct alignment.
  6. Tighten track rod adjuster fixings to 8mm, 22Nm (16 ft. lbs.), 10mm, 47Nm, (35 ft. lbs.).

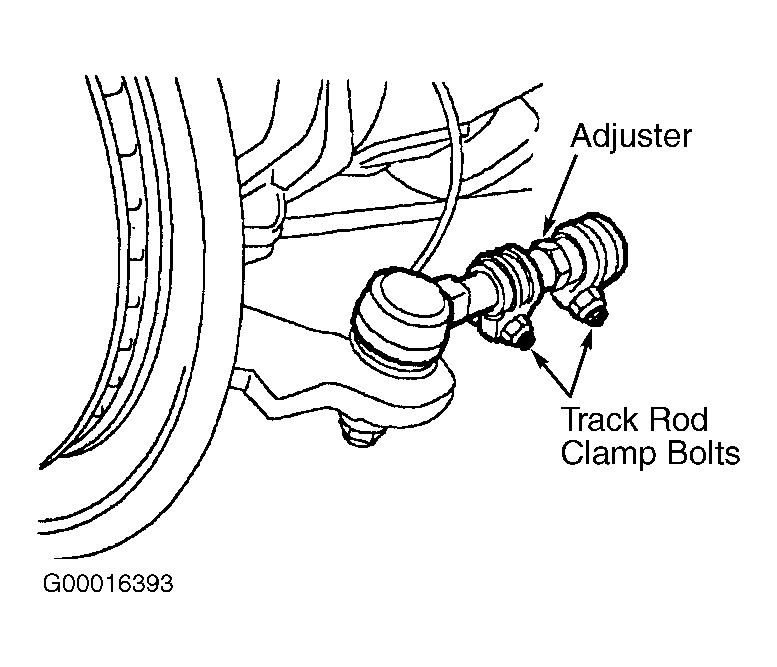

Fig 1: Adjusting Toe-In
G00016393Courtesy of LAND ROVER NORTH AMERICA, INC.
