Catalyst Monitoring Structure

For monitoring structure flow chart, see Fig 1 .

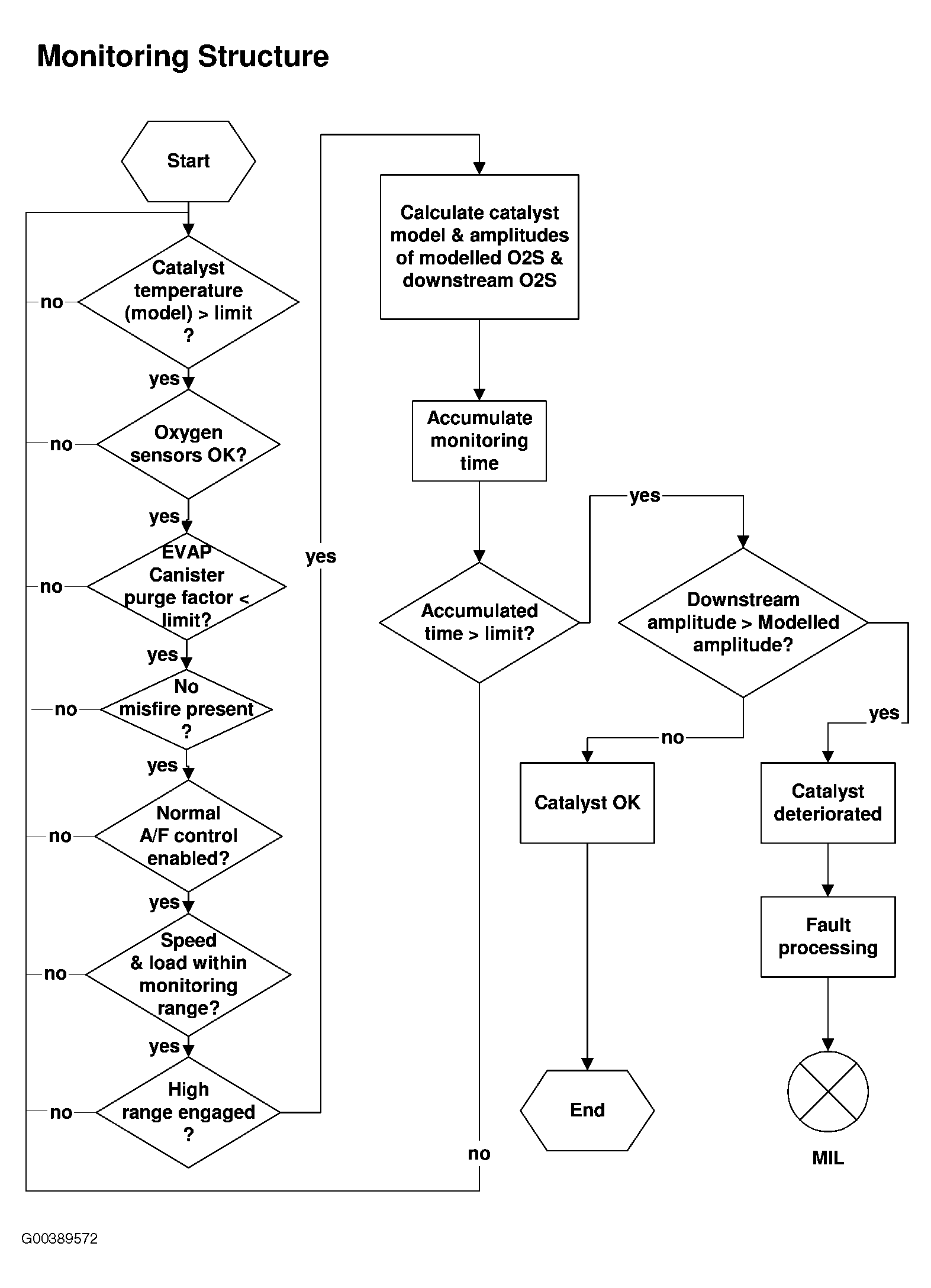

Fig 1: Catalyst Monitoring Structure Flow Chart

G00389572

Courtesy of LAND ROVER NORTH AMERICA, INC.
