Fuel System Monitoring & Enabling Conditions

For fuel system monitoring and enabling conditions, see Fig 1 .

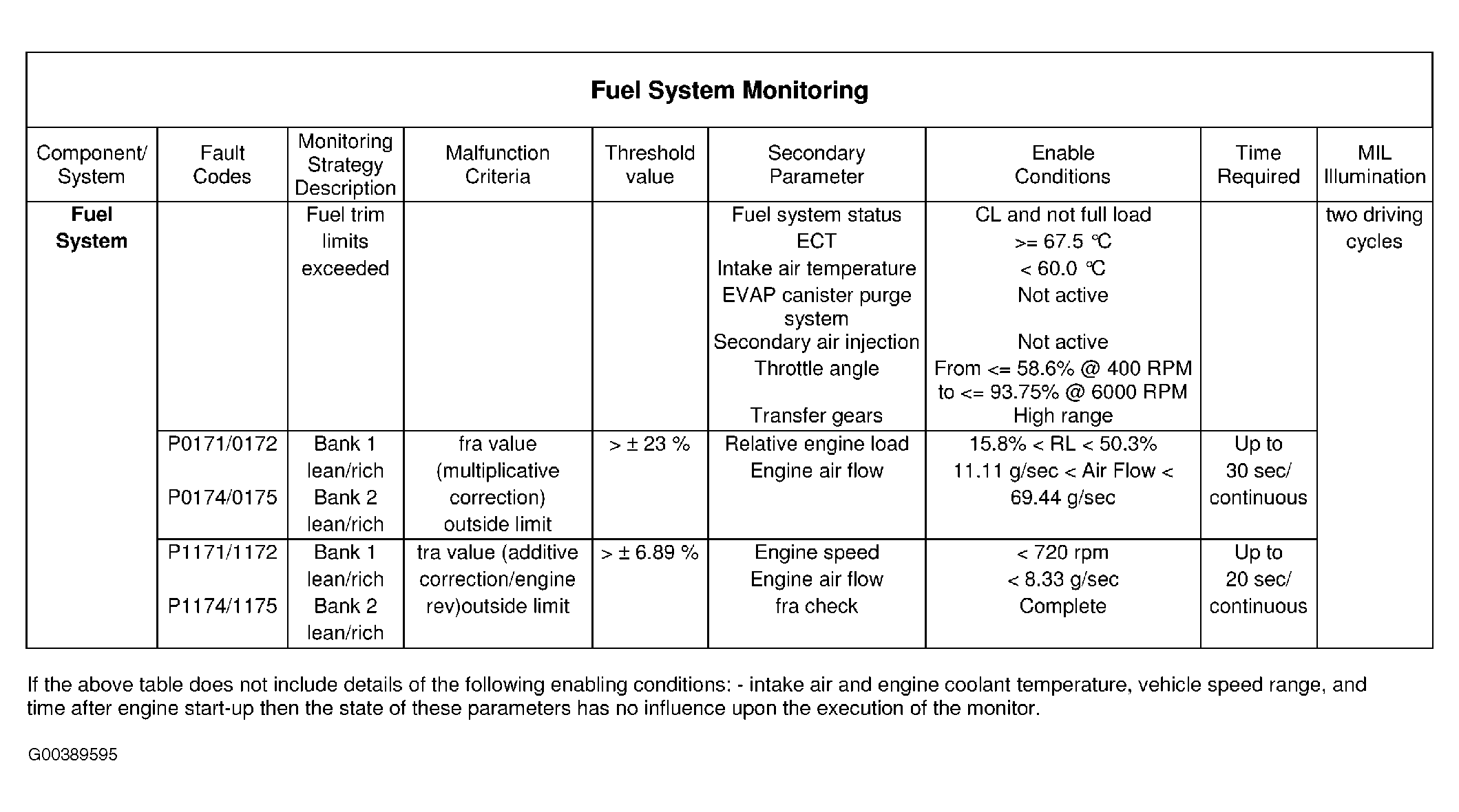

Fig 1: Fuel System Monitoring & Enabling Conditions
G00389595Courtesy of LAND ROVER NORTH AMERICA, INC.
