- Position vehicle on lift.
- Apply handbrake and position chocks under front and rear wheels.
- Connect TestBook/T4 to monitor gearbox fluid temperature.
CAUTION:
The gearbox fluid level must only be checked when the temperature of the fluid is between 35°C and 45°C. The reading obtained will be incorrect if the fluid is outside this temperature range.
- Start engine, move selector lever from 'P' through all gear positions, pausing in each gear position for 2-3 seconds and return to 'P' position.
Courtesy of LAND ROVER NORTH AMERICA, INC.

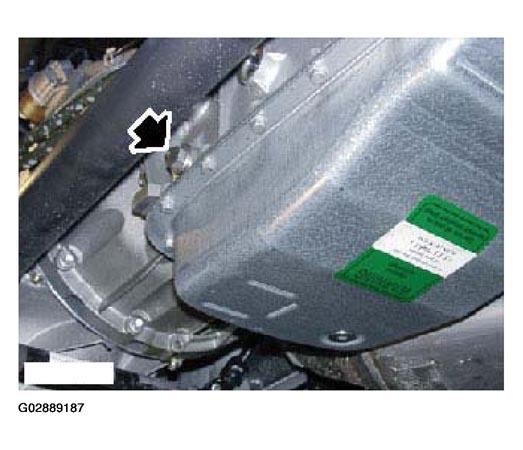

- Clean area around filler/level plug.
- With the engine running, remove filler/level plug and allow excess fluid to drain off.
WARNING:
Observe due care when draining gearbox fluid as the fluid can be very hot.
- If no fluid loss is apparent when filler/level plug is removed, with the engine at idle, fill gearbox with recommended fluid until a small thread of fluid runs from filler/level plug hole.
WARNING:
Avoid excessive skin contact with mineral oil. Mineral oils remove the natural fats from the skin, leading to dryness, irritation and dermatitis.
- Move selector lever from 'P' through each gear position and return to 'P', allowing any excess fluid to drain off.
- Fit new filler/level plug and tighten to 20 Nm (15 lbf.ft).
- Disconnect TestBook/T4.
