Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

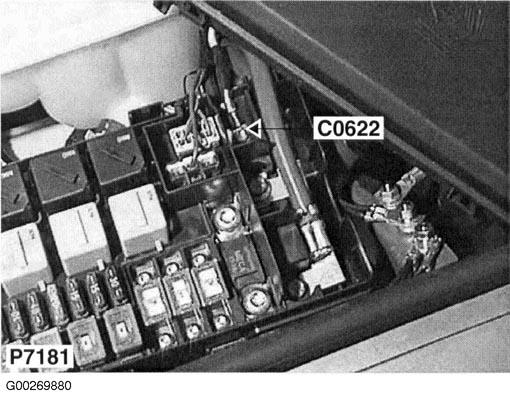

| Engine Compartment Fuse Box (P7181) | Right side of engine compartment. See Figure . |

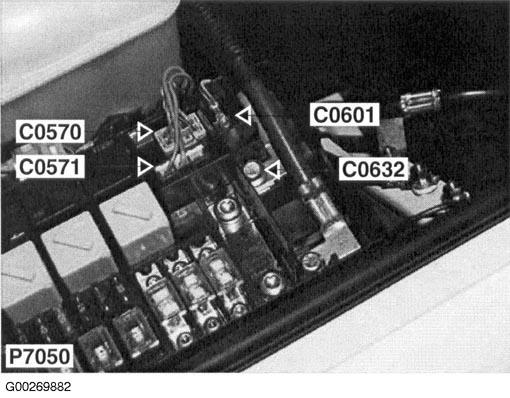

| Fuse Holder (Engine Compartment) Connector (C0601) | At right front of engine compartment. See Figure . |

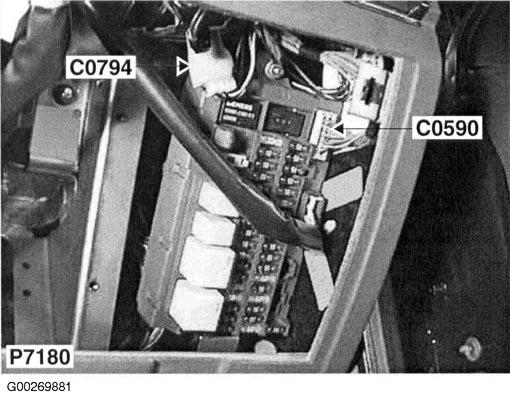

| Passenger Compartment Fuse Box Connector (C0590) | Under left side of dash. See Figure . |
