Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

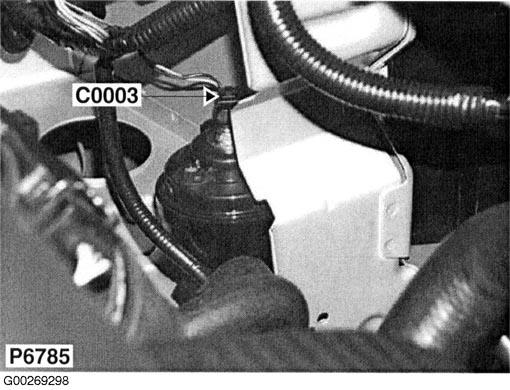

Fig 1: Left Front Of Engine Compartment

G00269298

Courtesy of LAND ROVER NORTH AMERICA, INC.

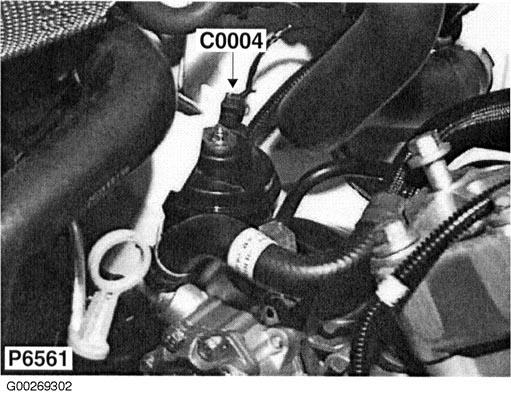

Fig 2: Right Front Of Engine Compartment

G00269302

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 3: Left Front Of Engine Compartment

G00269303

Courtesy of LAND ROVER NORTH AMERICA, INC.

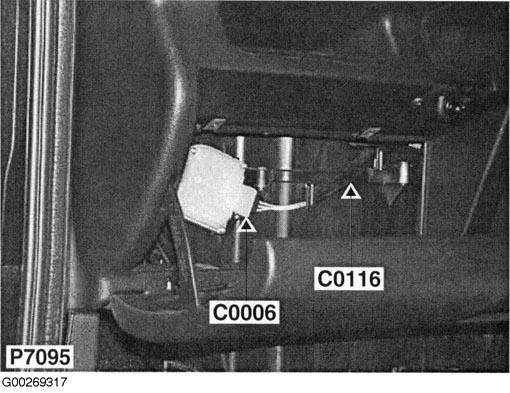

Fig 4: Right Side Of Dash

G00269317

Courtesy of LAND ROVER NORTH AMERICA, INC.

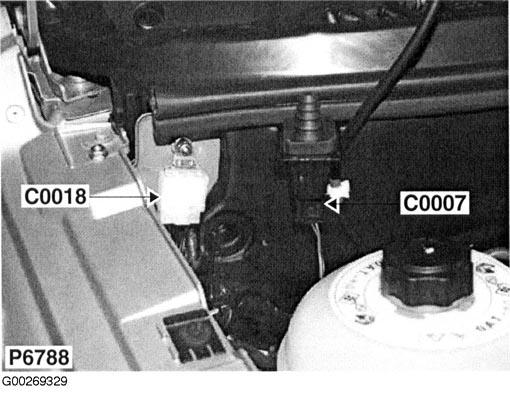

Fig 5: Right Rear Of Engine Compartment

G00269329

Courtesy of LAND ROVER NORTH AMERICA, INC.

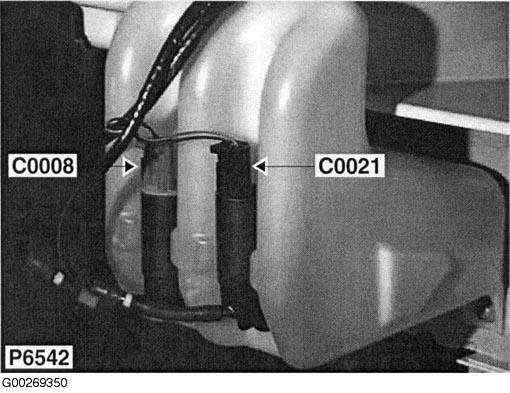

Fig 6: Behind Front Bumper

G00269350

Courtesy of LAND ROVER NORTH AMERICA, INC.

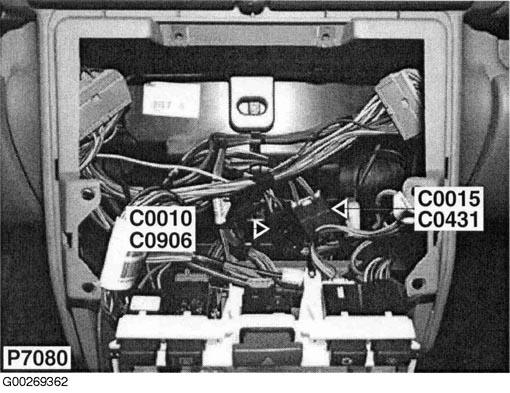

Fig 7: Center Console

G00269362

Courtesy of LAND ROVER NORTH AMERICA, INC.

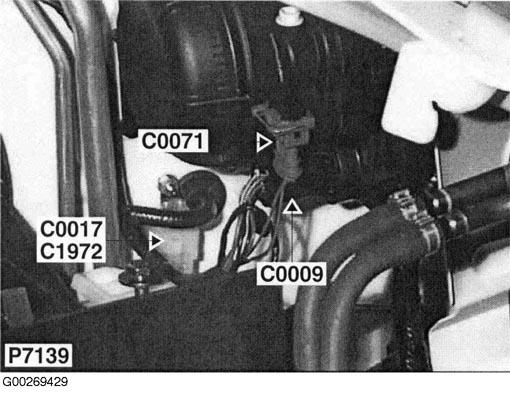

Fig 8: Left Front Of Engine Compartment

G00269429

Courtesy of LAND ROVER NORTH AMERICA, INC.

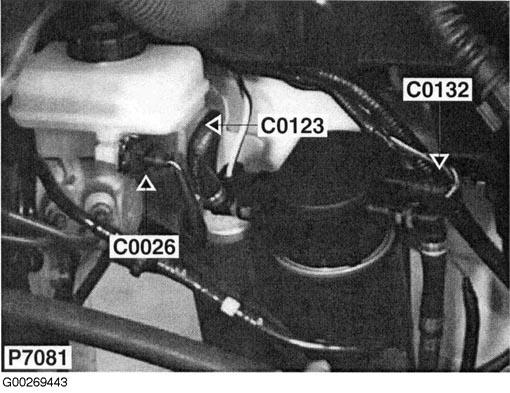

Fig 9: Left Rear Of Engine Compartment

G00269443

Courtesy of LAND ROVER NORTH AMERICA, INC.

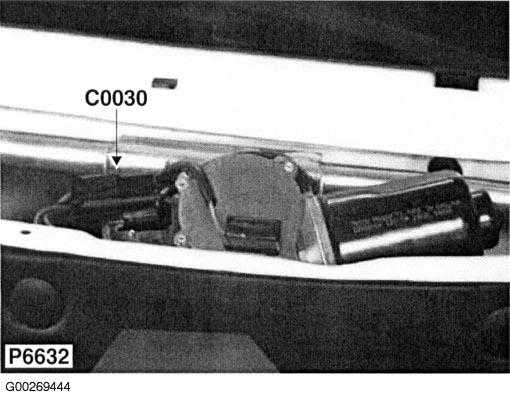

Fig 10: Air Intake Plenum

G00269444

Courtesy of LAND ROVER NORTH AMERICA, INC.

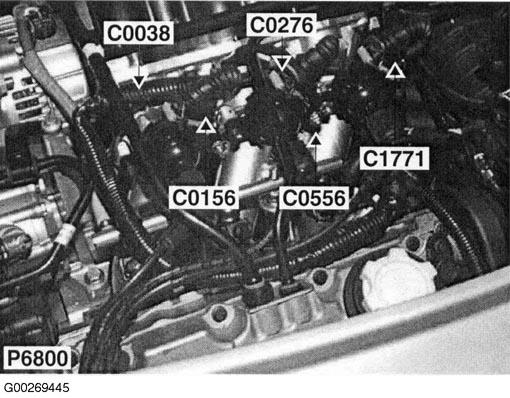

Fig 11: Top Of Engine

G00269445

Courtesy of LAND ROVER NORTH AMERICA, INC.

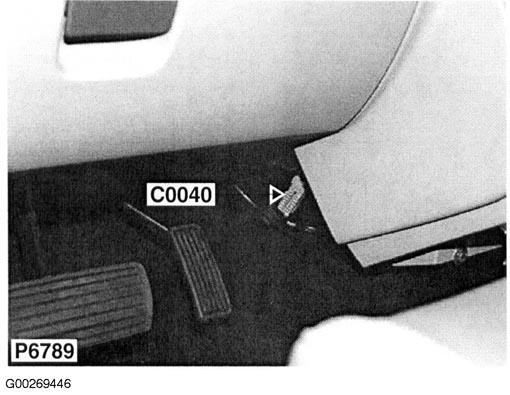

Fig 12: Left Side Of Center Console

G00269446

Courtesy of LAND ROVER NORTH AMERICA, INC.

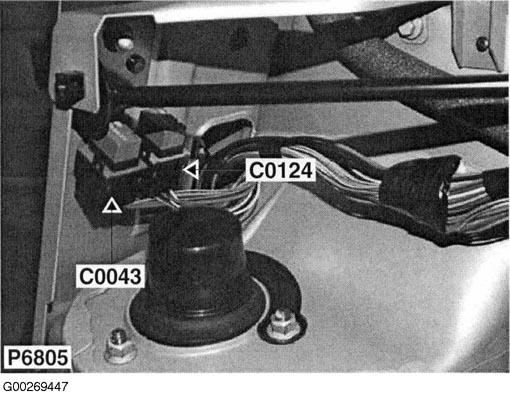

Fig 13: Right Side Of Luggage Compartment

G00269447

Courtesy of LAND ROVER NORTH AMERICA, INC.

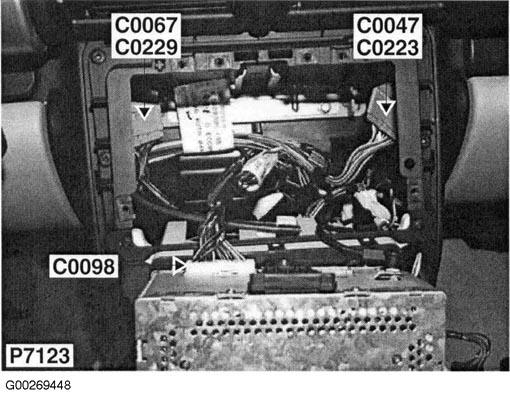

Fig 14: Center Console

G00269448

Courtesy of LAND ROVER NORTH AMERICA, INC.

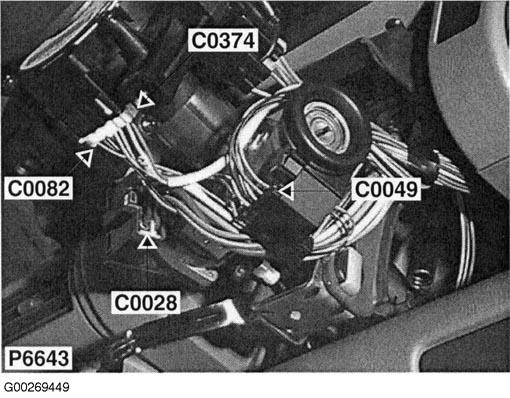

Fig 15: Steering Column

G00269449

Courtesy of LAND ROVER NORTH AMERICA, INC.

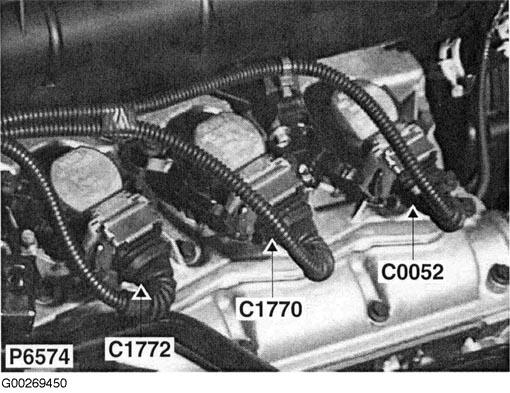

Fig 16: Top Of Engine

G00269450

Courtesy of LAND ROVER NORTH AMERICA, INC.

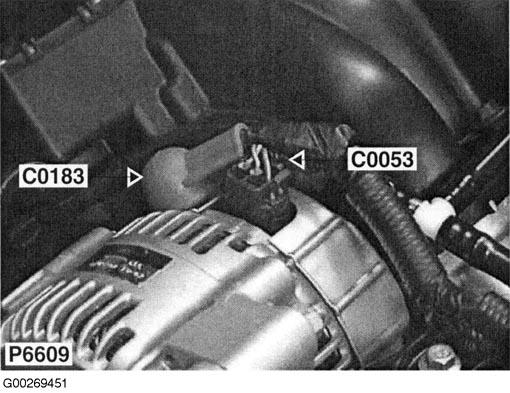

Fig 17: Top Front Of Engine

G00269451

Courtesy of LAND ROVER NORTH AMERICA, INC.

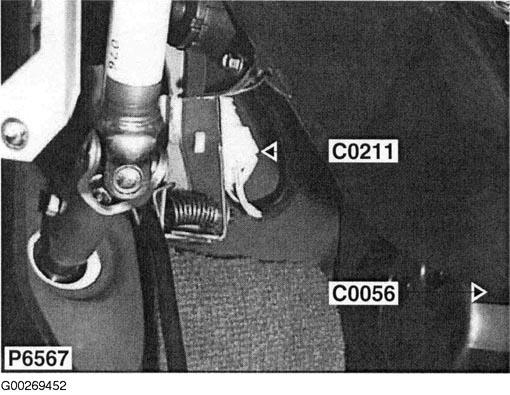

Fig 18: Center Console

G00269452

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 19: Center Of Dash

G00269453

Courtesy of LAND ROVER NORTH AMERICA, INC.

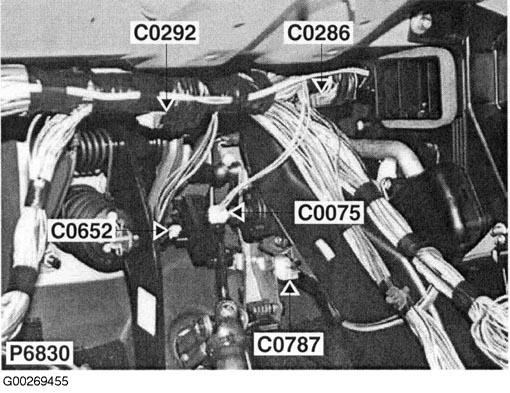

Fig 20: Left Side Of Dash

G00269455

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 21: Left Side Of Dash

G00269457

Courtesy of LAND ROVER NORTH AMERICA, INC.

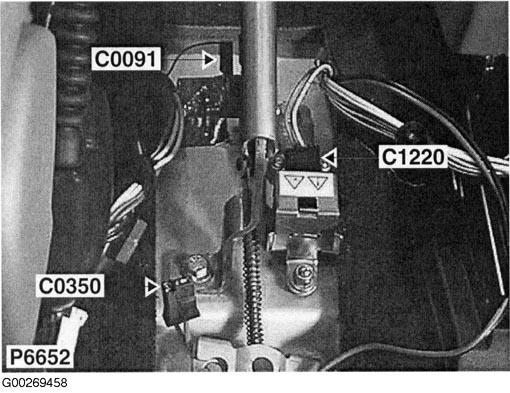

Fig 22: Center Console

G00269458

Courtesy of LAND ROVER NORTH AMERICA, INC.

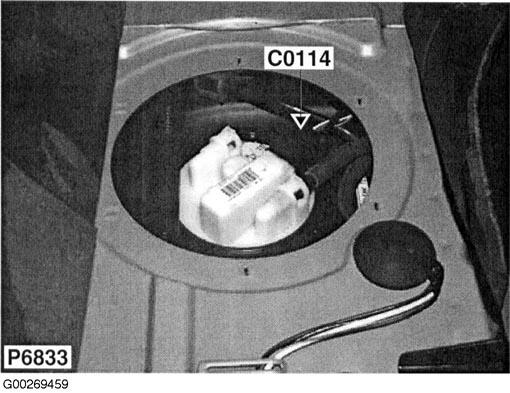

Fig 23: Under Rear Seat

G00269459

Courtesy of LAND ROVER NORTH AMERICA, INC.

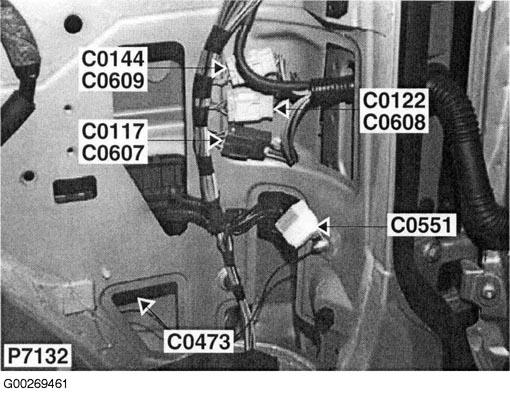

Fig 24: Luggage Compartment

G00269461

Courtesy of LAND ROVER NORTH AMERICA, INC.

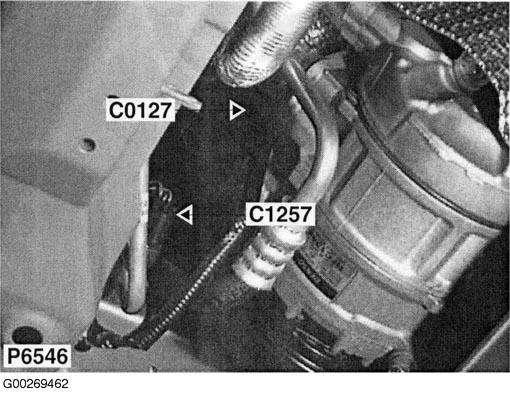

Fig 25: Right Front Of Engine

G00269462

Courtesy of LAND ROVER NORTH AMERICA, INC.

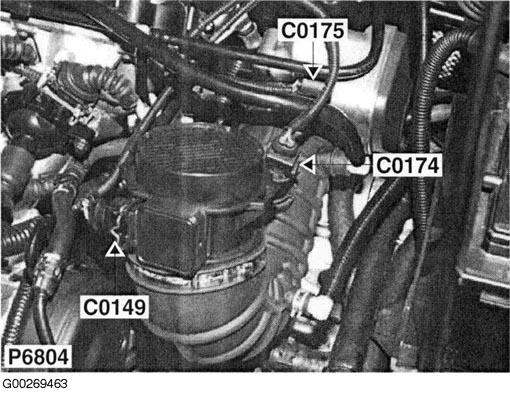

Fig 26: Left Side Of Engine Compartment

G00269463

Courtesy of LAND ROVER NORTH AMERICA, INC.

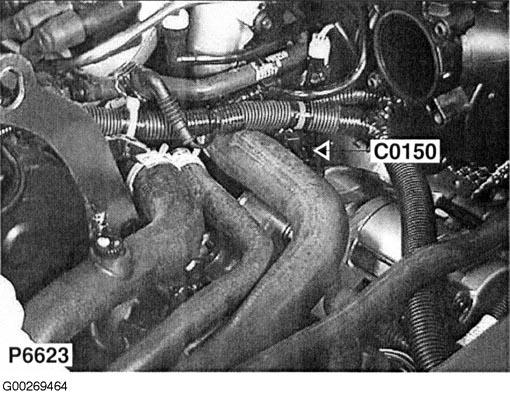

Fig 27: Right Rear Of Engine

G00269464

Courtesy of LAND ROVER NORTH AMERICA, INC.

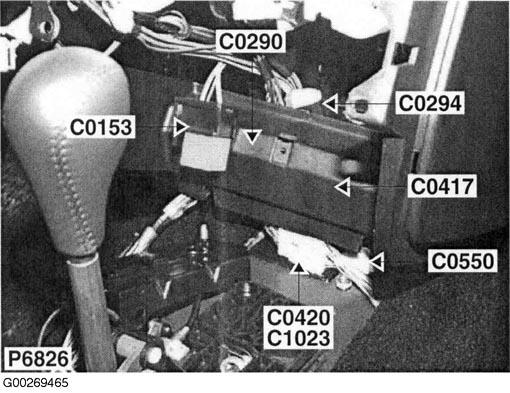

Fig 28: Center Console

G00269465

Courtesy of LAND ROVER NORTH AMERICA, INC.

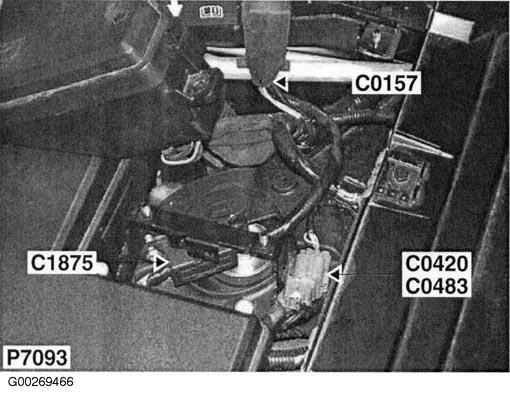

Fig 29: Left Rear Of Engine Compartment

G00269466

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 30: Inside "E" Box

G00269467

Courtesy of LAND ROVER NORTH AMERICA, INC.

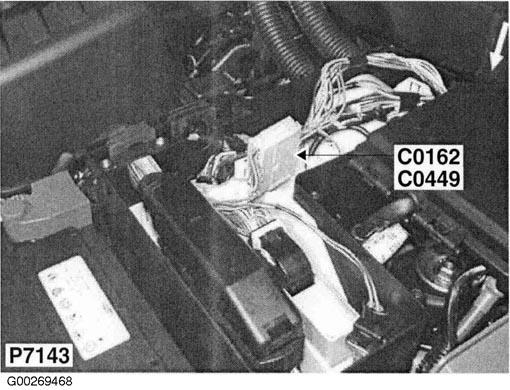

Fig 31: Inside "E" Box

G00269468

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 32: Left Side Of Engine

G00269469

Courtesy of LAND ROVER NORTH AMERICA, INC.

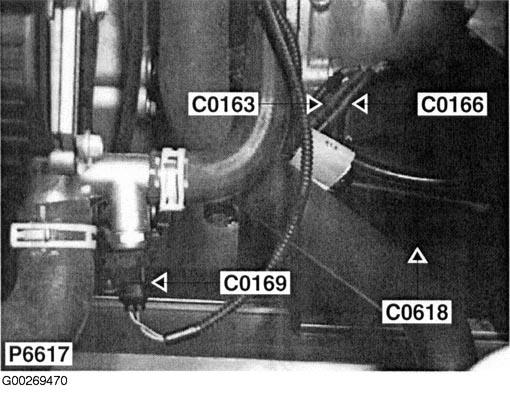

Fig 33: Above Transmission

G00269470

Courtesy of LAND ROVER NORTH AMERICA, INC.

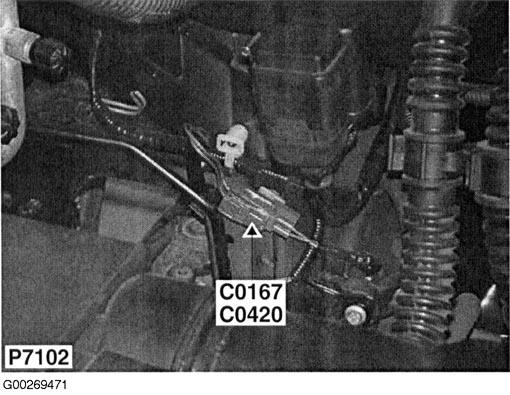

Fig 34: Left Side Of Engine Compartment

G00269471

Courtesy of LAND ROVER NORTH AMERICA, INC.

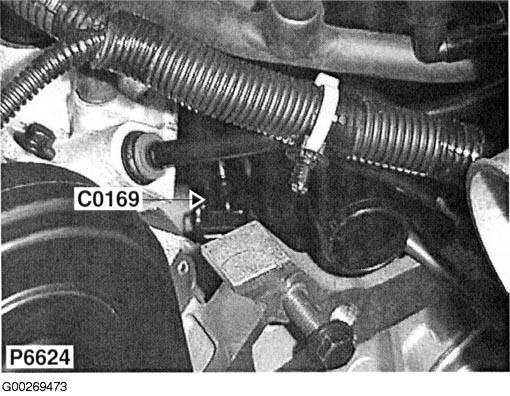

Fig 35: Left Side Of Engine

G00269473

Courtesy of LAND ROVER NORTH AMERICA, INC.

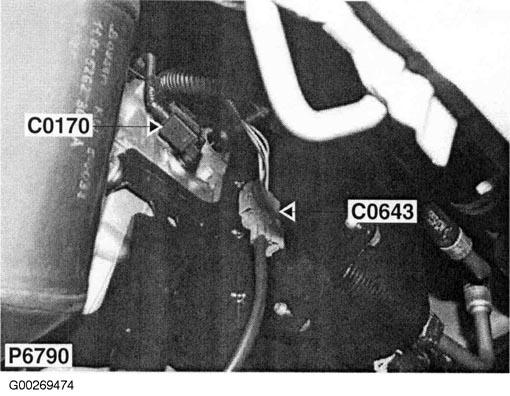

Fig 36: Right Side Of Engine

G00269474

Courtesy of LAND ROVER NORTH AMERICA, INC.

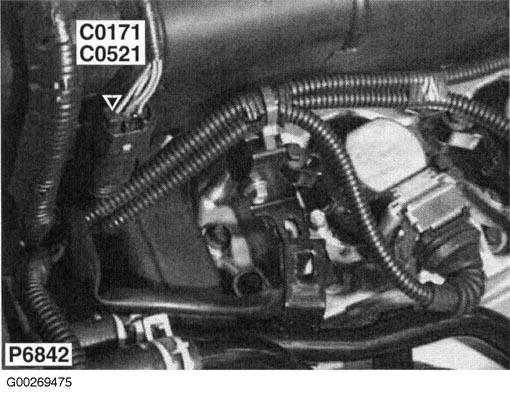

Fig 37: Top Of Engine

G00269475

Courtesy of LAND ROVER NORTH AMERICA, INC.

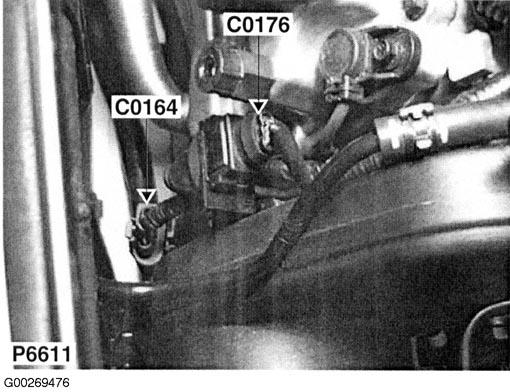

Fig 38: Top Of Engine

G00269476

Courtesy of LAND ROVER NORTH AMERICA, INC.

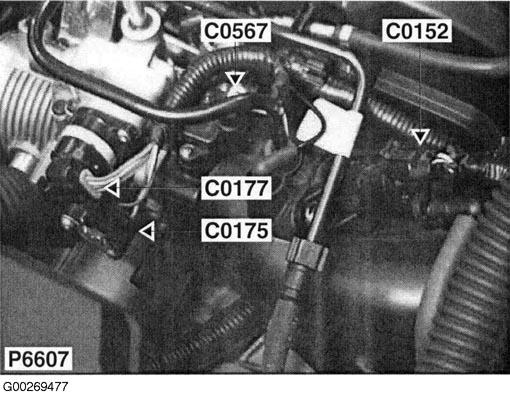

Fig 39: Top Of Engine

G00269477

Courtesy of LAND ROVER NORTH AMERICA, INC.

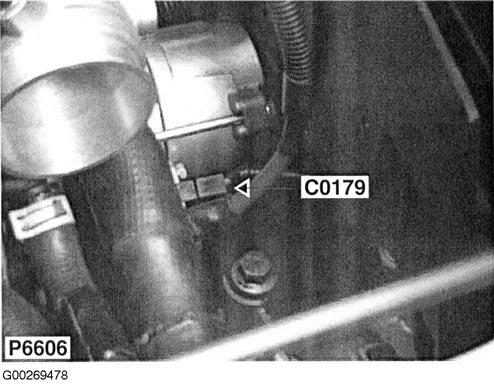

Fig 40: Above Transmission

G00269478

Courtesy of LAND ROVER NORTH AMERICA, INC.

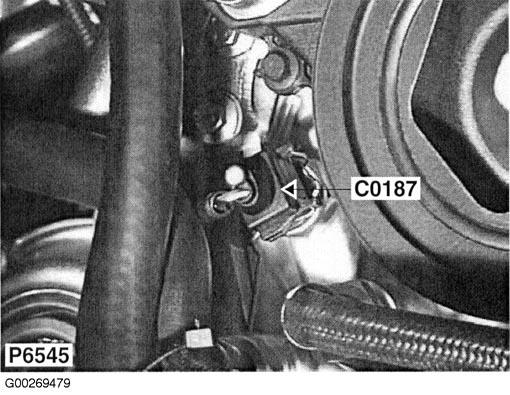

Fig 41: Front Of Engine

G00269479

Courtesy of LAND ROVER NORTH AMERICA, INC.

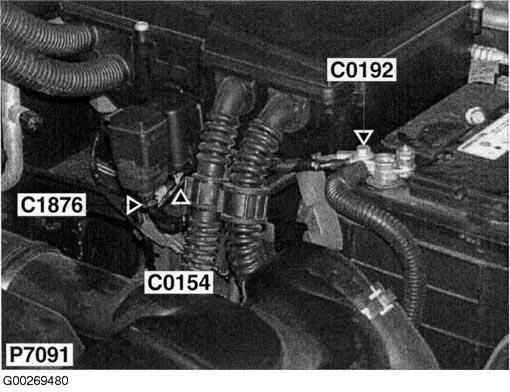

Fig 42: Left Side Of Engine Compartment

G00269480

Courtesy of LAND ROVER NORTH AMERICA, INC.

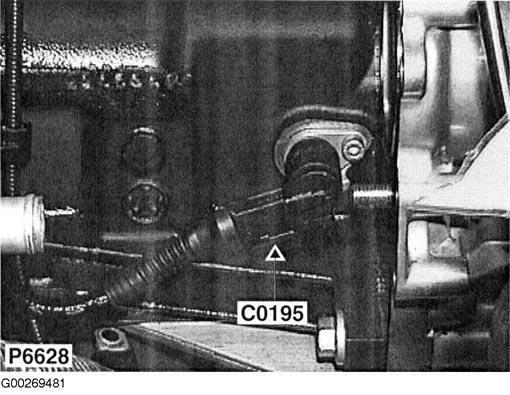

Fig 43: Left Side Of Engine

G00269481

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 44: Inside "E" Box

G00269483

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 45: Center Front Of Engine Compartment

G00269484

Courtesy of LAND ROVER NORTH AMERICA, INC.

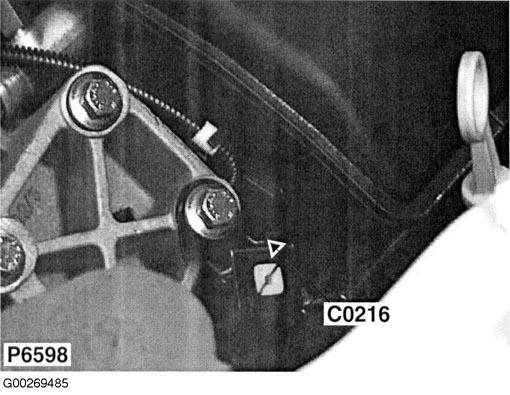

Fig 46: Top Of Engine

G00269485

Courtesy of LAND ROVER NORTH AMERICA, INC.

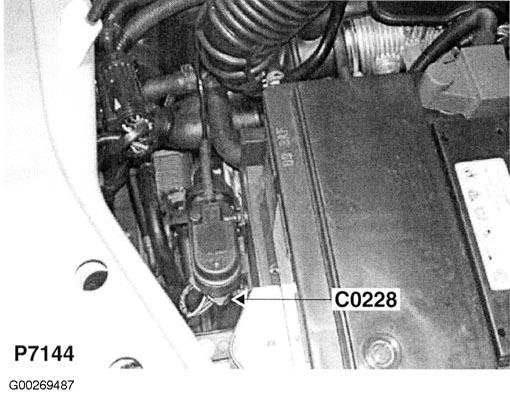

Fig 47: Left Front Of Engine Compartment

G00269487

Courtesy of LAND ROVER NORTH AMERICA, INC.

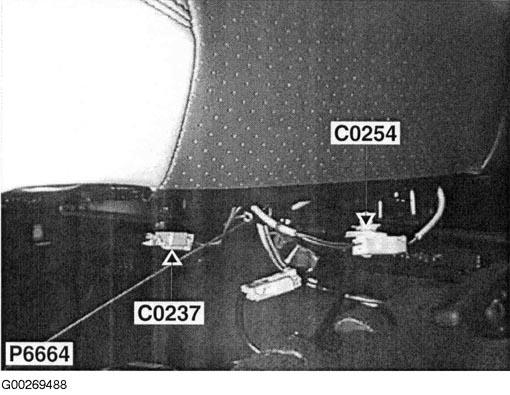

Fig 48: Right Front Seat

G00269488

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 49: Under Right Front Seat

G00269489

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 50: Left Front Of Engine Compartment

G00269490

Courtesy of LAND ROVER NORTH AMERICA, INC.

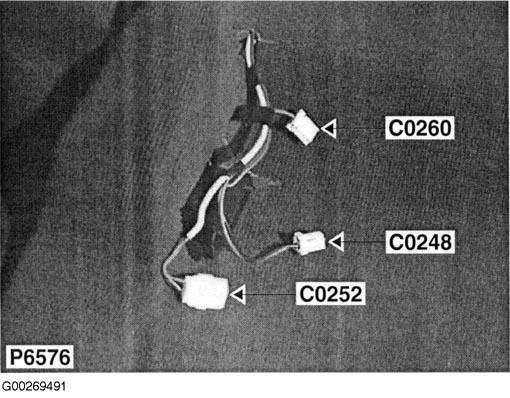

Fig 51: Left Front Seat

G00269491

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 52: Center Console

G00269492

Courtesy of LAND ROVER NORTH AMERICA, INC.

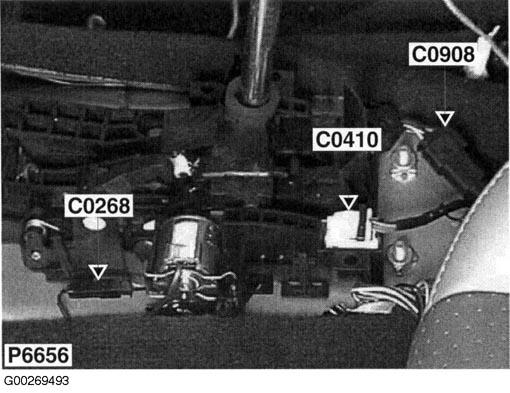

Fig 53: Center Console

G00269493

Courtesy of LAND ROVER NORTH AMERICA, INC.

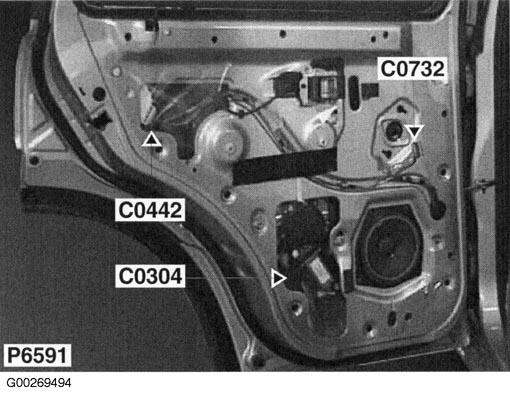

Fig 54: Left Rear Door

G00269494

Courtesy of LAND ROVER NORTH AMERICA, INC.

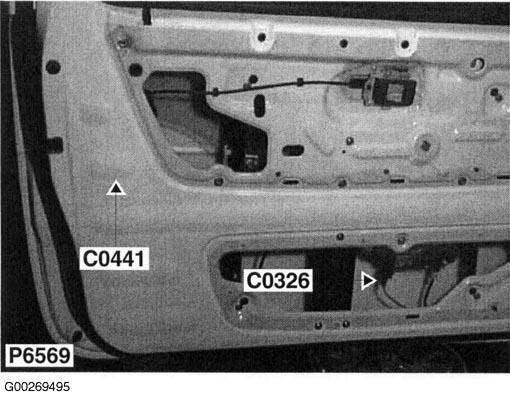

Fig 55: Left Front Door (3 Door)

G00269495

Courtesy of LAND ROVER NORTH AMERICA, INC.

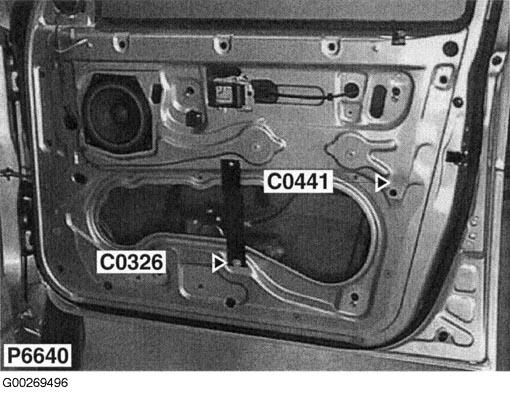

Fig 56: Right Front Door (5 Door)

G00269496

Courtesy of LAND ROVER NORTH AMERICA, INC.

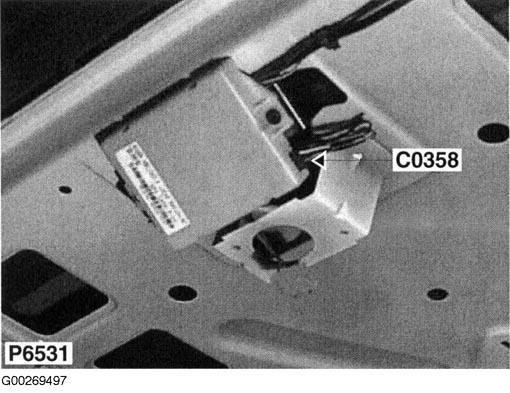

Fig 57: Front Of Roof

G00269497

Courtesy of LAND ROVER NORTH AMERICA, INC.

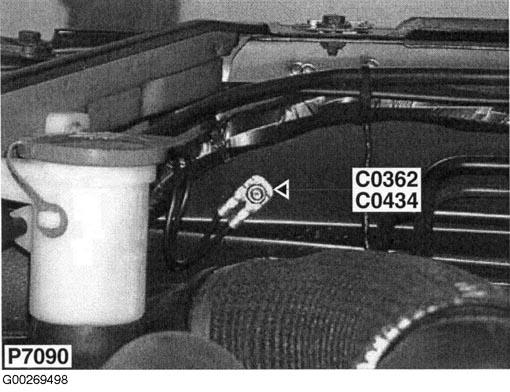

Fig 58: Right Front Of Engine Compartment

G00269498

Courtesy of LAND ROVER NORTH AMERICA, INC.

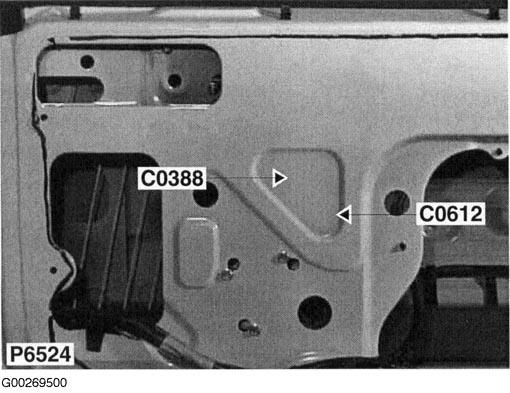

Fig 59: Taildoor

G00269500

Courtesy of LAND ROVER NORTH AMERICA, INC.

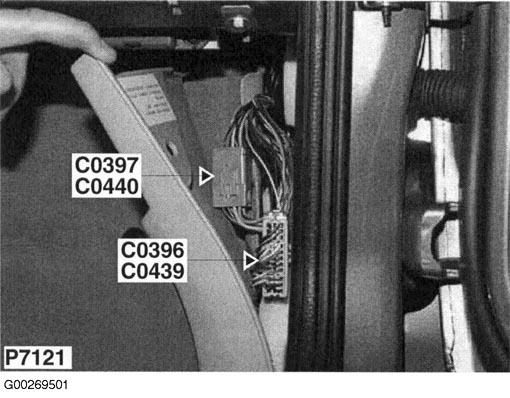

Fig 60: Right Kick Panel

G00269501

Courtesy of LAND ROVER NORTH AMERICA, INC.

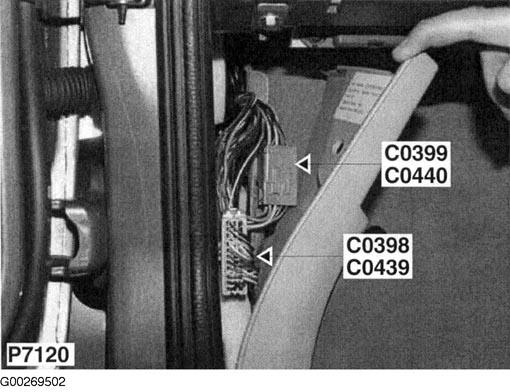

Fig 61: Left Kick Panel

G00269502

Courtesy of LAND ROVER NORTH AMERICA, INC.

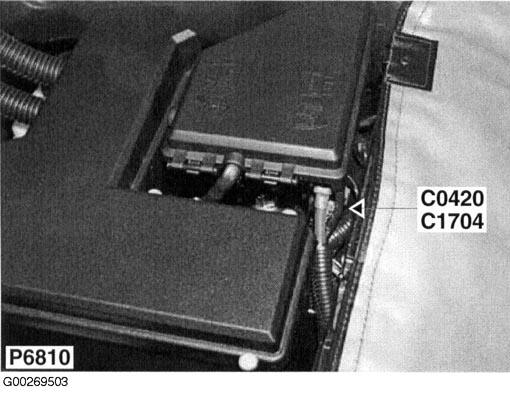

Fig 62: Left Side Of Engine Compartment

G00269503

Courtesy of LAND ROVER NORTH AMERICA, INC.

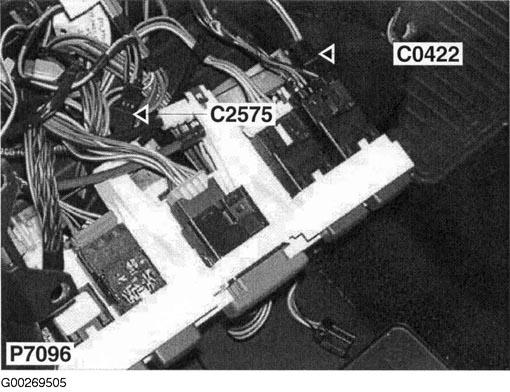

Fig 63: Center Console

G00269505

Courtesy of LAND ROVER NORTH AMERICA, INC.

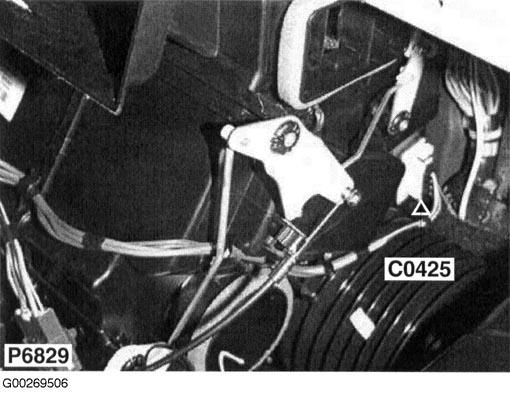

Fig 64: Center Of Dash

G00269506

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 65: Passenger Compartment Fuse Box

G00269507

Courtesy of LAND ROVER NORTH AMERICA, INC.

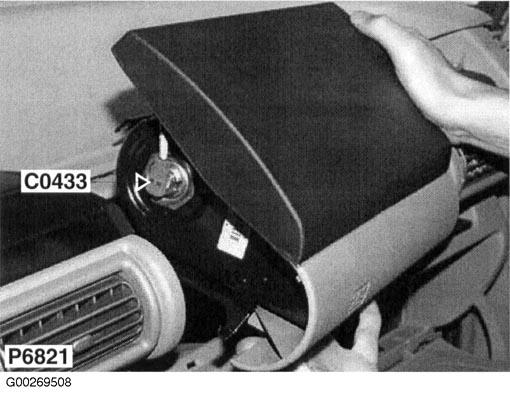

Fig 66: Right Side Of Dash

G00269508

Courtesy of LAND ROVER NORTH AMERICA, INC.

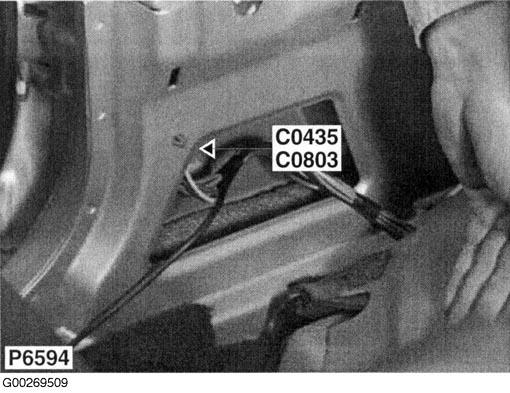

Fig 67: Left "B" Pillar

G00269509

Courtesy of LAND ROVER NORTH AMERICA, INC.

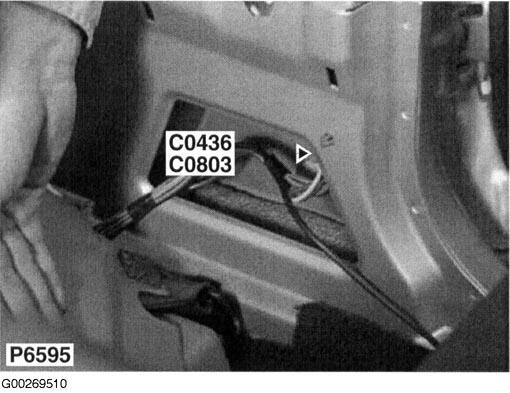

Fig 68: Right "B" Pillar

G00269510

Courtesy of LAND ROVER NORTH AMERICA, INC.

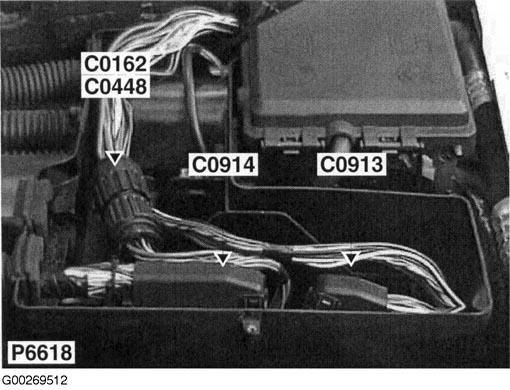

Fig 69: Inside "E" Box

G00269512

Courtesy of LAND ROVER NORTH AMERICA, INC.

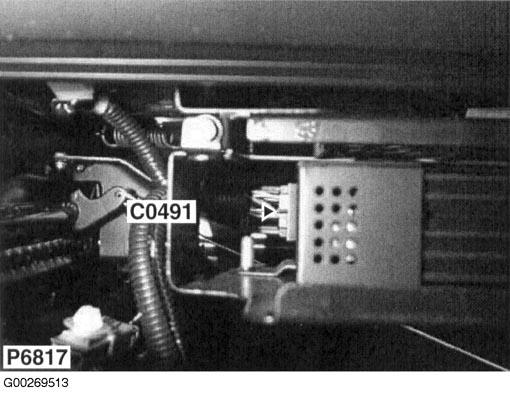

Fig 70: Left Front Seat

G00269513

Courtesy of LAND ROVER NORTH AMERICA, INC.

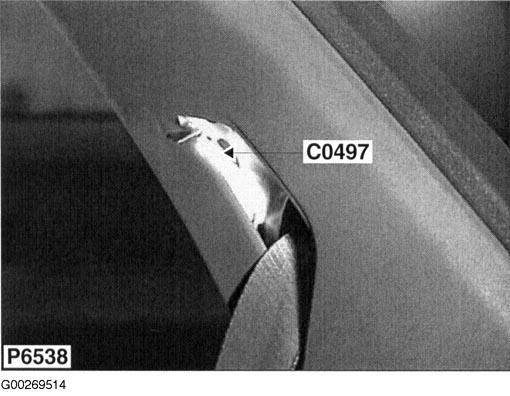

Fig 71: Right "D" Pillar

G00269514

Courtesy of LAND ROVER NORTH AMERICA, INC.

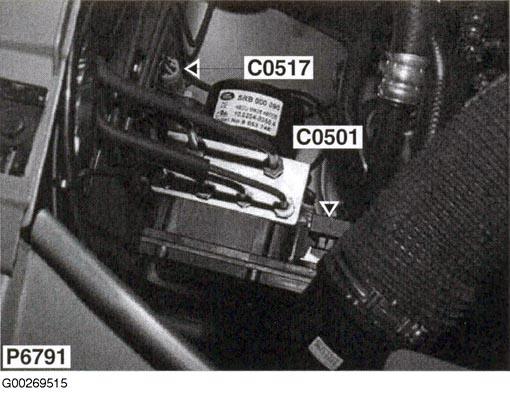

Fig 72: Right Front Of Engine Compartment

G00269515

Courtesy of LAND ROVER NORTH AMERICA, INC.

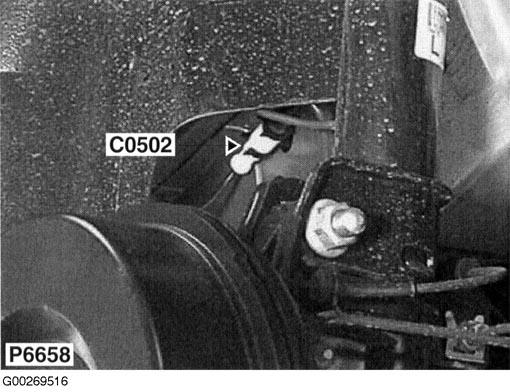

Fig 73: Left Rear Wheelwell

G00269516

Courtesy of LAND ROVER NORTH AMERICA, INC.

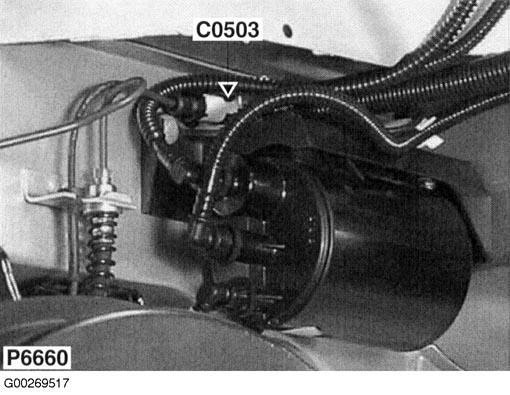

Fig 74: Right Rear Wheelwell

G00269517

Courtesy of LAND ROVER NORTH AMERICA, INC.

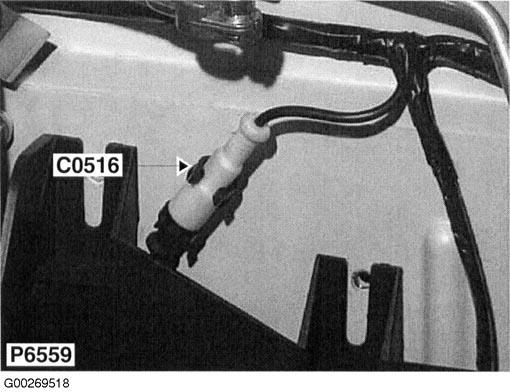

Fig 75: Left Front Of Engine Compartment

G00269518

Courtesy of LAND ROVER NORTH AMERICA, INC.

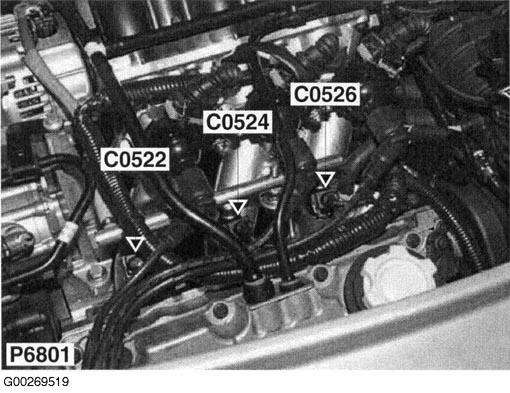

Fig 76: Top Of Engine

G00269519

Courtesy of LAND ROVER NORTH AMERICA, INC.

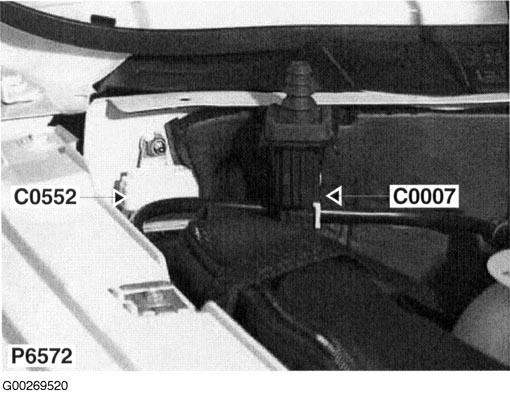

Fig 77: Right Side Of Engine Compartment

G00269520

Courtesy of LAND ROVER NORTH AMERICA, INC.

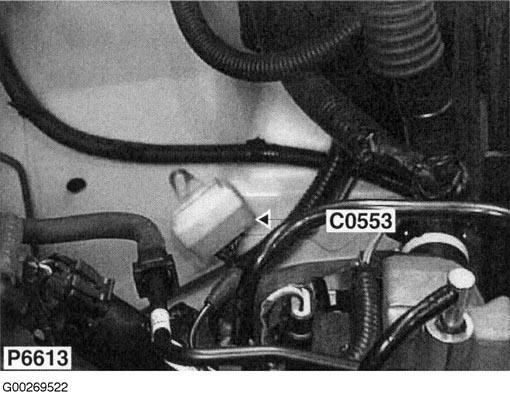

Fig 78: Left Side Of Engine Compartment

G00269522

Courtesy of LAND ROVER NORTH AMERICA, INC.

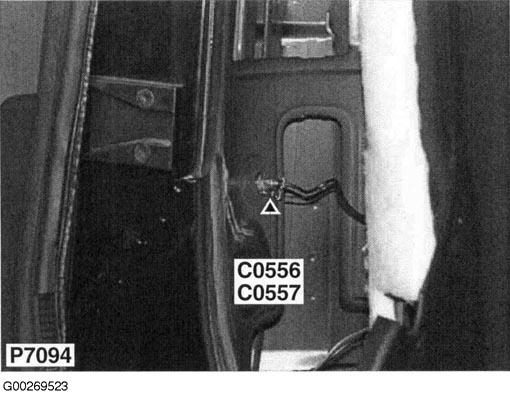

Fig 79: Left Side Of Luggage Compartment

G00269523

Courtesy of LAND ROVER NORTH AMERICA, INC.

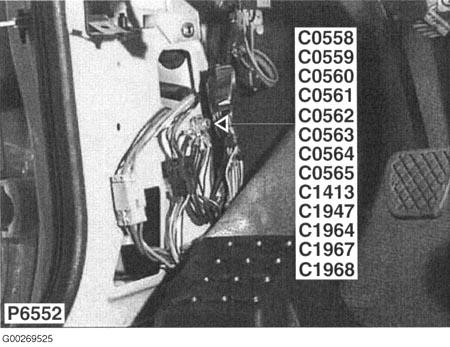

Fig 80: Left Kick Panel

G00269525

Courtesy of LAND ROVER NORTH AMERICA, INC.

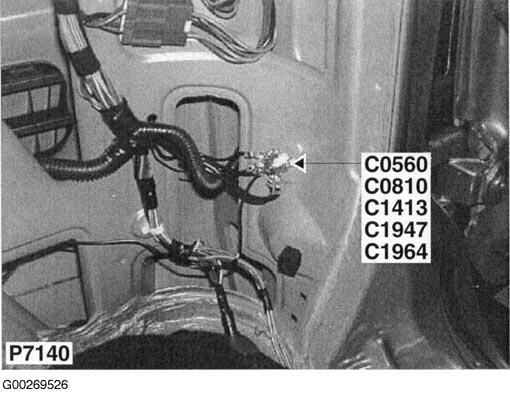

Fig 81: Right Side Of Luggage Compartment

G00269526

Courtesy of LAND ROVER NORTH AMERICA, INC.

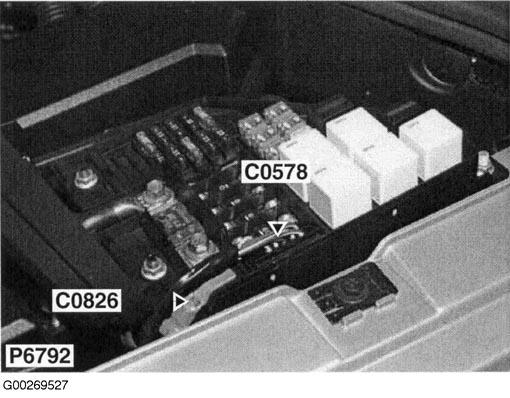

Fig 82: Left Side Of Engine Compartment

G00269527

Courtesy of LAND ROVER NORTH AMERICA, INC.

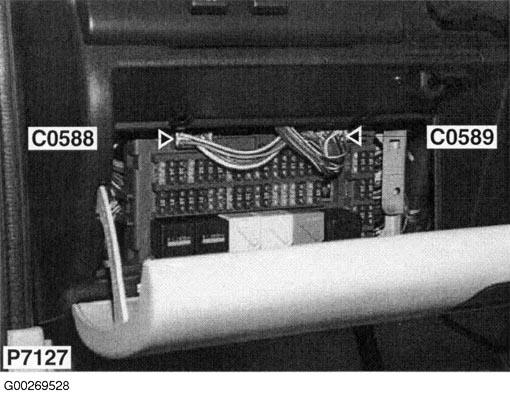

Fig 83: Left Side Of Dash

G00269528

Courtesy of LAND ROVER NORTH AMERICA, INC.

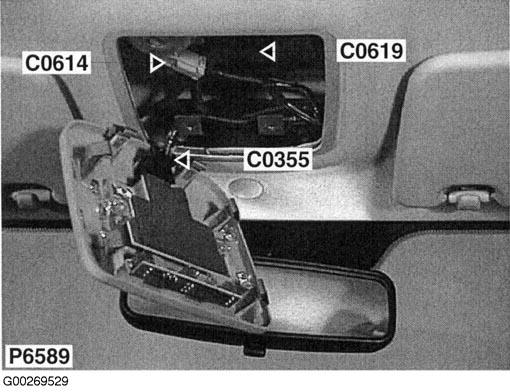

Fig 84: Front Of Roof

G00269529

Courtesy of LAND ROVER NORTH AMERICA, INC.

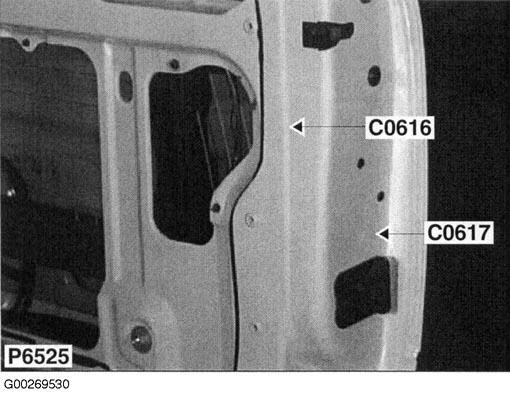

Fig 85: Taildoor

G00269530

Courtesy of LAND ROVER NORTH AMERICA, INC.

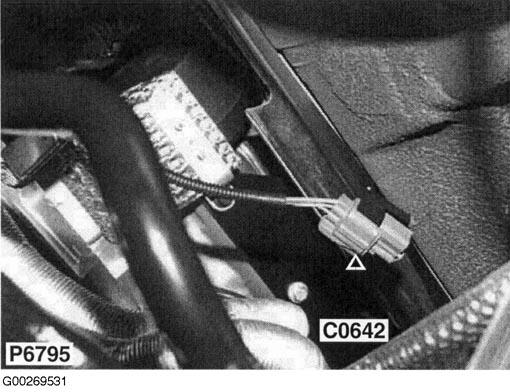

Fig 86: Right Rear Of Engine Compartment

G00269531

Courtesy of LAND ROVER NORTH AMERICA, INC.

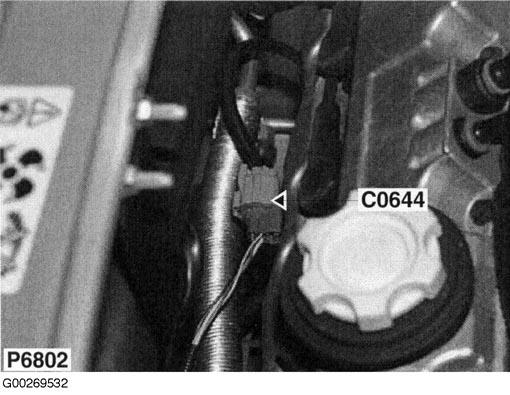

Fig 87: Front Of Engine Compartment

G00269532

Courtesy of LAND ROVER NORTH AMERICA, INC.

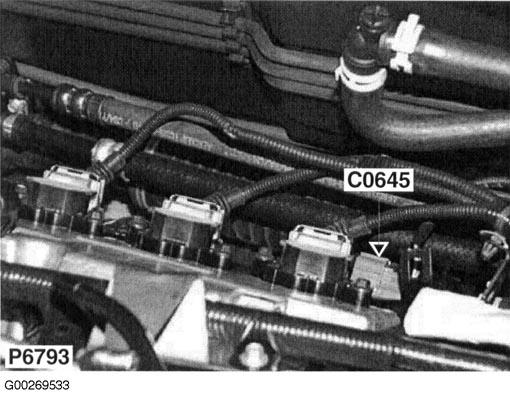

Fig 88: Right Rear Of Engine

G00269533

Courtesy of LAND ROVER NORTH AMERICA, INC.

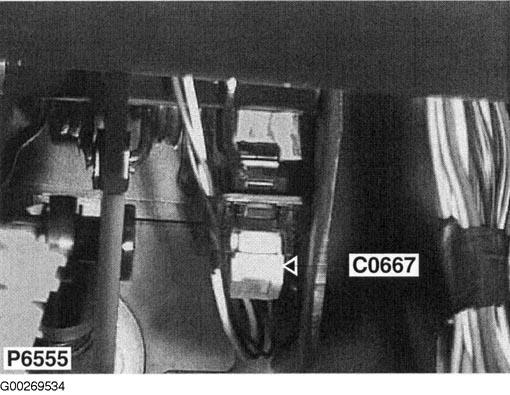

Fig 89: Left Side Of Dash

G00269534

Courtesy of LAND ROVER NORTH AMERICA, INC.

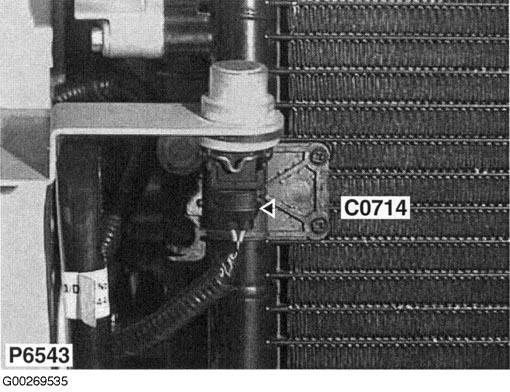

Fig 90: Behind Front Bumper

G00269535

Courtesy of LAND ROVER NORTH AMERICA, INC.

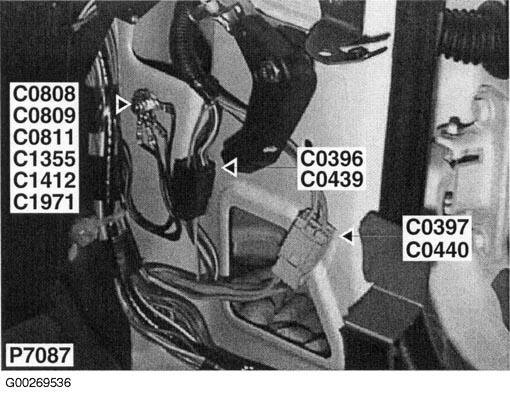

Fig 91: Right Kick Panel

G00269536

Courtesy of LAND ROVER NORTH AMERICA, INC.

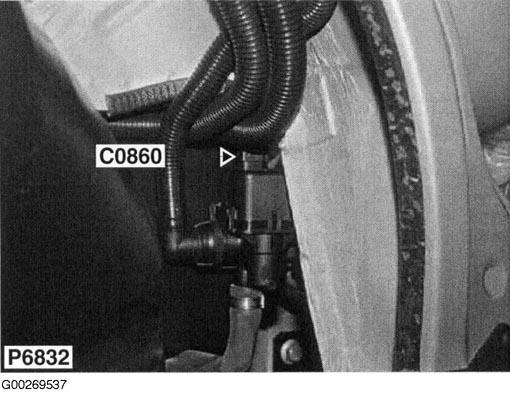

Fig 92: Right Rear Wheelwell

G00269537

Courtesy of LAND ROVER NORTH AMERICA, INC.

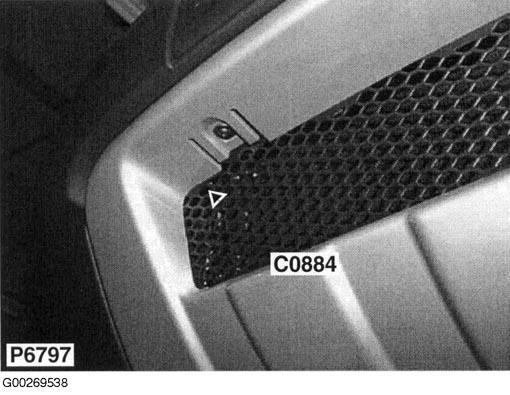

Fig 93: Behind Front Bumper

G00269538

Courtesy of LAND ROVER NORTH AMERICA, INC.

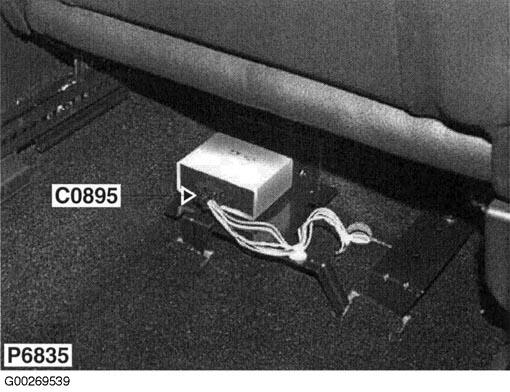

Fig 94: Left Front Seat

G00269539

Courtesy of LAND ROVER NORTH AMERICA, INC.

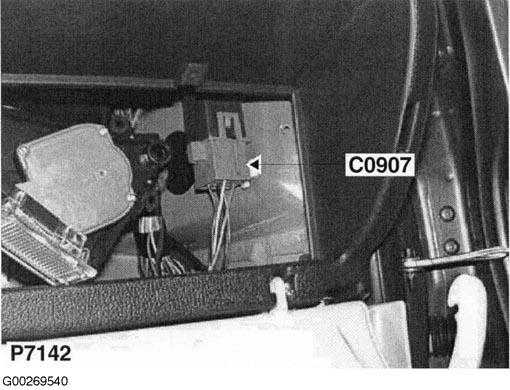

Fig 95: Right "A" Pillar

G00269540

Courtesy of LAND ROVER NORTH AMERICA, INC.

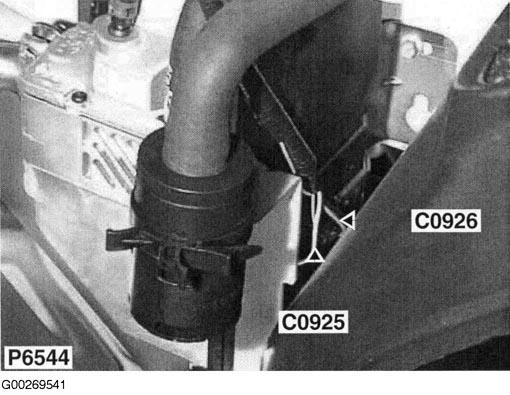

Fig 96: Behind Front Bumper

G00269541

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 97: Right Side Of Luggage Compartment

G00269542

Courtesy of LAND ROVER NORTH AMERICA, INC.

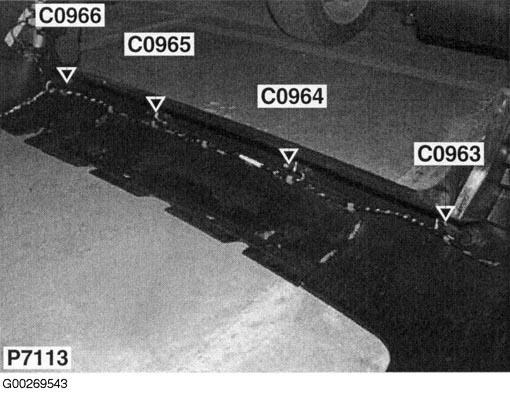

Fig 98: Behind Rear Bumper

G00269543

Courtesy of LAND ROVER NORTH AMERICA, INC.

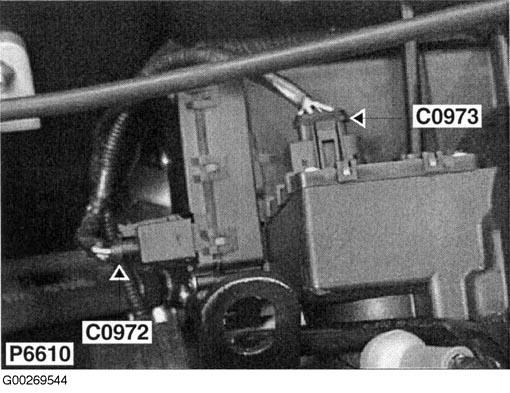

Fig 99: Top Of Engine

G00269544

Courtesy of LAND ROVER NORTH AMERICA, INC.

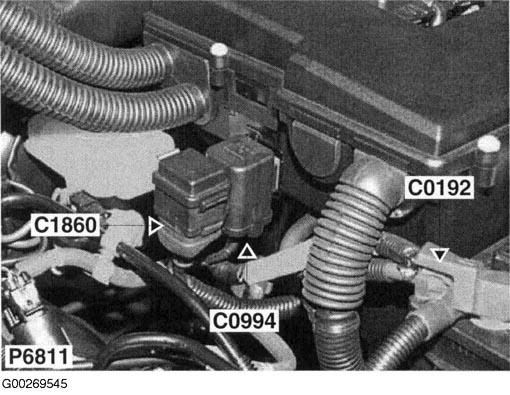

Fig 100: Left Side Of Engine Compartment

G00269545

Courtesy of LAND ROVER NORTH AMERICA, INC.

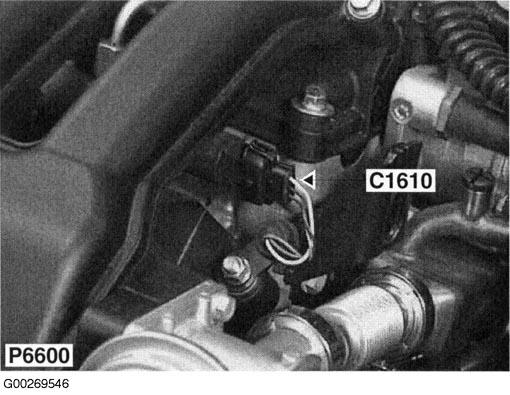

Fig 101: Top Of Engine

G00269546

Courtesy of LAND ROVER NORTH AMERICA, INC.

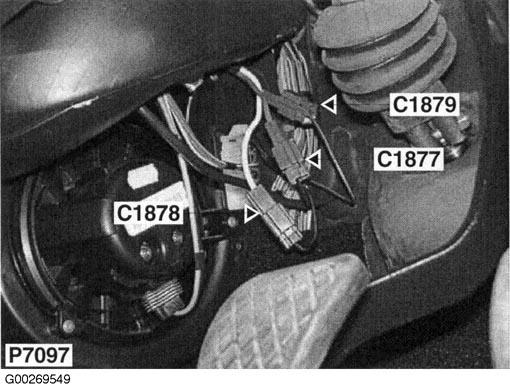

Fig 102: Center Of Dash

G00269549

Courtesy of LAND ROVER NORTH AMERICA, INC.

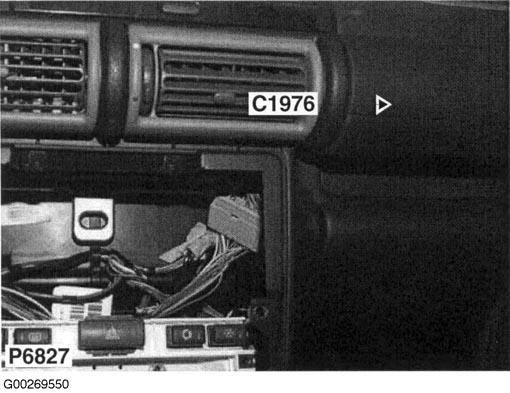

Fig 103: Right Side Of Dash

G00269550

Courtesy of LAND ROVER NORTH AMERICA, INC.

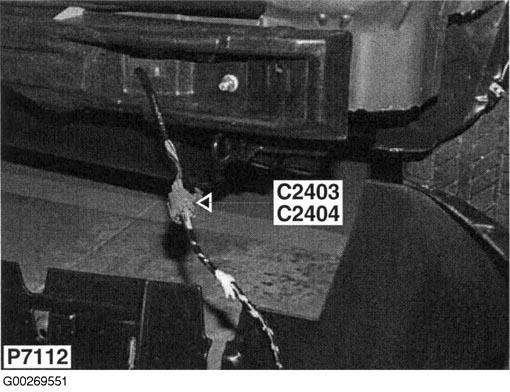

Fig 104: Behind Rear Bumper

G00269551

Courtesy of LAND ROVER NORTH AMERICA, INC.

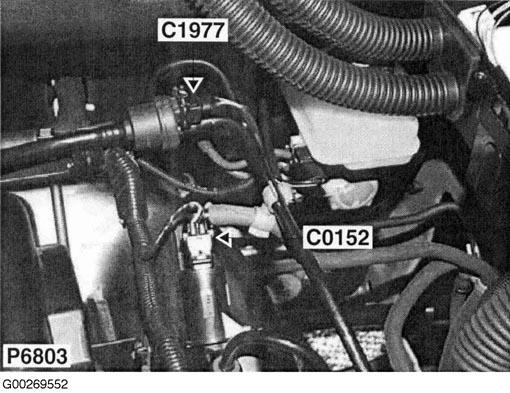

Fig 105: Rear Of Engine Compartment

G00269552

Courtesy of LAND ROVER NORTH AMERICA, INC.
